Connecting the Cables

For Concealed wiring; first draw out sufficient length of the
•
cables from the hole you have made on the mounting
surface.

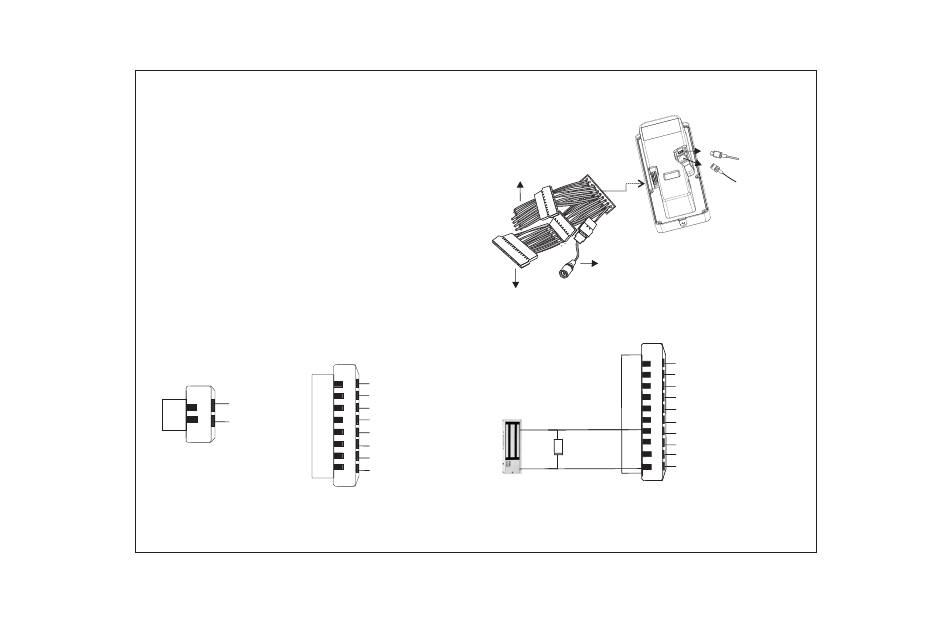

Connect the Power, External Reader and EM Lock cable
•
assemblies to the 20 PIN connector affixed on the back side
of the ARGO Unit.
Connect the Ethernet Cable to the LAN port.
•
Connect the micro USB port to the Printer or Broadband
•
dongle. If required, user a micro USB cable extender.
Power
1
GND- Black
CN1
2
+12VDC IN- Red
CN2
21
EM Lock Cable
External Reader Cable
(8 Pin to 15 Pin connector)
External Reader
1
DATA 0- Green
2
DATA 1- White
3
BEEPER- Yellow
4 GREEN LED- Orange
5 GND- Black
6 RS 232 RX- Pink
7 +12V RDR- Red
8
RS 232 TX- Grey
EM Lock
F
Micro USB
connector cable
G
Ethernet Cable
Power
Cable
1 GND- Black
2 GND- Black
3 GND LOCK- Black
4 EXIT SWITCH -White
5 +12V LOCK- Red
CN3
6
GND- Black
7
LOCK RLY NO -Yellow
8
DOOR STATUS- White
Diode
9 LOCK RLY NC-Dark Blue
10
LOCK RLY COM -Light Brown
