Figure 12
Mounting Slots
Mounting
Mounting
Screw hole
Screw

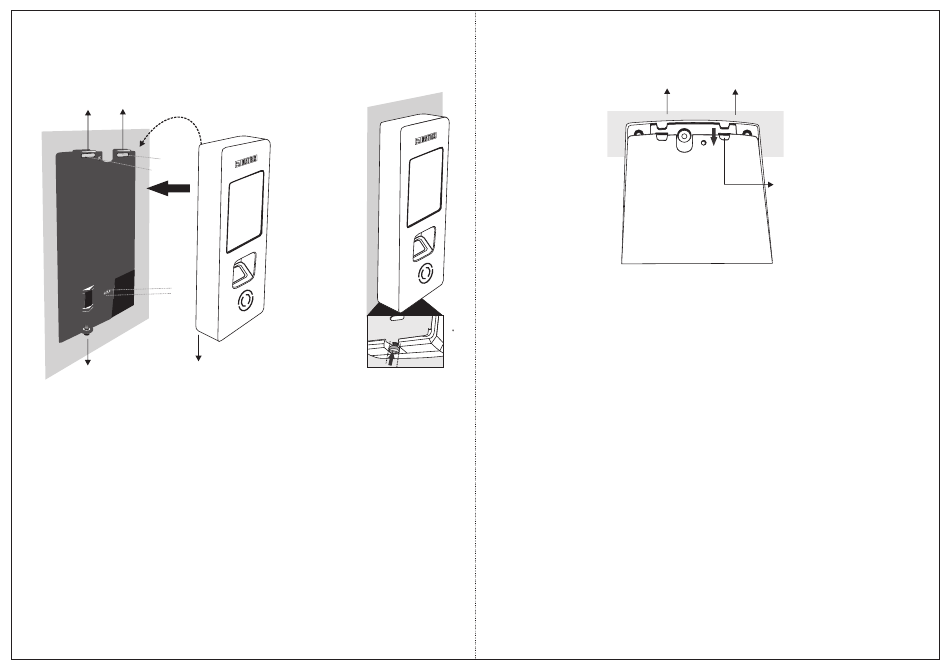

Step 5: Fix the Mounting Hook of the door by sliding the back side
of VEGA door into the Mounting Slot of mounting plate.
Insert the mounting screw into the mounting screw hole at the
•
bottom of the device.
Tighten screws at the bottom as shown in Figure 13.
•
11
Mounting Hooks
Figure 13
Mounting Hooks

Connecting the Cables

•
Make the electrical connections of Power, Exit Switch, EM Lock,
Ethernet, AUX I/O Connector and External Reader as per
respective wire color code mappings shown in respective
connectors.
**For Concealed wiring; first draw out sufficient length of the
cables from the rectangular hole you have made on the mounting
surface.
Mounting
Slot
12
