Installation Instruction: Flush Mounting

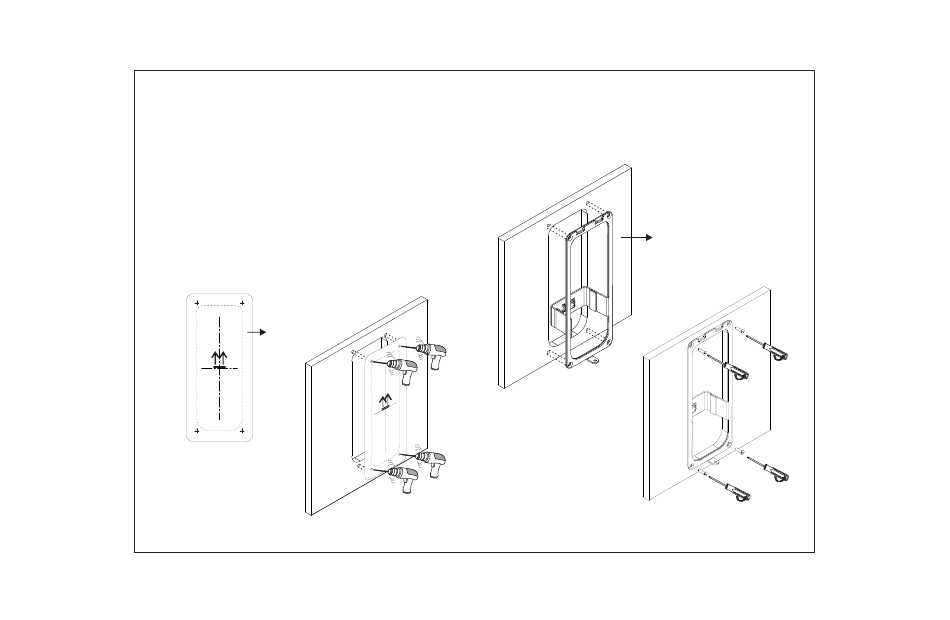

Step 1: Place the Flush Mounting Template on the desired
installation surface.
Mark the area along the dotted line and trace the four screw
•
holes (say A,B,C,D) on the wall as shown in Figure 7.
Now drill the dotted line area and four screw holes (say
•
A,B,C,D) on the wall as illustrated in Figure 8.
Figure 7
A B
Flush Mounting
Template
C D
15
Step 2: Place and fix the Flush Mounting plate with the supplied
screws. Tighten the screws with screw driver.
Figure 8
B
A
D
C
Flush Mounting
Plate
