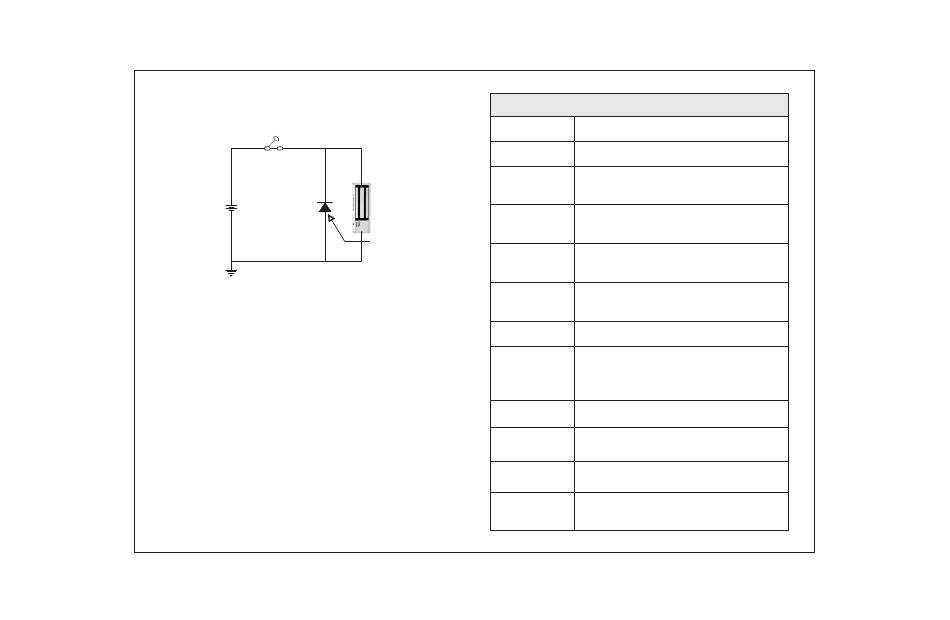

Diode Connection for Back EMF Protection
Relay Relay
Pin 1 Pin 2
Cathode
+
Power
-
Anode
GND
Connect the Overswing diode in reverse biased condition
•
parallel to the EM Lock for better lifetime contact and to
protect the device from inductive kickback.
Assigning IP Address and Other Network Settings
Open the Web browser in your computer.
•
Enter the IP Address of the COSEC ARGO,
•
"default: http://192.168.50.1" in the address bar of the browser
•
and press the Enter key on your computer keyboard.
When prompted, enter the login credentials for the Door.
•
Default Username: Admin
Default Password: 1234
23
Event Buffer
Input Power
Reader Power
Output
EM
Lock
Reader Interface
Type
Reverse biased
Diode
Door Lock
Relay
Door Lock
Power
Built In PoE
Display
User Capacity
Communication
Port
Built In WiFi
Built In
Bluetooth
Technical Specification
5,00,000
12V DC @2A and PoE
Max 12V DC @0.250 A
RS 232 and Wiegand
Max 30V DC @2A
Internal 12V DC @0.5A in PoE supply
mode and 12V DC @1A in Adapter
PoE (IEEE 802.3 af)
3.5 inch Capacitive IPS touch screen
with Gorilla glass 3.0;
Resolution: 480x320 pixels (HVGA)
50,000
Ethernet and WiFi
Yes (IEEE 802.11 b/g/n)
Yes
