Assemble the wall shelf

Tip! You can use the letters on the brackets to identify which bracket should be placed
on the left of the back plate and which bracket should be placed on the right. (figure 1)

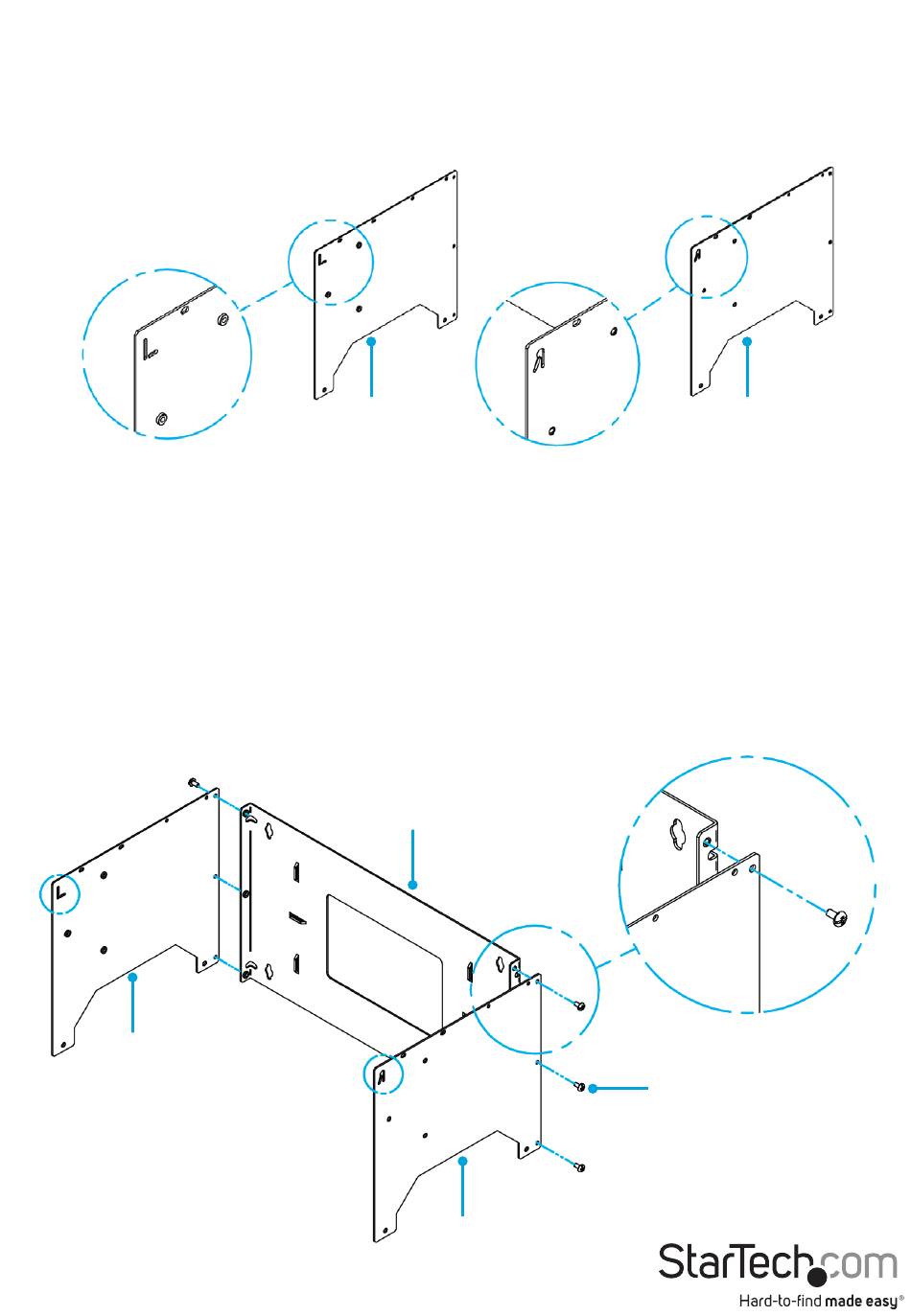

figure 1
1. Line up the three assembly holes on the left bracket (3) with the assembly holes on
the left side of the back plate (1).
2. Insert three of the 10-32 mounting screws (7) through the holes on the left bracket
and into the back plate, and tighten the screws in place.
3. Line up the three assembly holes on the right bracket (2) with the assembly holes
on the right side of the back plate.
4. Insert three of the 10-32 mounting screws through the holes on the right bracket
and into the back plate, and tighten the screws in place. (figure 2)
figure 2
Left bracket
Instruction manual
Left bracket
Back plate
Right bracket
4
Right bracket
10-32 mounting screws
