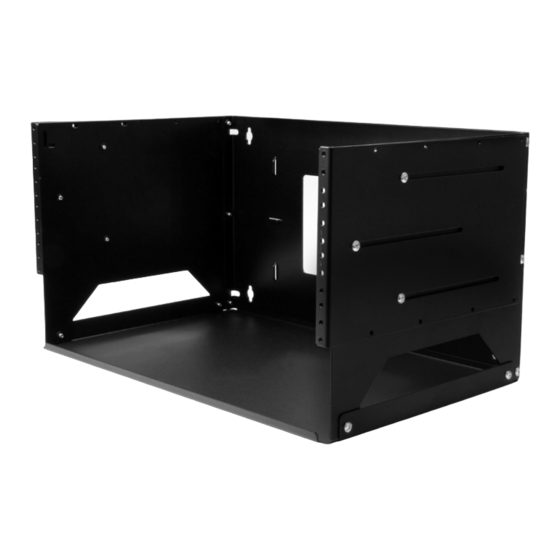

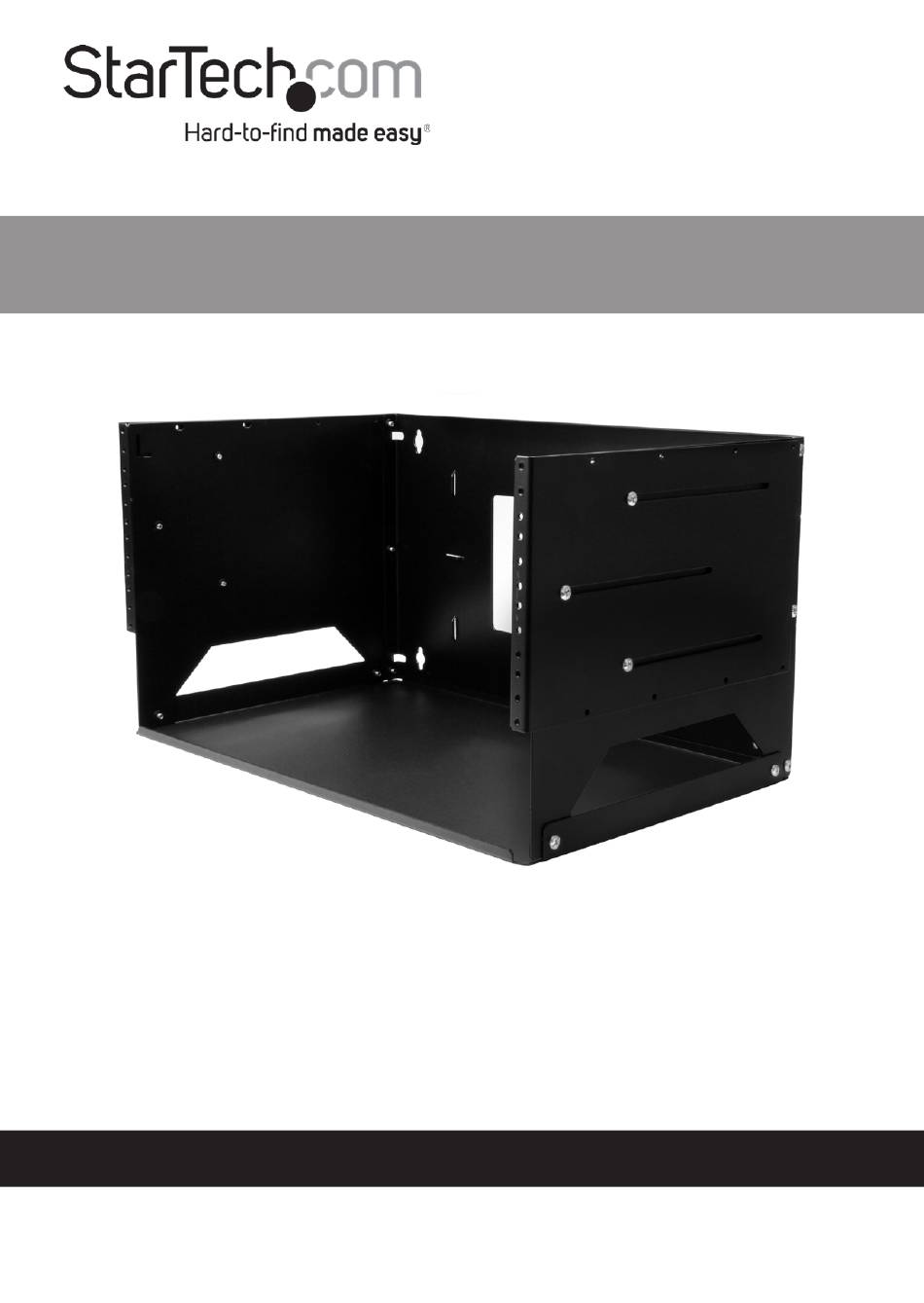

- Page 1 Wall-Mount Rack with Built-in Shelf - 4U Actual product may vary from photos User Manual SKU#: WALLSHELF4U For the latest information and specifications visit www.startech.com/WALLSHELF4U Manual Revision: 05/29/2020...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Warning Statements
Il mancato rispetto delle istruzioni potrebbe causare danni a persone o proprietà. La struttura muraria deve essere in grado di supportare un peso almeno quattro volte superiore a quello dell’apparecchiatura montata. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 Personen oder Schäden an Geräten führen. Dieses Produkt ist für folgendes Gewicht geeignet: 34 kg. Das Produkt darf nicht bedient werden, wenn Teile fehlen oder beschädigt sind. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 5 Varningsmeddelanden Se till att du monterar produkten i enlighet med instruktionerna. Om du inte gör det kan skada på person eller egendom uppstå. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 à estrutura de parede que está a usar, contacte um profissional de construção para fazer a instalação em parede ou para fornecer instruções de montagem específicas para a sua estrutura de parede. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 8: Table Of Contents
Side View ..............................9 Front View ..............................10 Product Information ................11 Package Contents ............................. 11 Requirements ............................. 13 Assembling the Wall Mount Rack ............13 Mounting the Wall Mount Rack ............17 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Diagram
Product Diagram Front View Mounting Holes Back Plate Adjustment Rail Left Bracket Shelf Bracket Right Bracket To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Dimensions
Product Dimensions Side View To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Front View
Front View To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Product Information
Product Information Package Contents Back Plate Right Bracket Qty: 1 Qty: 1 Left Bracket Shelf Bracket Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 13 Adjustable Rails 10-32 Assembly Screws Qty: 2 Qty: 16 10-32 mounting screws Mounting Template Qty: 24 Qty: 1 Wood Screws Qty: 6 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 14: Requirements
Insert three of the 10-32 Assembly Screws through the Assembly Holes on the Right Bracket and into the Back Plate, Using the Phillips Head Screwdriver, tighten the screws in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 15 Place the Shelf Bracket over the bottom edges of the Left Bracket, Right Bracket, and Back Plate, making sure that the Assembly Holes line up. Installing the Shelf Bracket To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 16 Brackets, and insert three or the 10-32 Assembly Screws through the Slots on each of the Adjustable Rails and into the Installation Holes on the Left and Right Brackets. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 17 Attaching the Adjustable Rails Note: The Adjustable Rails feature three slots that you can use to extend or retract the rails. Adjusting the Adjustable Rails To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 18: Mounting The Wall Mount Rack
Note: The Wall Mount Rack has four mounting holes and you must use all four of the mounting holes to properly secure the Wall Mount Rack to the wall. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 19 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
