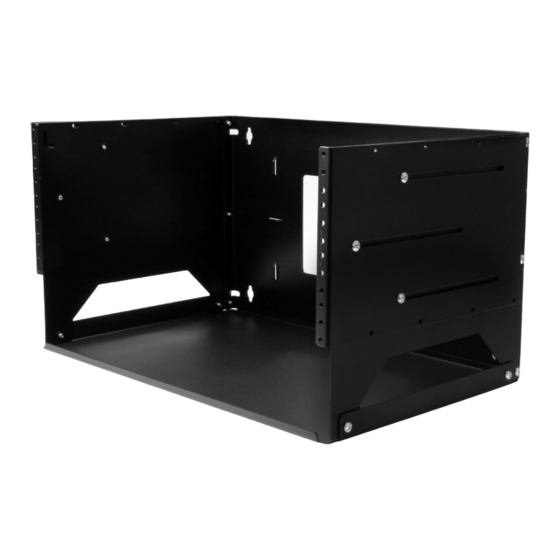

Wall-Mount Rack with Built-in Shelf
- 4U
WALLSHELF4U
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/WALLSHELF4U.
Manual Revision: 08/22/2016
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com WALLSHELF4U
Summary of Contents for StarTech.com WALLSHELF4U
- Page 1 Wall-Mount Rack with Built-in Shelf - 4U WALLSHELF4U *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 Warning statements Waarschuwingen Make sure to assemble this product according to the instructions. Failure to do so might result in personal Zorg dat dit product volgens de instructies in elkaar wordt gezet. Indien dit niet goed gebeurt kan injury or property damage. lichamelijk letsel of materiële schade ontstaan.
-
Page 3: Table Of Contents
Table of Contents Warnings ..............................i Introduction ....................1 Product dimensions ..........................1 Product diagram ............................2 Installation requirements ........................2 Package contents ............................3 Assemble the wall shelf .................4 Mount the wall shelf ................7 Technical support ...................8 Warranty information ................8 Instruction manual... -
Page 4: Introduction
Introduction The WALLSHELF4U provides an easy and convenient way to mount your server and network devices. The WALLSHELF4U also features a built-in shelf that you can use to store equipment. Product dimensions Right-side view Front view Instruction manual... -
Page 5: Product Diagram
Product diagram Mounting hole Back plate Adjustable rail Adjustable rail Left bracket Right bracket Shelf bracket Mounting hole Installation requirements • Screwdriver • Level Installation requirements are subject to change. For the latest requirements, please visit www.StarTech.com/WALLSHELF4U. Instruction manual... -
Page 6: Package Contents
Package contents Back plate Right bracket Left bracket Qty: One Qty: One Qty: One Shelf bracket Adjustable rails 10-32 x 3/8 screws Qty: One Qty: Two Qty: Sixteen 10-32 mounting screws Mounting template Wood screws Qty: Twelve Qty: One Qty: Six Instruction manual Qty: One Instruction manual... -
Page 7: Assemble The Wall Shelf
Assemble the wall shelf Tip! You can use the letters on the brackets to identify which bracket should be placed on the left of the back plate and which bracket should be placed on the right. (figure 1) figure 1 Left bracket Right bracket 1. - Page 8 5. Place the shelf bracket (4) over the bottom edges of the left bracket, right bracket, and back plate, making sure that the assembly holes line up. (figure 3) figure 3 Shelf bracket 6. Insert four of the 10-32 x 3/8 screws (6) through the holes on the shelf bracket and into the left and right brackets and back plate, and tighten them in place.
- Page 9 Note: The adjustable rails each feature three slots that you can use to extend or retract the rails and attach them in the position that works best for your setup. (figure 5) figure 5 Adjustable rail Bracket 7. Position the adjustable rails (5) against the left and right brackets, and insert three of the 10-32 x 3/8 screws (6) through the slots on each of the adjustable rails and into the installation holes on the left and right bracket.
-
Page 10: Mount The Wall Shelf
Mount the wall shelf Warning! Before you mount the wall shelf, make sure that the mounting surface is sturdy enough to support the weight of the WALLSHELF4U plus the weight of the equipment that you intend to install into the rack. -
Page 11: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
