Summary of Contents for DAD ARK15SA

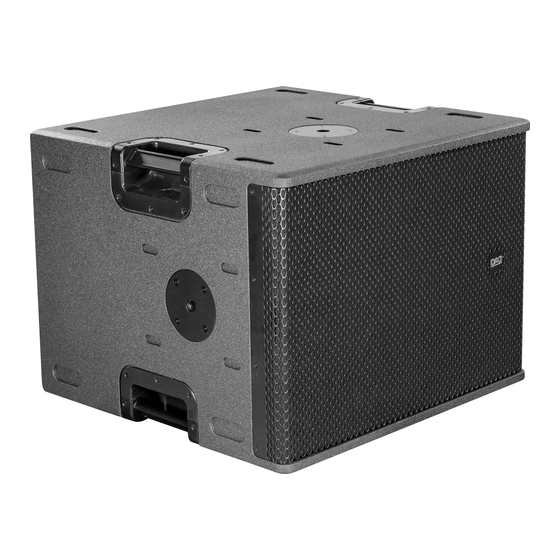

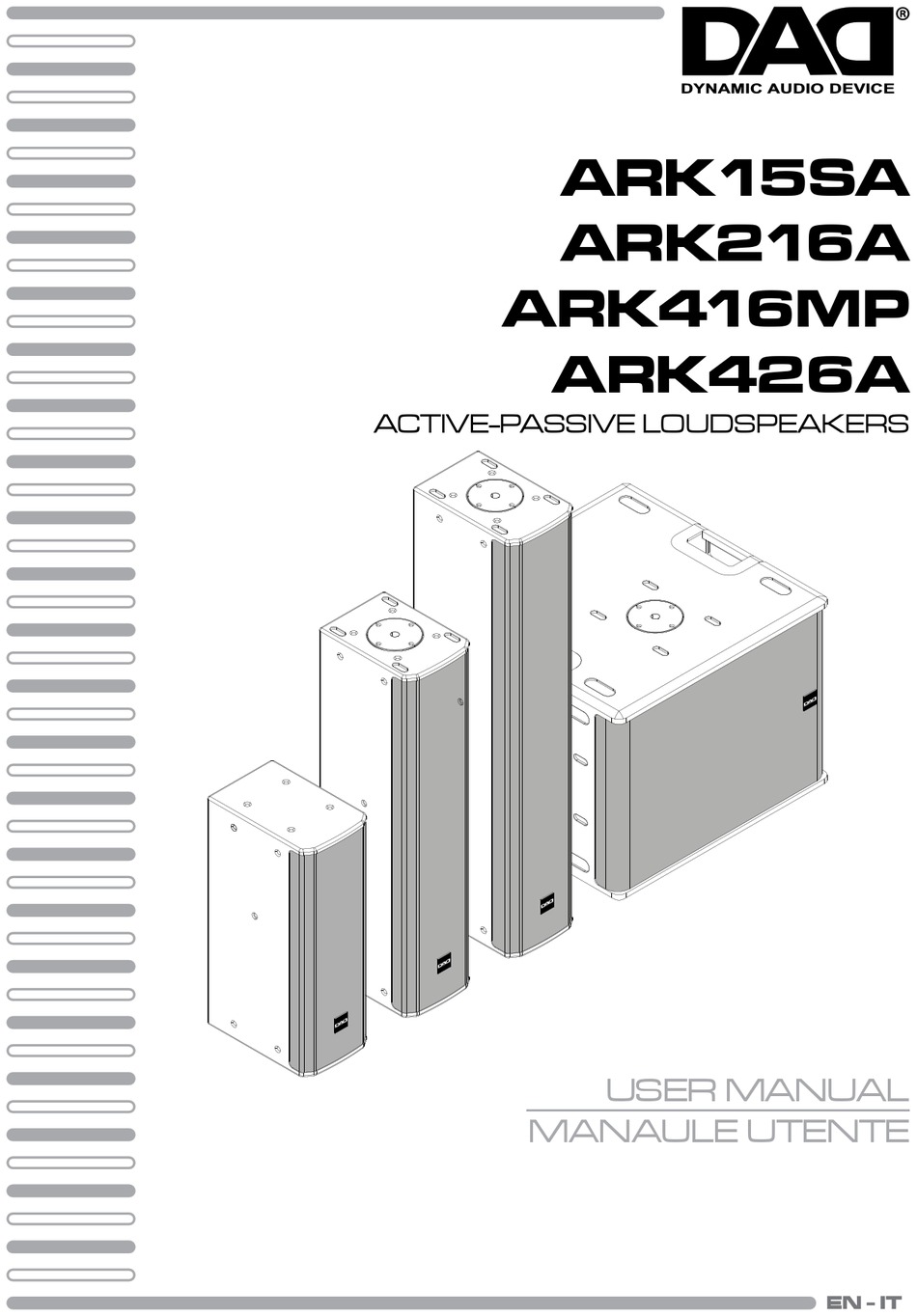

  • Page 1 DYNAMIC AUDIO DEVICE ARK15SA ARK216A ARK416MP ARK426A ACTIVE-PASSIVE LOUDSPEAKERS USER MANUAL MANAULE UTENTE EN - IT...
  • Page 2 Music & Lights S.r.l. si riserva ogni diritto di elaborazione in All rights reserved by Music & Lights S.r.l. No part of this qualsiasi forma delle presenti istruzioni per l’uso. instruction manual may be La riproduzione - anche parziale - per propri scopi commerciali reproduced in any form or by any means for any commercial è...
  • Page 3: Table Of Contents

    2. 3 Possible configurations 2. 3 Possible configurations 3 Connessioni e controlli 3 Connections and controls 3. 1 Pannello posteriore ARK15SA 3. 1 Pannello posteriore ARK15SA 3. 1 ARK15SA rear panel 3. 1 ARK15SA rear panel 3. 2 Pannello posteriore ARK216A 3.
  • Page 4: Sicurezza

    ARK15SA-216A-416MP-426A ATTENZIONE! WARNING! Before carrying out any operations with the unit, Prima di effettuare qualsiasi operazione con carefully read this instruction manual, and keep it l’unità, leggere con attenzione questo manuale with cure for future reference. conservarlo accuratamente riferimenti It contains important information about the futuri.
  • Page 5: Attenzioni E Precauzioni Per L'installazione

    ARK15SA-216A-416MP-426A Warnings and installation precautions Attenzioni e precauzioni per l’installazione • This product in combination with ampli- • Questo prodotto da solo oppure in combina- zione con amplificatore può essere capace di fier, may be capable of producing dangerous produrre livelli sonori che possono causare sound levels that could cause permanent hearing loss.
  • Page 6 ARK15SA-216A-416MP-426A rottura di uno di essi, l’altro sarà in grado suspension for hanging speakers (for example di sostenere il sistema. one chain); always use at least two of them - Verificare sempre che la struttura cui i and make sure they are sufficiently strong. So, diffusori sono sospesi sia in grado di sop- if one fails the other will sustain the load.
  • Page 7: Introduzione

    The DAD dimio. Il logo DAD presente sulla griglia può essere logo on the grille can be rotated quickly to perform ruotato rapidamente per l’installazione sia in verti-...
  • Page 8 ARK15SA-216A-416MP-426A CONNETTORI INGRESSI USCITE INPUT/OUTPUT CONNECTORS • Segnale d’ingresso: XLR IN/OUT • Input signal: XLR IN/OUT • Segnale d’uscita: 2 x 4 poli • Output signal: 2 x 4 pole • Connessioni di alimentazione: powerCON IN/ • Power connection: powerCON IN/OUT CABINET CONSTRUCTION •...
  • Page 9: Ark216A

    ARK15SA-216A-416MP-426A 1.2 ARK216A 1.2 ARK216A DESCRIZIONE DESCRIPTION Modulo a colonna attivo bi-amplificato in classe D, Active column loudspeaker, D-class bi-amp, 2-way 2 vie 350W+50W, 124db SPL. 350W+50W, 124dB SPL CARATTERISTICHE FEATURES • Basse frequenze: 2x6 ‘’ woofer in neodimio 1.5’’...
  • Page 10 ARK15SA-216A-416MP-426A COSTRUZIONE DEL CABINET CABINET CONSTRUCTION • Materiale cabinet: 12mm multistrato di betulla • Cabinet material: 12mm birchplywood • Sistema di sospensione: supporto per stativo 35 • Sospension system: 35 mm mounting pole • Handles: 1 rear • Maniglie: 1 posteriore PHYSICAL •...
  • Page 11: Ark416Mp

    Il diffusore ARK416MP può essere abbinato al The ARK416MP speaker can be combined with the subwoofer ARK15SA. Il subwoofer dispone di un’u- ARK15SA subwoofer. The subwoofer has a 700 W am- scita amplificata da 700 W. ARK416MP e ARK15SA plified output. ARK416MP and ARK15SA constitute a costituiscono un potente sistema portatile a colon- powerful portable system with amplified column. ...
  • Page 12 ARK15SA-216A-416MP-426A SPECIFICHE ACUSTICHE ACOUSTICAL SPECIFICATIONS • Sensibilità: 98dB @1W/1m (campo libero) • Sensitivity: 98dB @1W/1m (free field) • Impedenza: 8 Ohm • Impedance: 8 Ohm • SPL cont/peak: 123/129dB @1m (campo libero) • SPL cont/peak: 123/129dB @1m (free field) • Frequency response: 80-18000Hz (±3dB) •...
  • Page 13: Ark426A

    ARK15SA-216A-416MP-426A 1.4 ARK426A 1.4 ARK426A DESCRIZIONE DESCRIPTION Modulo colonna attivo bi-amplifica- Active column loudspeaker, D-class to in classe D, 2 vie 700W+350W, 131db SPL amp, 2-way 700W+350W, 129dB Il diffusore ARK426A rappresenta il top di gamma The ARK426A speaker represents the top of the nel segmento dei vertical array compatti.
  • Page 14 ARK15SA-216A-416MP-426A ELETTRONICHE ELECTRONICS • Amplificazione: digitale • Amplifier: digital • Sensibilita di ingresso: +4 dBu (1,228Vrms) varia- • Input sensitivity: 4 dBu (1,228Vrms) adjustable bile • Protection: RMS limiter, fast limiter, temp. • Protezioni: Limit. RMS, limit. veloce temp. • User controls: mic, line, bass boost •...
  • Page 15: Installazione

    ARK15SA-216A-416MP-426A - 2 - INSTALLAZIONE - 2 - INSTALLATION Attenzione! L’installazione deve avvenire sotto Warning! All installation jobs are carried out la responsabilità dell’installatore, nel rispetto di under the solo responsibility of the person the tutte le precauzioni e le norme di sicurezza appli- actual work and must be done in full compliance cabili nel caso specifico.
  • Page 16: Installazione Con Staffa Arkub1

    ARK15SA-216A-416MP-426A 2.2 INSTALLAZIONE CON STAFFA OPZIONALE 2.2 INSTALLATION WITH OPTIONAL BRACKET ARKUB1 (ARK216A - ARK416MP - ARK426A) ARKUB1 (ARK216A - ARK416MP - ARK426A) Step 1 Step 2 Step 3 Fig.6 - Installation with optional bracket ARKUB1...
  • Page 17: Configurazioni Possibili

    ARK15SA-216A-416MP-426A 2.3 COMBINAZIONI POSSIBILI 2.3 POSSIBLE COMBINATION ARK416MP ARK416MP ARK416MP ARKM20POLE ARKM20POLE ARK416MP ARK416MP SM20 ARKM20POLE ARK15SA ARKM20POLE ARK15SA ARK15SA ARK15SA ARKBASIC1 ARKBASIC2 ARKEXTENDED Fig.7 - Configurations...
  • Page 18 ARK15SA-216A-416MP-426A ARK216A ARK216A ARK426A ARKM20 POLE SM20 SM20 BX12SA BX12SA BX15SA BX12SA ARKPRO1 ARKPRO2 ARKPRO3 Fig.8 - Configurations...
  • Page 19 ARK15SA-216A-416MP-426A ARK426A ARK426A ARKM20POLE SM2040 BX15SA BX15SA BX15SA ARKPRO4 ARKPRO5 ARK426A ARKM20POLE ARK426A ARK426A SM2040 ARKM20POLE BX18SA BX18SA ARKPRO6 ARKPRO7 Fig.9 - Configurations...
  • Page 20: Connessioni E Controlli

    ARK15SA-216A-416MP-426A - 3 - CONNESSIONI E CONTROLLI - 3 - CONNECTIONS AND CONTROLS 3.1 PANNELLO POSTERIORE ARK15SA 3.1 ARK15SA REAR PANEL Ω 1 5 S A Fig.10...
  • Page 21: Pannello Posteriore Ark216A

    ARK15SA-216A-416MP-426A 3.2 PANNELLO POSTERIORE ARK216A 3.2 ARK216A REAR PANEL 2 1 6 A Fig.11...
  • Page 22: Pannello Posteriore Ark426A

    ARK15SA-216A-416MP-426A 3.3 PANNELLO POSTERIORE ARK426A 3.3 ARK426A REAR PANEL 4 2 6 A Fig.12...
  • Page 23 ARK15SA-216A-416MP-426A 1. CLIP - LED accesso quando viene raggiunta 1. CLIP - Clip indicator. If this LED keeps la soglia di saturazione nello stadio di illuminating, turn down signal level. ACTIVE amplificazione. ACTIVE - LED acceso quando - This LED is ON when the loudspeaker is il diffusore è...
  • Page 24: Pannello Posteriore Ark416Mp

    ARK15SA-216A-416MP-426A 3.4 PANNELLO POSTERIORE DIFFUSORE PASSI- 3.4 PASSIVE LOUDSPEAKER REAR PANEL VO (ARK416MP) (ARK416MP) S/N: Fig.13 1/2 - SIGNAL CONNECTOR - Connettore 4 poli 1/2 - SIGNAL CONNECTOR - 4p in/out connector, in/ out per l’ingresso del segnale audio amplifica-...
  • Page 25: Specifiche Tecniche

    ARK15SA-216A-416MP-426A SPECIFICHE TECNICHE - TECHNICAL SPECIFICATION ARK15SA ARK216A ARK416MP ARK426A 2-way active column 2.5 way passive column 2-way active column System type Active subwoofer module module module Built-in amp 700+700 W /4Ohm 350/50 W/4Ohm 700/350 W-4/8Ohm Built-in DSP 28/56 bit...
  • Page 26: Cavi Di Collegamento

    ARK15SA-216A-416MP-426A - 4 - CAVI DI COLLEGAMENTO - 4 - CONNECTION CABLES 4.1 COLLEGAMENTI DI INGRESSO 4.1 INPUT CONNECTION Per il collegamento tra uscite del mixer ed in- To connect the mixer outputs to the amplifiers gressi degli amplificatori utilizzate di preferenza inputs, make sure to always use balanced signal “cavi segnale bilanciati”.
  • Page 27: Connettori

    ARK15SA-216A-416MP-426A - 5 - CONNETTORI - 5 - CONNECTORS 5.1 CONNETTORI DI SEGNALE AUDIO 5.1 AUDIO SIGNAL CONNECTORS cold ground INPUT (ingresso) INPUT XLR bilanciato maschio Balanced male XLR ground cold OUTPUT (uscita) OUTPUT XLR bilanciato femmina Balanced female XLR...
  • Page 28: Assenza Di Alimentazione

    ARK15SA-216A-416MP-426A - 6 - RISOLUZIONE DEI PROBLEMI - 6 - TROUBLESHOOTING Assenza di alimentazione No Power • Accertarsi che ci sia effettivamente tensione • Make sure the mains AC outlet is live (check sulla presa di corrente (controllare con un te- with a tester or a lamp).
  • Page 29: Brevi Cenni Di Acustica

    ARK15SA-216A-416MP-426A - 7 - BREVI CENNI DI ACUSTICA - 7 - BRIEF NOTES ON ACOUSTIC La diffusione del suono in un ambiente ha lo Diffusing sound into an environment means to scopo di soddisfare l’ascolto da parte di un certo distribute sound signals to a given audience and numero di persone ed è...
  • Page 30 ARK15SA-216A-416MP-426A rimanenti due terminali rimasti scollegati. I loro ance value corresponds to the amplifier output valori si sommano: per esempio, due altoparlan- impedance. ti da 8 Ohm in serie danno 16 Ohm. There are 2 possible connection systems: serial Quando gli altoparlanti sono collegati in paral- or parallel mode.
  • Page 31 ARK15SA-216A-416MP-426A tore. La potenza di breve termine IEC268-5 è la speaker with a power well below its AES appli- potenza che il diffusore può sopportare per un cable power rating if it is required to reproduce brevissimo intervallo di tempo. Corrisponde a...
  • Page 32 ARK15SA-216A-416MP-426A Come evitare il clipping Glossary Il metodo più semplice sta nel controllare i livel- SPL: Sound pressure level is a logarithmic meas- li della catena del segnale. Partendo dal canale ure of the rms sound pressure of a sound rela- del mixer bisogna impostare i controlli (gain ed tive to a reference value.
  • Page 36 MUSIC & LIGHTS S.r.l. - Phone +39 0771 72190 - www.musiclights.it...
