Summary of Contents for DAD LIVEX Series

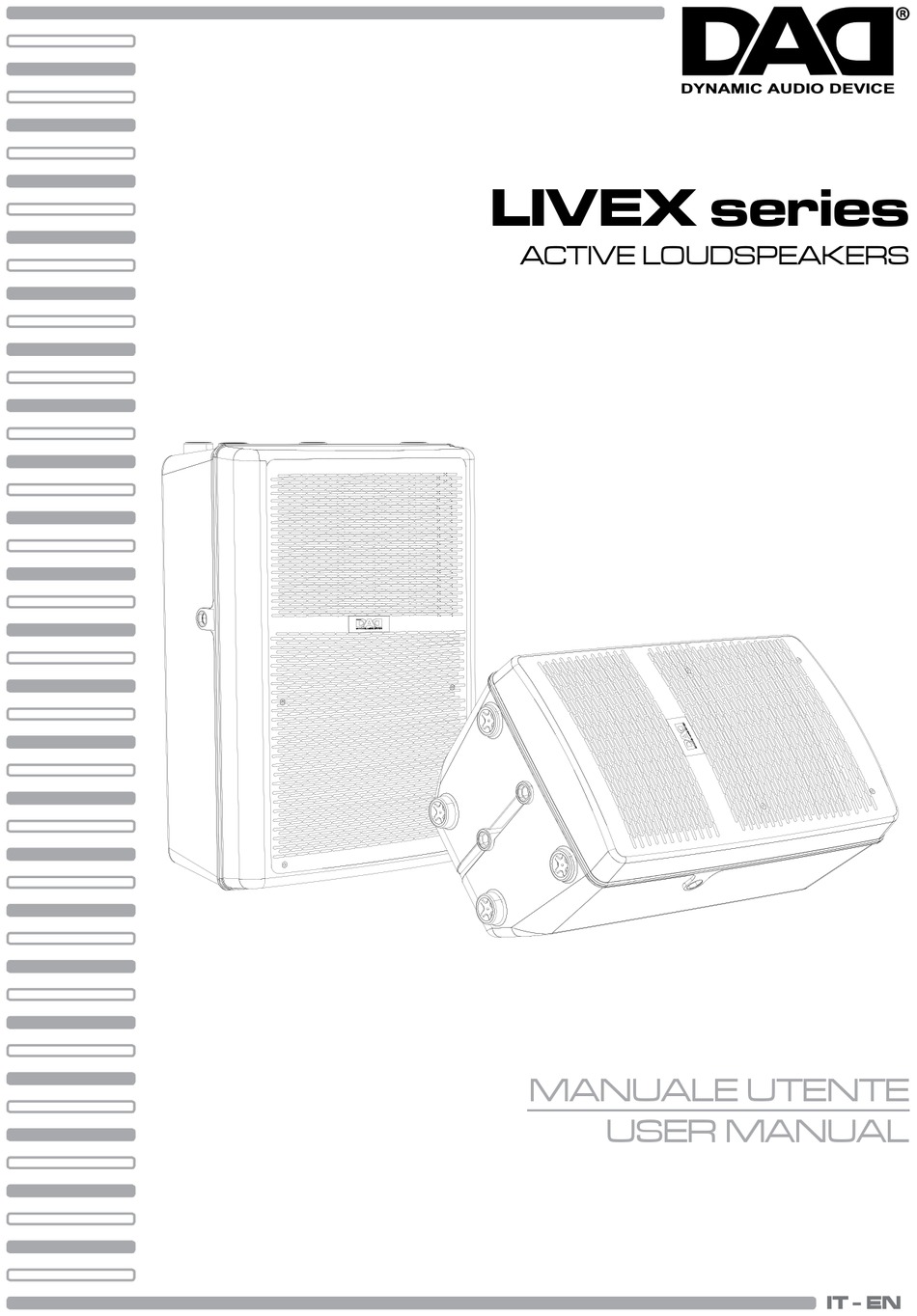

  • Page 1 DYNAMIC AUDIO DEVICE LIVEX series ACTIVE LOUDSPEAKERS MANUALE UTENTE USER MANUAL IT - EN...
  • Page 2 Music & Lights S.r.l. si riserva ogni diritto di elaborazione in All rights reserved by Music & Lights S.r.l. No part of this qualsiasi forma delle presenti istruzioni per l’uso. instruction manual may be La riproduzione - anche parziale - per propri scopi commerciali reproduced in any form or by any means for any commercial è...
  • Page 3: Table Of Contents

    LIVEX series INDICE CONTENTS INDICE CONTENTS Sicurezza Safety Avvertenze generali General instructions Attenzioni e precauzioni per l’installazione Warnings and installation precautions 1 Introduzione 1 Introduction 1. 1 Descrizione 1. 1 Description 1. 2 Specifiche tecniche 1. 2 Technical specifications 2 Installazione 2 Installation 2.
  • Page 4: Sicurezza

    LIVEX series ATTENZIONE! WARNING! Before carrying out any operations with the unit, Prima di effettuare qualsiasi operazione con carefully read this instruction manual, and keep it l’unità, leggere con attenzione questo manuale with cure for future reference. conservarlo accuratamente riferimenti It contains important information about the futuri.
  • Page 5: Attenzioni E Precauzioni Per L'installazione

    LIVEX series Warnings and installation precautions Attenzioni e precauzioni per l’installazione • This product in combination with ampli- • Questo prodotto da solo oppure in combina- zione con amplificatore può essere capace di fier, may be capable of producing dangerous...
  • Page 6 LIVEX series rottura di uno di essi, l’altro sarà in grado suspension for hanging speakers (for example di sostenere il sistema. one chain); always use at least two of them - Verificare sempre che la struttura cui i and make sure they are sufficiently strong. So, diffusori sono sospesi sia in grado di sop- if one fails the other will sustain the load.
  • Page 7: Introduzione

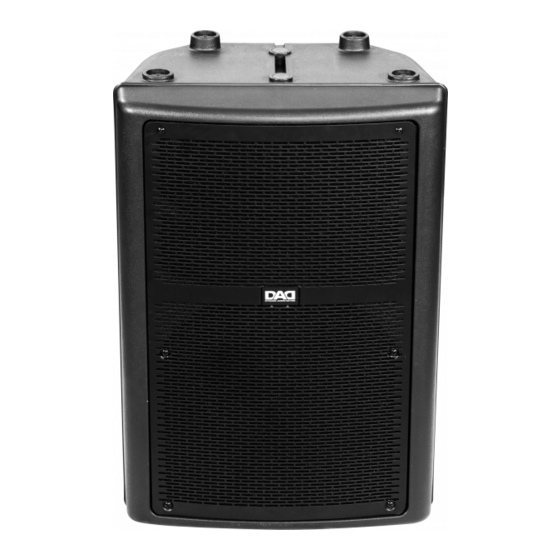

    - 1 - INTRODUCTION 1.1 DESCRIPTION 1.1 DESCRIZIONE DAD LIVEX series is made up of loudspeakers La serie LIVEX DAD si compone di diffusori acusti- made in polypropylene and equipped with 8”, 10”, ci in polipropilene con altoparlanti da 8”, 10”, 12”, 12”, 15”...
  • Page 8: Specifiche Tecniche

    LIVEX series 1.2 SPECIFICHE TECNICHE 1.2 TECHNICAL SPECIFICATIONS LIVEX08A LIVEX08A Diffusore attivo bi-amplificato in classe AB, 2 vie Active loudspeakers, AB class bi-amp, 2-way 100W+50W, 117db SPL. 100W+50W, 117db SPL. DIFFUSORI LOUDSPEAKERS • Sistema: attivo 2 vie • System type: active 2 way...
  • Page 9 LIVEX series LIVEX10A LIVEX10A Diffusore attivo bi-amplificato in classe D+AB, 2 vie Active loudspeakers, D+AB class bi-amp, 2-way 350W+50W, 123db SPL. 350W+50W, 123db SPL. DIFFUSORI LOUDSPEAKERS • Sistema: attivo 2 vie • System type: active 2 way COMPONENTI COMPONENTS • Basse frequenze: 10’’ woofer/2.6’’v.c.
  • Page 10 LIVEX series LIVEX12A LIVEX12A Diffusore attivo bi-amplificato in classe D+AB, 2 vie Active loudspeakers, D+AB class bi-amp, 2-way 450W+50W, 126db SPL. 450W+50W, 126db SPL. DIFFUSORI LOUDSPEAKERS • Sistema: attivo 2 vie • System type: active 2 way COMPONENTI COMPONENTS • Basse frequenze: 12’’ neodymium woofer / 3’’ v.c.
  • Page 11 LIVEX series LIVEX15A LIVEX15A Diffusore attivo bi-amplificato in classe D+AB, 2 vie Active loudspeakers, D+AB class bi-amp, 2-way 450W+50W, 128db SPL. 450W+50W, 128db SPL. DIFFUSORI LOUDSPEAKERS • Sistema: attivo 2 vie • System type: active 2 way COMPONENTI COMPONENTS • Basse frequenze: 15’’ neodymium woofer / 3’’ v.c.
  • Page 12: Installazione

    LIVEX series - 2 - INSTALLAZIONE - 2 - INSTALLATION Per aumentare la zona di copertura e l’SPL mas- To increase coverage and maximum SPL value it simo, è possibile affiancare più diffusori in modo is advisable to place more cabinets side by side da formare un array.
  • Page 13 LIVEX series LIVEX8A 30˚ 40˚ Fig.6 LOUDSPEAKERS LOUDSPEAKERS POSITION HORN POSITION (H) TOTAL COVERAGE (HxV) 30° 90° 120° x 60° 40° 90° 130° x 60° LIVEX8A 30° 60° 90° x 90° 40° 60° 100° x 90° LIVEX10A - 12A - 15A 30˚...
  • Page 14: Installazione A Muro

    LIVEX series 2.2 INSTALLAZIONE A MURO 2.2 WALL MOUNTING • Selezionare con cura l’area dove installare i • Take care when choosing the place for the diffusori. loudspeaker installation. • Assicurarsi che la struttura sia adeguata a sop- • Make sure that the structure is adequate to portare il peso del diffusore.
  • Page 15: Connections And Controls

    LIVEX series - 3 - CONNESSIONI E CONTROLLI - 3 - CONNECTIONS AND CONTROLS 3.1 PANNELLO DI CONNESSIONE LIVEX08A 3.1 LIVEX08A PANEL CONNECTION Fig.9...
  • Page 16 LIVEX series CONNESSIONI CONNECTIONS MIC IN - Presa Jack 6,3mm per il collegamento in MIC IN - Jack 6,3mm socket for input connection ingresso di segnali microfonici. of microphone signals. LINE IN - Presa XLR 3p per il collegamento in in- LINE IN - XLR 3p socket for input connection of gresso di un segnale preamplificato.
  • Page 17: Pannello Diffusori - Livex10A-12A-15A

    LIVEX series 3.2 PANNELLO DI CONNESSIONE LIVEX10A - 3.2 LIVEX10A - 12A - 15A PANEL CONNECTION 12A - 15A CLIP AC OUTPUT AC INPUT POWER 220V ~240V/50Hz 220V ~240V/50Hz MAX OUTPUT 16A POWER CONSUMPTION 4A DAD is a registered trademark Fig.10...
  • Page 18 LIVEX series CONNESSIONI CONNECTIONS MIC VOL - MIC IN - Presa Jack 6,3mm per il colle- MIC VOL - MIC IN - 6.3mm jack for the connection gamento in ingresso di segnali microfonici. of microphone signals. LINE INPUT - presa XLR 3p per il collegamento in LINE INPUT - 3p XLR socket for the input ingresso di un segnale preamplificato.
  • Page 19: Specifiche Tecniche

    LIVEX series SPECIFICHE TECNICHE - TECHNICAL SPECIFICATION LIVEX08A LIVEX10A LIVEX12A LIVEX15A Systemtype Active - 2 way Active - 2 way Active - 2 way Active - 2 way Built-in amp (W/RMS) 100+50 W /4/8Ohm 350+50 W /4/8Ohm 450+50 W /4/8Ohm...
  • Page 24 MUSIC & LIGHTS S.r.l. - Phone +39 0771 72190 - www.musiclights.it...
