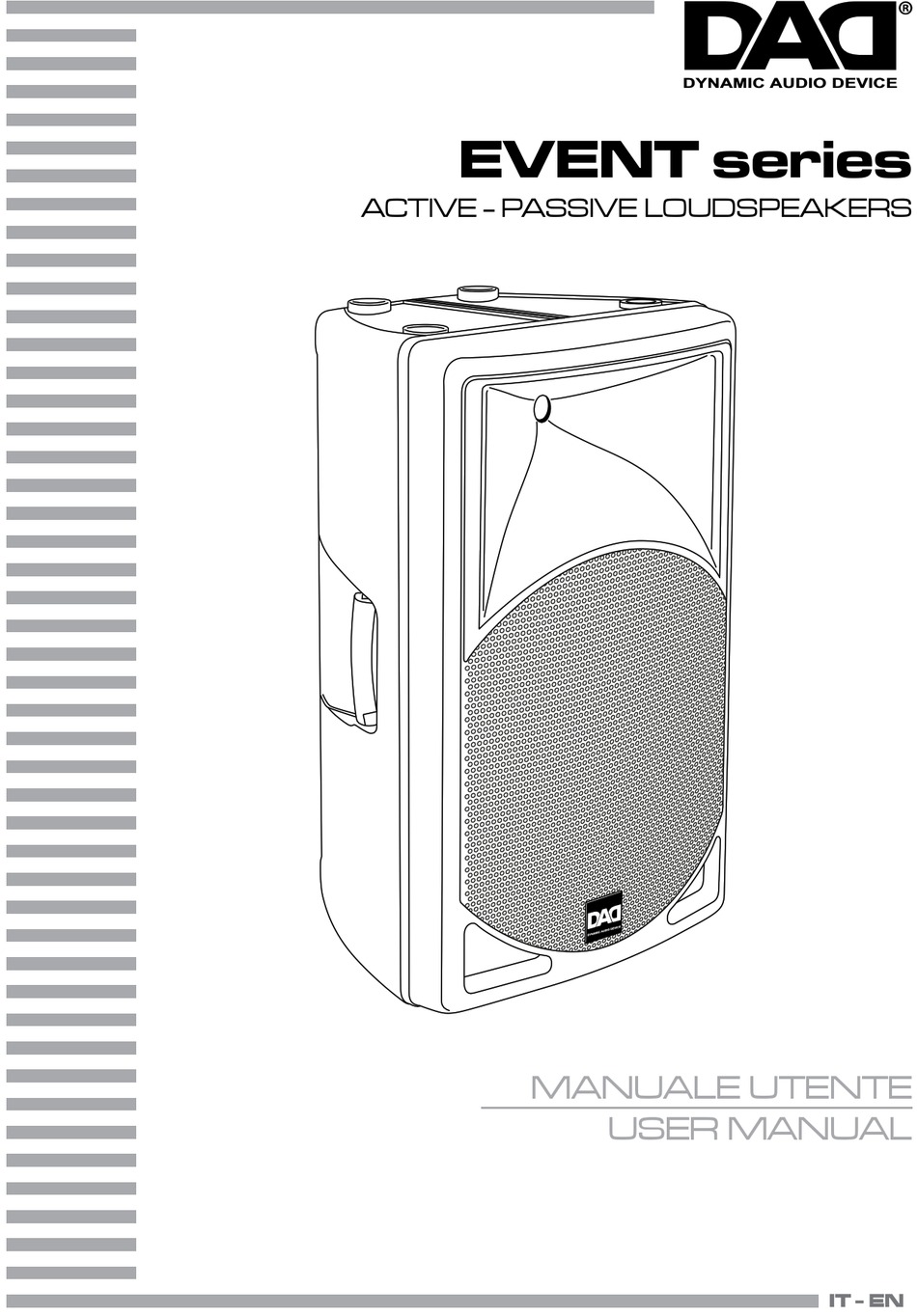

DYNAMIC AUDIO DEVICE EVENT series ACTIVE - PASSIVE LOUDSPEAKERS MANUALE UTENTE USER MANUAL IT - EN...
Page 2
Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso. La riproduzione - anche parziale - per propri scopi commerciali è vietata. All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be reproduced in any form or by any means for any commercial use.
INTRODUZIONE INTRODUCTION La serie Event DAD si pone come un nuovo riferimento DAD Event series is a new reference in the range nel panorama dei diffusori in polipropilene per sound of PA systems for sound reinforcement, with new reinforcement, proponendo una nuova linea con mo- models, amazing in terms of quality, performance and delli interessanti per qualità, prestazioni e contenuto...
Page 4
EVENT series ATTENZIONE! WARNING! Before carrying out any operations with the unit, Prima di effettuare qualsiasi operazione con carefully read this instruction manual, and keep it l’unità, leggere con attenzione questo manuale with cure for future reference. conservarlo accuratamente riferimenti It contains important information about the futuri.
EVENT series Attenzioni e precauzioni per l’installazione Warning and precautions for fixtures • Questo prodotto in combinazione con • This product in combination with amplifier, amplificatore può essere capace di produrre may be capable of producing dangerous livelli sonori che possono causare perdite sound levels that could cause permanent d’udito permanenti.
EVENT series INFORMAZIONI GENERALI GENERAL INFORMATION Spedizioni e reclami Shipments and claims Le merci sono vendute “franco nostra sede” The goods are sold “ex works” and always travel e viaggiano sempre a rischio e pericolo del at the risk and danger of the distributor.
EVENT series DESCRIZIONE DESCRIPTION EVENT8 EVENT8 • Diffusore acustico passivo a due vie. • Passive 2-way acoustic loudspeaker. • Woofer da 8” con eccellente riproduzione • 8” woofer with an excellent reproduction of della gamma medio bassa insieme a una the low-mid range and a good low thickness.
Page 8
EVENT series • Sistema di aggancio a 3 punti (tipo M8) per installations. installazioni in sospensione. • Connections: 2 x 4 pin Speakon connectors. • Connettori: 2 x Speakon 4 poli. EVENT10A EVENT10A • Diffusore acustico attivo biamplificato. • Active biamplified acoustic loudspeaker.
Page 9
EVENT series • 2 amplificatori (200W per il woofer e 50W per for the compression driver) and a stage with il driver a compressione) ed una sezione con an electronic processor. processore elettronico. • Cabinet made of polypropylene for perma- • Cabinet in polipropilene per installazioni...
EVENT series INSTALLAZIONE INSTALLATION To increase coverage and maximum SPL value it Per aumentare la zona di copertura e l’SPL mas- is advisable to place more cabinets side by side simo, è possibile affiancare più diffusori in modo creating an array.
Installazione sospesa Suspended installation • È possibile sospendere le EVENT tramite i • EVENT series cabinets may be hanged using golfari compatibili ed il sistema di aggancio a compatible eye-bolts and the points hook- più punti. Gli innesti sono visibili rimuovendo ing system.
Page 14
EVENT series PANNELLI DI CONNESSIONE CONNECTIONS PANEL Versione attiva biamplificata: Active biamplified version: EVENT8A - 10A - 12A EVENT8A - 10A - 12A Diffusore attivo biamplificato Active biamplified loudspeak- con controlli toni e mixer inte- er with built-in mixer and...
EVENT series CONNESSIONI E CONTROLLI CONNECTIONS AND CONTROLS Versione attiva biamplificata: Active biamplified version: EVENT8A - 10A - 12A EVENT8A - 10A - 12A CONNESSIONI CONNECTIONS MIC IN: presa Jack 6,3mm e presa XLR 3p per il MIC IN: Jack 6,3mm socket and XLR 3p socket collegamento in ingresso di segnali microfonici.
Page 16
EVENT series PANNELLI DI CONNESSIONE CONNECTIONS PANEL Versione attiva biamplificata: EVENT15A Active biamplified version: EVENT15A Diffusore attivo biamplificato Active biamplified loud- con controllo toni e mixer inte- speaker with built-in mixer grato, 3ch (2 mic + 1 line) con and bass/treble control, 3ch (2 regolazioni indipendenti.
Page 17
EVENT series CONNESSIONI E CONTROLLI CONNECTIONS AND CONTROLS Versione attiva biamplificata: EVENT15A Active biamplified version: EVENT15A CONNESSIONI CONNECTIONS MIC 1-2: presa Jack 6,3mm e presa XLR 3p per il MIC 1-2: Jack 6,3mm socket and XLR 3p socket collegamento in ingresso di segnali microfonici.
EVENT series SPECIFICHE TECNICHE - TECHNICAL SPECIFICATION EVENT8A EVENT8 EVENT10A EVENT10 System type Active Passive Active Passive Rated System Power 120 W rms 100 W AES 200 W rms 220W AES Sensitivity (1W@1m) 93 dB 94 dB Max Calculated SPL...
Page 19
EVENT series SPECIFICHE TECNICHE - TECHNICAL SPECIFICATION EVENT12A EVENT12 EVENT15A EVENT15 System type Active Passive Active Passive Rated System Power 250 W rms 300 W AES 350 W rms 350 W AES Sensitivity (1W@1m) 96 dB 97 dB Max Calculated SPL...
EVENT series ACCESSORI - ACCESSORIES AS200 Stativo professionale in alluminio. Professional loudspeaker stand. AS230 Loudspeaker and sub- Distanziatore regolabile per woofer spacing bar. subwoofer in alluminio. AS250 Supporto in metallo a parete Support metal wall loudspeaker. per casse. ACCA5462 Golfare per M8.
EVENT series BREVI CENNI DI ACUSTICA BRIEF NOTES ON ACOUSTIC La diffusione del suono in un ambiente ha lo Diffusing sound into an environment means to scopo di soddisfare l’ascolto da parte di un certo distribute sound signals to a given audience and numero di persone ed è...
Page 22
EVENT series valori si sommano: per esempio, due altoparlan- impedance. ti da 8 Ohm in serie danno 16 Ohm. There are 2 possible connection systems: serial Quando gli altoparlanti sono collegati in pa- or parallel mode. rallelo, i terminali dello stesso segno sono uni- Connecting two speakers in series means to ti tra loro.
Page 23
EVENT series tore. La potenza di breve termine IEC268-5 è la a distorted signal at a low frequency that causes potenza che il diffusore può sopportare per un a cone excursion beyond the physically con- brevissimo intervallo di tempo. Corrisponde a sented limit.
Page 24
EVENT series Come evitare il clipping Glossary Il metodo più semplice sta nel controllare i livel- SPL: Sound pressure level is a logarithmic meas- li della catena del segnale. Partendo dal canale ure of the rms sound pressure of a sound rela- del mixer bisogna impostare i controlli (gain ed tive to a reference value.
Page 25
Place Stamp Here Affrancare Spett.le Music&Lights S.r.l. Via Appia Km 136.200 04020 Itri (LT) Italy "...
Page 28
MUSIC & LIGHTS S.r.l. Via Appia, km 136,200 - 04020 Itri (LT) - ITALY Phone +39 0771 72190 - Fax +39 0771 721955 www.musiclights.it - email: info@musiclights.it ISO 9001:2008 Certified Company...
