Summary of Contents for Reed Instruments R9230

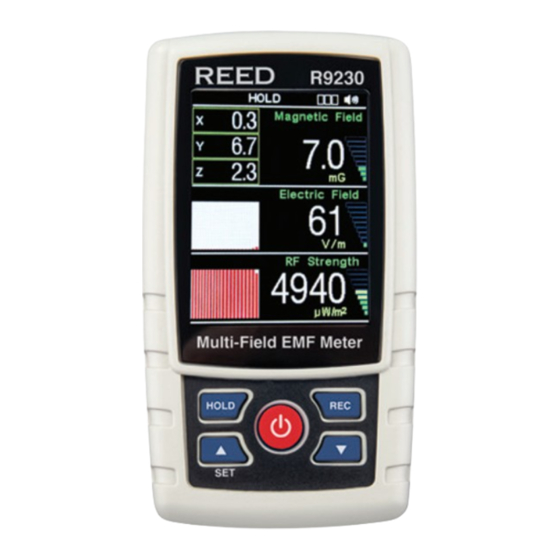

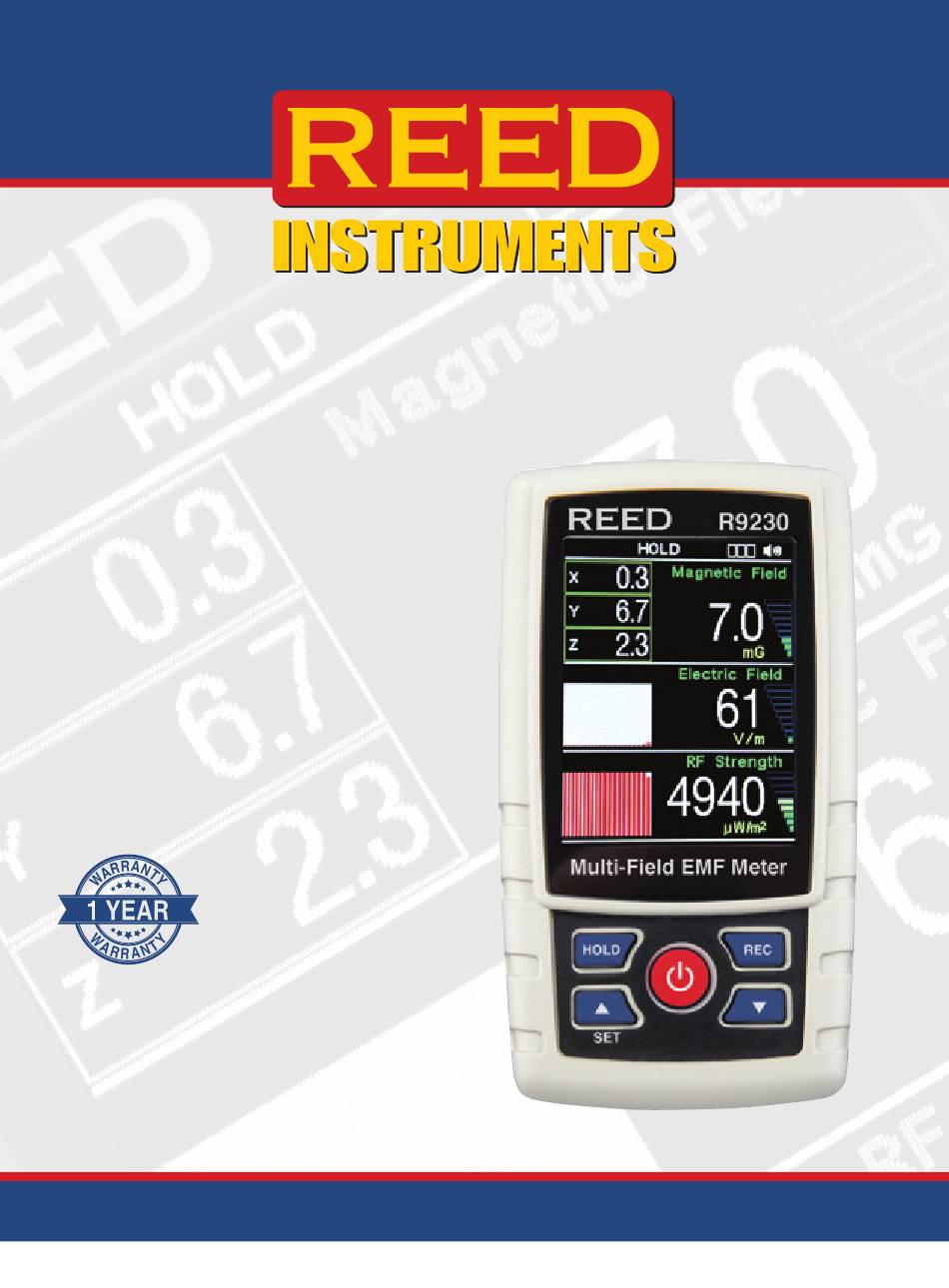

- Page 1 R9230 Multi-Field EMF Meter 1 YEAR 1 AN 1 AN 1 YEAR Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 Features ...................... 4 Included ...................... 4 Specifications ..................5-6 Instrument Description ................7 Display Description .................8-9 Operating Instructions ................9-13 Power ON/OFF ..................9 Electric Field Measurements ..............9 Magnetic Field Measurements ............. -
Page 3: Introduction
Introduction Thank you for purchasing your REED R9230, Multi-Field EMF Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Features
• Triple axis (X, Y, Z) RF, EMF and ELF sensor • Audible alarm • Data Hold and Min/Max functions • Low battery indicator and auto shut-off Included • R9230 Multi-Field EMF Meter • Batteries GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 5: Specifications
Specifications RF Strength Measuring Range: 30.0mV/m to 11.00V/m 0.02 to 32.0uW/cm² 2.3μW/m² to 320.9mW/m² 0.07 to 29.1mA/m Accuracy: ±1dB at 1V/m and 900MHz Resolution: 0.01, 0.1mV/m / 0.01V/m 0.01, 0.1μW/cm² 0.1, 1μW/m² / 0.1mW/m² 0.01, 0.1mA/m Magnetic Field Measuring Range: 200 to 2000mG 20 to 200μT Accuracy:... - Page 6 Power Supply: 3 x AAA Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: <80% Storage Humidity Range: <70% Maximum Operating Altitude: 6561' (2000m) 4.2 x 2.4 x 1.0" (107 x 60 x 25mm) Dimensions: Weight: 0.2lbs (106g)
-
Page 7: Instrument Description
Instrument Description 1. LCD Display 8. Electric Field Detector 2. POWER Button 9. Wrist Strap 3. DATA HOLD Button 10. Battery Cover Screw 4. UP/SET Button 11. Battery Compartment Cover 5. DOWN Button 12. Tripod Mounting Screw 6. RECORD/ENTER Button 13. -
Page 8: Display Description
Display Description 1. Low Battery Indicator 8. Electric Field Alert Level Indicator 2. XYZ Axes Values 9. Magnetic Field 3. Electric Field Graph Measurement Value 4. RF Strength Graph 10. Magnetic Field Alert 5. RF Strength Level Indicator Measurement Value 11. -
Page 9: Operating Instructions
To turn the meter ON or OFF press and hold the POWER button for approx. 2 seconds. Electric Field Measurements The R9230 measures the electric field (Electrical Power) in the atmosphere of the sensor's surroundings. Hold the meter at the bottom and at arm's length. -
Page 10: Magnetic Field Measurements
Magnetic Field Measurements Point the front section of the meter toward the desired electromagnetic field to take a measurement. Due to environment related magnetic field factors, this electromagnetic field (EMF) meter may display a reading of under 0.50mG prior to testing. This is caused by the magnetic noise in the environment, rather than meter failure. -
Page 11: Data Hold
Data Hold While taking a measurement, press the HOLD button to freeze the current measurements on the display. While in this mode a "HOLD" symbol will appear on the display. Press the button again to resume normal operation. Note: When the DATA HOLD feature is active all buttons except the POWER button are disabled. -
Page 12: Setup Mode
Setup Mode Press and hold the SET button for 2 seconds to enter Setup Mode. Use the arrows to scroll through the following parameters: Parameter Description POWER OFF Enable or disable the auto-power off function BUZZER Turn the beeper on or off LF UNIT Setting the Magnetic unit of Measurement EMF UNIT... -
Page 13: Setting The Magnetic Unit Of Measurement (Lf Unit)
Setting the Magnetic unit of Measurement (LF UNIT) Press the REC button when "LF UNIT" appears on the LCD. Press the buttons to select between uT (micro Tesla) and mG (Milli Gauss). Press the REC button to confirm selection and return to the Setup Mode screen. -
Page 14: Battery Replacement
Battery Replacement When the low battery icon appears on the LCD, the battery needs to be replaced. Use a Flat head screwdriver to remove the battery cover. Install (or replace) the 3 x AAA batteries. Secure the battery cover back into place using the Flat head screwdriver. -
Page 15: Product Warranty
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. - Page 16 TEST & MEASURE WITH CONFIDENCE Access our Product Catalog Over 200 portable test and measurement instruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
