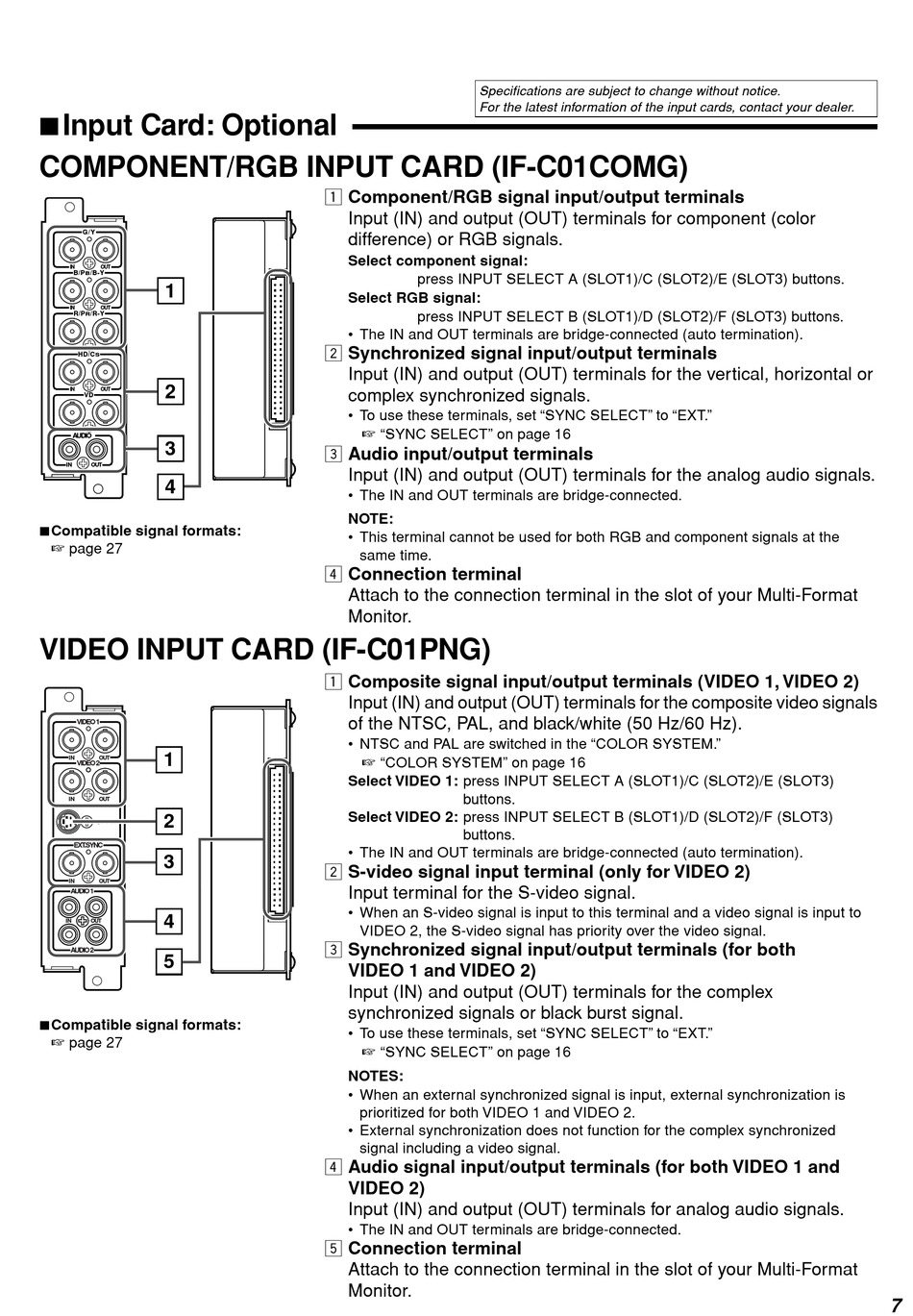

7Input Card: Optional

COMPONENT/RGB INPUT CARD (IF-C01COMG)
G/Y
IN OUT
B/P /B-Y
B
1
IN OUT
R/P /R-Y
R
IN OUT
HD/C
S
2
IN OUT
VD
IN IN OUT OUT
AUDIO
3
IN OUT
4
7Compatible signal formats:
☞ page 27
VIDEO INPUT CARD (IF-C01PNG)
VIDEO 1
1
IN OUT
VIDEO 2
IN OUT
2
Y/C IN
EXT .SYNC
3
IN OUT
AUDIO 1
4
IN OUT
AUDIO 2
5
7Compatible signal formats:
☞ page 27
Specifications are subject to change without notice.
For the latest information of the input cards, contact your dealer.
1 Component/RGB signal input/output terminals
Input (IN) and output (OUT) terminals for component (color
difference) or RGB signals.
Select component signal:
press INPUT SELECT A (SLOT1)/C (SLOT2)/E (SLOT3) buttons.
Select RGB signal:
press INPUT SELECT B (SLOT1)/D (SLOT2)/F (SLOT3) buttons.
• The IN and OUT terminals are bridge-connected (auto termination).
2 Synchronized signal input/output terminals
Input (IN) and output (OUT) terminals for the vertical, horizontal or
complex synchronized signals.
• To use these terminals, set "SYNC SELECT" to "EXT."
☞ "SYNC SELECT" on page 16
3 Audio input/output terminals
Input (IN) and output (OUT) terminals for the analog audio signals.
• The IN and OUT terminals are bridge-connected.
NOTE:
• This terminal cannot be used for both RGB and component signals at the
same time.
4 Connection terminal
Attach to the connection terminal in the slot of your Multi-Format
Monitor.
1 Composite signal input/output terminals (VIDEO 1, VIDEO 2)
Input (IN) and output (OUT) terminals for the composite video signals
of the NTSC, PAL, and black/white (50 Hz/60 Hz).
• NTSC and PAL are switched in the "COLOR SYSTEM."
☞ "COLOR SYSTEM" on page 16
Select VIDEO 1: press INPUT SELECT A (SLOT1)/C (SLOT2)/E (SLOT3)
buttons.
Select VIDEO 2: press INPUT SELECT B (SLOT1)/D (SLOT2)/F (SLOT3)
buttons.
• The IN and OUT terminals are bridge-connected (auto termination).
2 S-video signal input terminal (only for VIDEO 2)
Input terminal for the S-video signal.
• When an S-video signal is input to this terminal and a video signal is input to
VIDEO 2, the S-video signal has priority over the video signal.
3 Synchronized signal input/output terminals (for both
VIDEO 1 and VIDEO 2)
Input (IN) and output (OUT) terminals for the complex
synchronized signals or black burst signal.
• To use these terminals, set "SYNC SELECT" to "EXT."
☞ "SYNC SELECT" on page 16
NOTES:
• When an external synchronized signal is input, external synchronization is
prioritized for both VIDEO 1 and VIDEO 2.
• External synchronization does not function for the complex synchronized
signal including a video signal.
4 Audio signal input/output terminals (for both VIDEO 1 and
VIDEO 2)
Input (IN) and output (OUT) terminals for analog audio signals.
• The IN and OUT terminals are bridge-connected.
5 Connection terminal
Attach to the connection terminal in the slot of your Multi-Format
Monitor.
7
