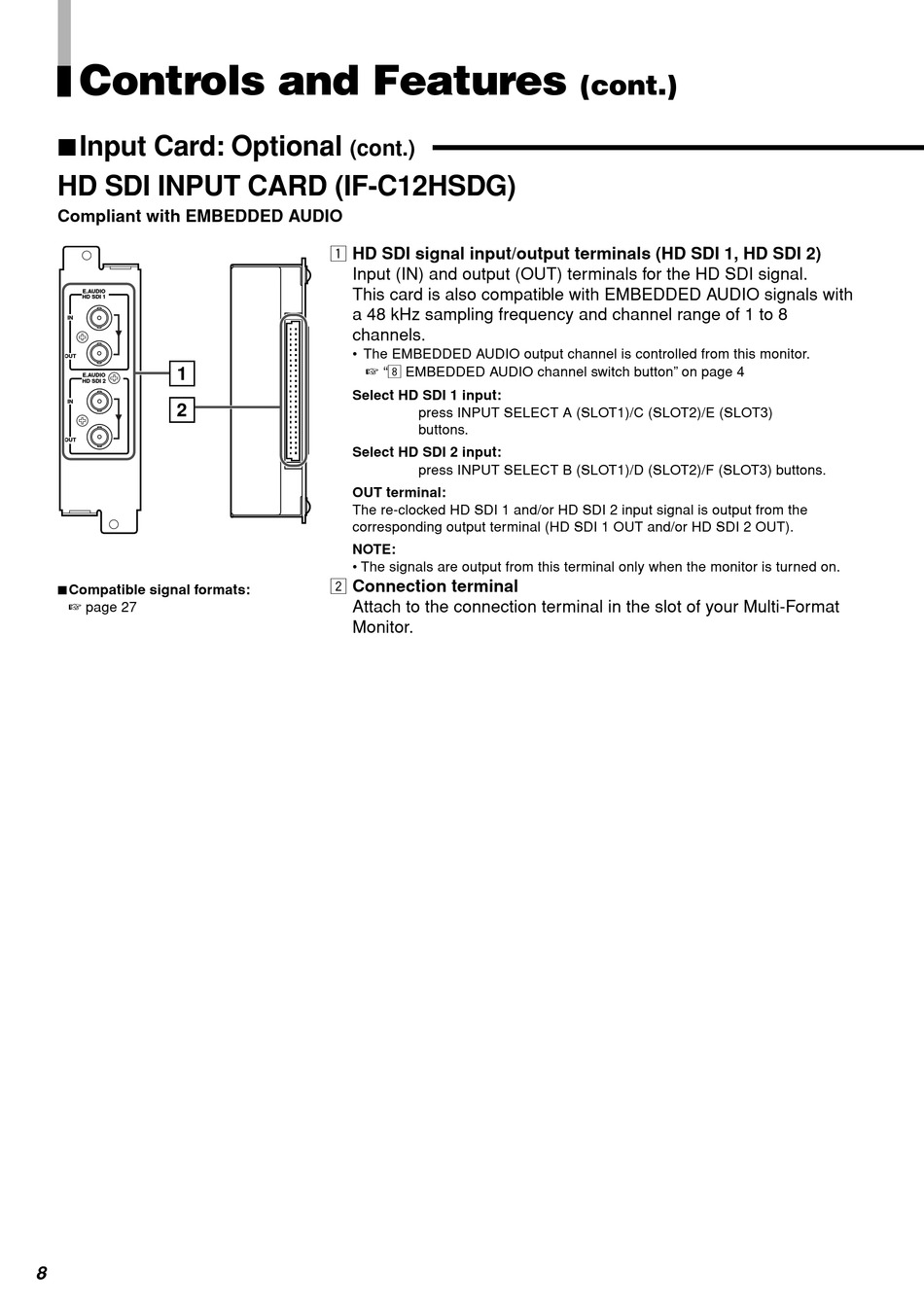

JVC DT-V1710CG Instructions Manual page 8

Controls and Features
7Input Card: Optional
HD SDI INPUT CARD (IF-C12HSDG)
Compliant with EMBEDDED AUDIO
E.AUDIO
HD SDI 1
IN
OUT
1
E.AUDIO
HD SDI 2
IN
2
OUT
7 Compatible signal formats:
☞ page 27
8
(cont.)
1 HD SDI signal input/output terminals (HD SDI 1, HD SDI 2)
Input (IN) and output (OUT) terminals for the HD SDI signal.
This card is also compatible with EMBEDDED AUDIO signals with
a 48 kHz sampling frequency and channel range of 1 to 8
channels.
• The EMBEDDED AUDIO output channel is controlled from this monitor.
☞ "8 EMBEDDED AUDIO channel switch button" on page 4
Select HD SDI 1 input:
press INPUT SELECT A (SLOT1)/C (SLOT2)/E (SLOT3)
buttons.
Select HD SDI 2 input:
press INPUT SELECT B (SLOT1)/D (SLOT2)/F (SLOT3) buttons.
OUT terminal:
The re-clocked HD SDI 1 and/or HD SDI 2 input signal is output from the
corresponding output terminal (HD SDI 1 OUT and/or HD SDI 2 OUT).
NOTE:
• The signals are output from this terminal only when the monitor is turned on.
2 Connection terminal
Attach to the connection terminal in the slot of your Multi-Format
Monitor.
