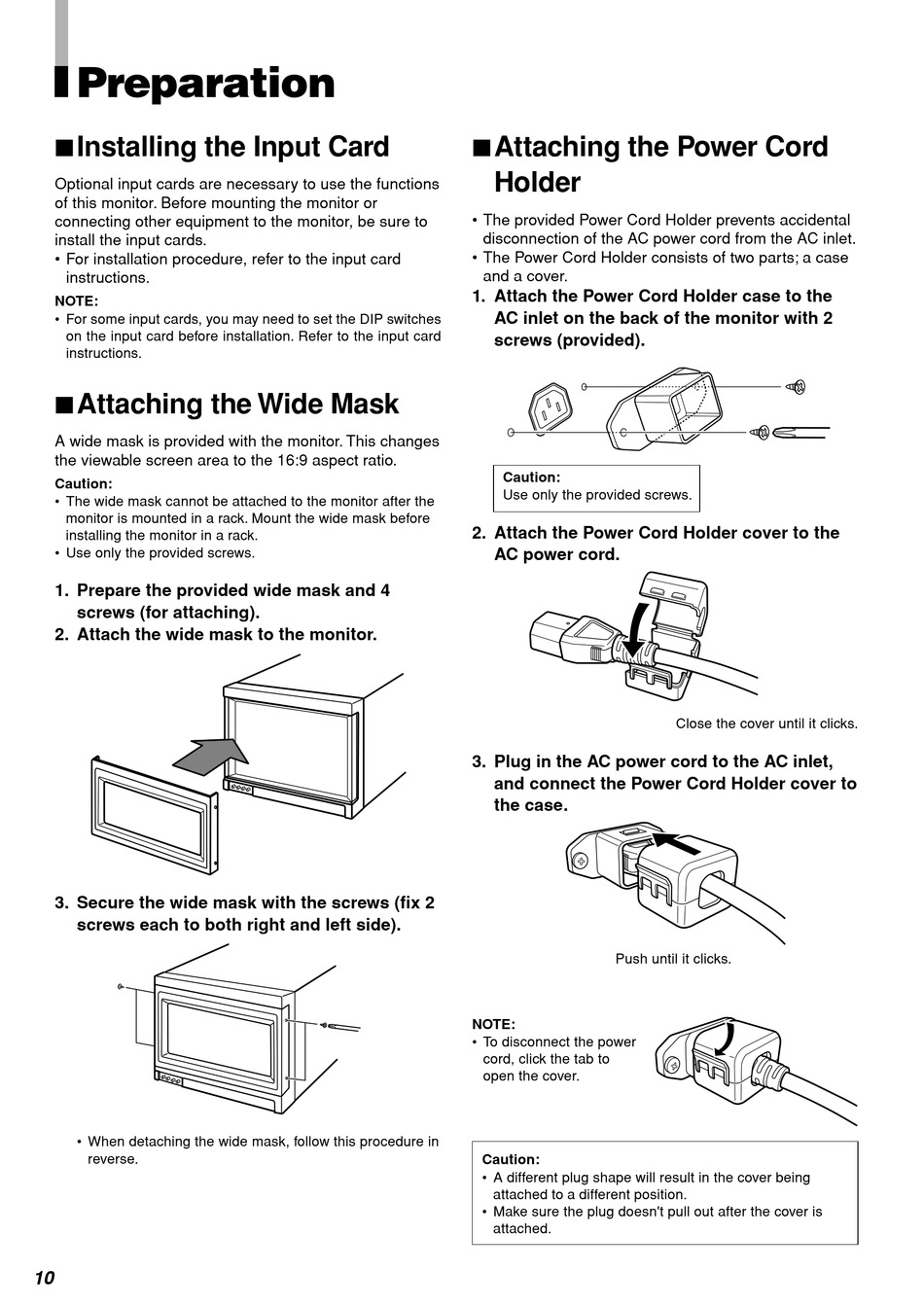

Preparation

7Installing the Input Card
Optional input cards are necessary to use the functions
of this monitor. Before mounting the monitor or
connecting other equipment to the monitor, be sure to
install the input cards.
• For installation procedure, refer to the input card
instructions.
NOTE:
• For some input cards, you may need to set the DIP switches
on the input card before installation. Refer to the input card
instructions.
7Attaching the Wide Mask
A wide mask is provided with the monitor. This changes
the viewable screen area to the 16:9 aspect ratio.
Caution:
• The wide mask cannot be attached to the monitor after the
monitor is mounted in a rack. Mount the wide mask before
installing the monitor in a rack.
• Use only the provided screws.
1. Prepare the provided wide mask and 4
screws (for attaching).
2. Attach the wide mask to the monitor.
3. Secure the wide mask with the screws (fix 2
screws each to both right and left side).
• When detaching the wide mask, follow this procedure in
reverse.
10
7Attaching the Power Cord
Holder
• The provided Power Cord Holder prevents accidental
disconnection of the AC power cord from the AC inlet.
• The Power Cord Holder consists of two parts; a case
and a cover.
1. Attach the Power Cord Holder case to the
AC inlet on the back of the monitor with 2
screws (provided).
Caution:
Use only the provided screws.
2. Attach the Power Cord Holder cover to the
AC power cord.
3. Plug in the AC power cord to the AC inlet,
and connect the Power Cord Holder cover to
the case.
Push until it clicks.
NOTE:
• To disconnect the power
cord, click the tab to
open the cover.
Caution:
• A different plug shape will result in the cover being
attached to a different position.
• Make sure the plug doesn't pull out after the cover is
attached.
Close the cover until it clicks.
