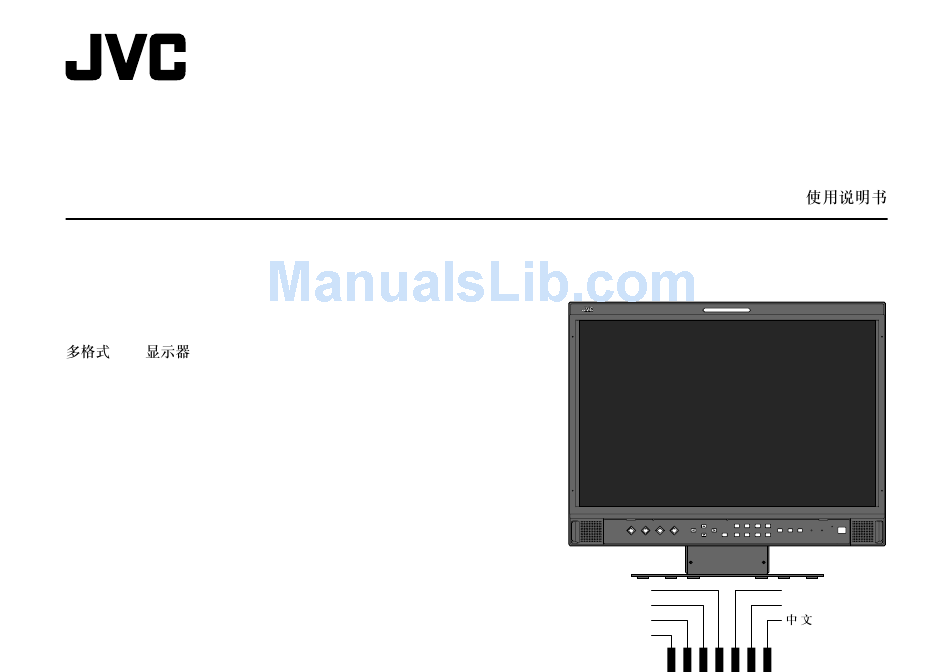

DT-V17L3R
MULTI FORMAT LCD MONITOR
MONITEUR LCD MULTI-FORMAT
MONITOR LCD MULTIFORMATO
MONITOR LCD MULTIFORMATO
МУЛЬТИФОРМАТНЫЙ ЖК МОНИТОР
LCD
LCT2490-002A-H
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
MANUAL DE INSTRUCCIONES
ИHCТРУKЦИЯ ПО ЭКСПЛУАТАЦИИ
ITALIANO
FRANÇAIS
DEUTSCH
ENGLISH
ISTRUZIONI
ESPAÑOL
РУССКИЙ
Advertisement
Table of Contents
Related Manuals for JVC DT-V17L3R
Summary of Contents for JVC DT-V17L3R
- Page 1 BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS ISTRUZIONI MANUAL DE INSTRUCCIONES ИHCТРУKЦИЯ ПО ЭКСПЛУАТАЦИИ DT-V17L3R MULTI FORMAT LCD MONITOR MONITEUR LCD MULTI-FORMAT MONITOR LCD MULTIFORMATO MONITOR LCD MULTIFORMATO МУЛЬТИФОРМАТНЫЙ ЖК МОНИТОР ITALIANO ESPAÑOL FRANÇAIS РУССКИЙ DEUTSCH ENGLISH LCT2490-002A-H...
-
Page 2: Table Of Contents
Refer servicing operating and maintenance (servicing) to qualified service personnel. instructions in the literature accompanying the appliance. DT-V17L3R INSTRUCTIONS MULTI FORMAT LCD MONITOR Table of Contents Safety Precautions ..........2 IMPORTANT SAFEGUARDS ......2 Installation ............ -
Page 3: Safety Precautions
Safety Precautions WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO Under the following conditions, • The AC power supply is controlled by turning on/ RAIN OR MOISTURE. NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE 1. -
Page 4: Important Safety Instructions
European Union only FCC NOTICE Dear Customer, EMC Supplement CAUTION: Changes or modifications not approved by JVC could void the user’s authority to operate the This apparatus is in conformance with the valid This equipment is in conformity with the provisions equipment. -
Page 5: Installation
Installation CAUTION To detach the stand • Do not rest your arm on the monitor or lean against the monitor. CAUTION • Do not touch the LCD panel when installing the monitor. Lay the monitor on a cloth with the LCD panel facing down to prevent the LCD panel from being damaged. •... - Page 6 To adjust the stand height To prevent an accidental fall To change the stand height, detach the stand from the monitor (☞ “To detach the stand” on page 4). Then, Fix the monitor to a wall by using strings. change the position of the stand plate according to the stand height you want by choosing the screw holes to use. Fixing the monitor Attach the hook (not provided) to the VESA mounting holes on the rear panel (use the two holes on the upper side) using M4 x 10 mm screws (not provided).
-
Page 7: Daily Operations / Connections
Daily Operations / Connections 7 Front panel Tally lamp • “NO EFFECT” is displayed when you press a button which is not available for the current input or signal format (the lamp lights even when the function does not This lamp is controlled by the tally function of actually work). - Page 8 Menu Operations On the Information Display On the Status Display On the signal format The following messages appear depending on the type of input signals and their conditions. The monitor displays the information below. If you press the INPUT SELECT button currently Display the menu.
-
Page 9: Rear Panel
Daily Operations / Connections (cont.) 7 Rear panel Attaching the power cord holder The provided power cord holder prevents accidental disconnection of the AC power cord from the AC inlet. • The power cord holder consists of two parts, a case and a cover. -
Page 10: Available Signals
7 Available signals Computer signals (preset) DVI-D (HDCP) terminals The following signals are available for this monitor. Resolution Frequency Signal name Scan system √: Acceptable Horizontal Vertical Horizontal (kHz) Vertical (Hz) —: Not acceptable Video signals VGA60 31.5 59.9 Non-interlace Input terminal WVGA60 31.5... -
Page 11: Menu Configuration-Main Menu
Menu Configuration—MAIN MENU For the operation procedure, see page 7. PICTURE FUNCTION Setting for the picture quality Item To do Setting value APERTURE Select the frequency of the luminance signal compensated in OFF, LOW, HIGH FREQ.* “APERTURE LEVEL.” APERTURE Compensate the frequency response of the luminance signal of the 01 –... - Page 12 MARKER* Settings for marker functions Item To do Setting value ☞ “NOTE” AREA MARKER* Activate/deactivate the area marker and select the style of it. MARKER ASPECT* Select the aspect ratio of the area marker. 4:3, 14:9, 13:9, 2.35:1, 1.85:1, 1.66:1 ☞...
- Page 13 Menu Configuration—MAIN MENU (cont.) AUDIO SETTING Settings for the EMBEDDED AUDIO signals and level meter Item To do Setting value ☞ “NOTE” LEVEL METER Adjust the level meter display for the SETTING* EMBEDDED AUDIO signals. LEVEL METER ch Select how the audio channels are displayed on OFF, LINE (Displays the channels 1 –...
- Page 14 WAVE FORM SETTING* Settings for the wave form monitor Item To do Setting value POSITION Select the position of the wave form monitor. 1 (lower right), 2 (lower left), 3 (upper left), 4 (upper right) FILTER Activates/deactivates the low-pass filter for the FLAT (no filter), LOWPASS incoming wave form data.
-
Page 15: Menu Configuration-Set-Up Menu
Menu Configuration—SET-UP MENU FUNCTION SETTING For the operation procedure, see page 7. Setting for the sub menu display, color of the tally lamp and the picture size. Item To do Setting value ☞ “NOTE” sub menu POSI. Select the contents and displaying position of “sub menu.” TALLY SELECT Select the color of the tally lamp. - Page 16 REMOTE SETTING (☞ “External Control” on pages 16 to 18) Settings for the external control Item To do Setting value SERIAL TYPE Select the input terminal used for external control by RS232C, RS485 serial communication. PARALLEL TYPE Select the external control method for the MAKE/ MAKE, TRIGGER, SET TRIGGER terminal.
-
Page 17: External Control
External Control 7 About the external control Control priority is as follows. MAKE > TRIGGER = serial communication = buttons and menu on the monitor This monitor has three external control terminals. • You can use the external control even when “CONTROL LOCK” is set to “ON” (☞ page 15). •... -
Page 18: Using The Make/Trigger System
7 Using the MAKE/TRIGGER system <Functions controlled by the MAKE/TRIGGER system> Display Functions to be controlled Opening Short-circuiting The MAKE/TRIGGER terminal is configured as follows. You can assign a function to each pin terminal in TALLY SEL Selects the color of the tally lamp. Green “REMOTE SETTING”... -
Page 19: Using The Serial Communication
External Control (cont.) 7 Using the serial communication Example of communication procedures 1 Starting the communication: You can control the monitor from a personal computer etc. via the RS-485 or RS-232C terminal. connection command (!00BCN1Cr) • Consult your dealer for the details of the external control specification. Monitor 2 Monitor’s status (@00BOKCr) <Communication specifications>... -
Page 20: Troubleshooting
Troubleshooting Solutions to common problems related to the monitor are described here. If none of the solutions presented here solve the problem, unplug the monitor and consult an authorized dealer or service center. Symptom Probable cause and corrective action Page Symptom Probable cause and corrective action Page... -
Page 21: Self-Check Program
Troubleshooting (cont.) Maintenance 7 Self-check program Unplug this product from the wall outlet before cleaning. This monitor has a self-check function, which allows it to detect malfunctions and alert you. This makes Screen troubleshooting easier. Whenever a problem occurs, one or some of the self-check lamps will flash. If this To avoid irreparable change in appearance of the screen such as uneven color, discoloration, scratches, be happens, follow the steps below and contact your dealer to resolve the problem. -
Page 22: Specifications
Notice on transportation This monitor is precision equipment and needs dedicated packing material for transportation. Never use any packing material supplied from sources other than JVC or JVC-authorized dealers. ENGLISH... -
Page 23: Dimensions
Specifications (cont.) 7 Dimensions Unit: mm (inch) <Front view> <Side view> <Rear view> 86 (3 1/2 ) VESA mounting holes (Size: 4-M4, depth: 10 mm) 40 (1 5/8) 395 (15 5/8) 1.5 (1/16) 240 (9 1/2) 34 (1 3/8) 199 (7 7/8) * at the higher position ** at the lower position... - Page 24 DT-V17L3R MULTI FORMAT LCD MONITOR © 2008 Victor Company of Japan, Limited 0908TKH-MW-JMT...
