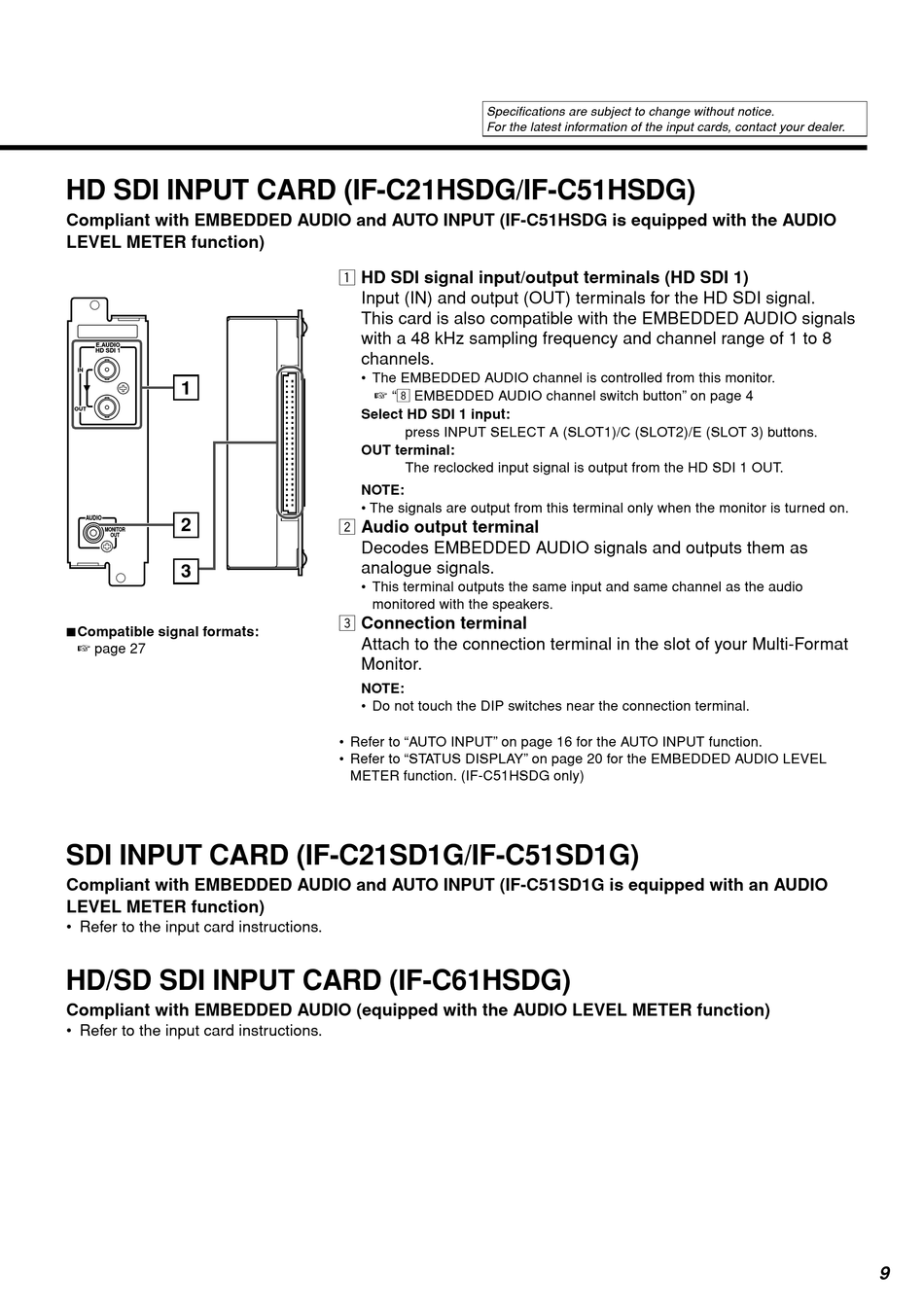

JVC DT-V1710CG Instructions Manual page 9

HD SDI INPUT CARD (IF-C21HSDG/IF-C51HSDG)
Compliant with EMBEDDED AUDIO and AUTO INPUT (IF-C51HSDG is equipped with the AUDIO
LEVEL METER function)
E.AUDIO
HD SDI 1
IN
1
OUT
AUDIO
2
MONITOR
OUT
3
7Compatible signal formats:
☞ page 27
SDI INPUT CARD (IF-C21SD1G/IF-C51SD1G)
Compliant with EMBEDDED AUDIO and AUTO INPUT (IF-C51SD1G is equipped with an AUDIO
LEVEL METER function)
• Refer to the input card instructions.
HD/SD SDI INPUT CARD (IF-C61HSDG)
Compliant with EMBEDDED AUDIO (equipped with the AUDIO LEVEL METER function)
• Refer to the input card instructions.
Specifications are subject to change without notice.
For the latest information of the input cards, contact your dealer.
1 HD SDI signal input/output terminals (HD SDI 1)
Input (IN) and output (OUT) terminals for the HD SDI signal.
This card is also compatible with the EMBEDDED AUDIO signals
with a 48 kHz sampling frequency and channel range of 1 to 8
channels.
• The EMBEDDED AUDIO channel is controlled from this monitor.
☞ "8 EMBEDDED AUDIO channel switch button" on page 4
Select HD SDI 1 input:
press INPUT SELECT A (SLOT1)/C (SLOT2)/E (SLOT 3) buttons.
OUT terminal:
The reclocked input signal is output from the HD SDI 1 OUT.
NOTE:
• The signals are output from this terminal only when the monitor is turned on.
2 Audio output terminal
Decodes EMBEDDED AUDIO signals and outputs them as
analogue signals.
• This terminal outputs the same input and same channel as the audio
monitored with the speakers.
3 Connection terminal
Attach to the connection terminal in the slot of your Multi-Format
Monitor.
NOTE:
• Do not touch the DIP switches near the connection terminal.
• Refer to "AUTO INPUT" on page 16 for the AUTO INPUT function.
• Refer to "STATUS DISPLAY" on page 20 for the EMBEDDED AUDIO LEVEL
METER function. (IF-C51HSDG only)
