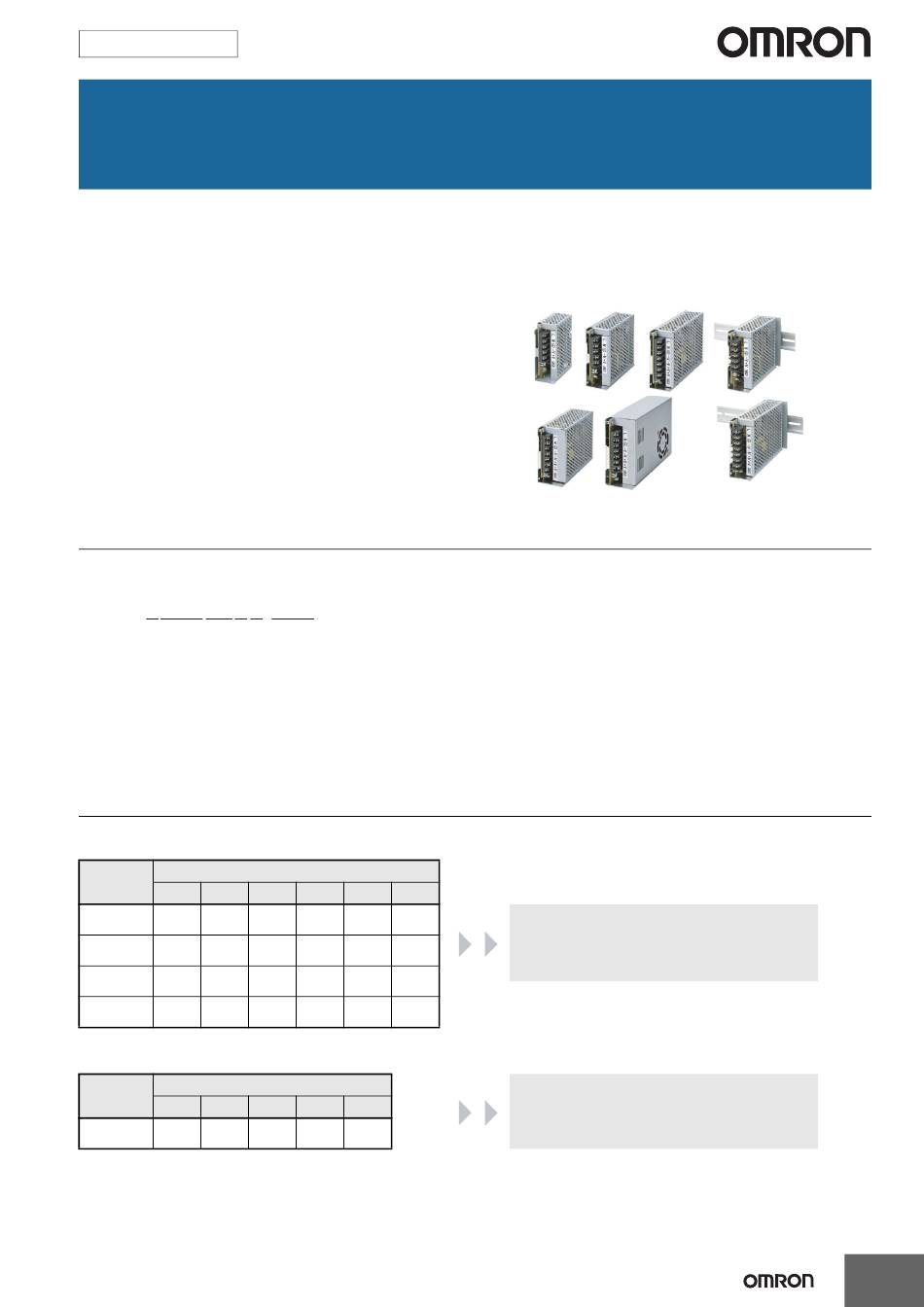

New Product

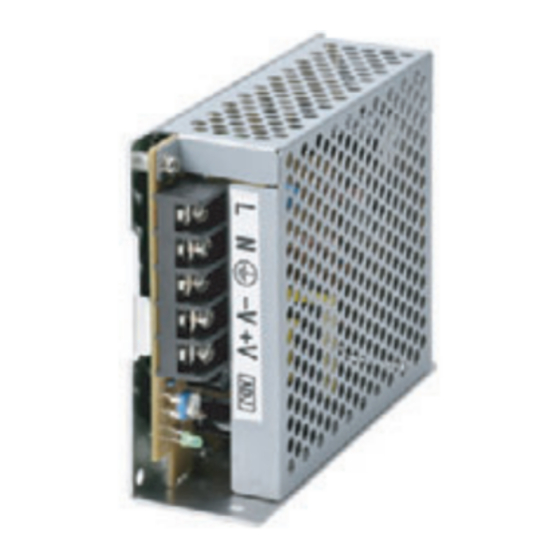

Switch Mode Power Supply
S8JC-Z / S8JC-ZS
S8JC-ZS, newly released Power Supply with CE marking,
additional models for economical Power Supply, S8JC-Z series.
S8JC-Z/S8JC-ZS is our best standard power
supply for
• material cost reduction
• export machines, required safety standard
• time saving for installation by DIN-rail mounting
Model Number Structure
Model Number Legend
Note: Not all combinations are possible. Refer to List of Models in Ordering Information on page 2.
S8JC-Z@@@@@@@@-@@@
1 2 3 4 5
1. Conformed standards
None: no standard
S: CE (EN50178)
Line-up & Feature
S8JC-Z series (15/35/50/100/150/350-W models)
Voltage
15 W 35 W
● ●
5 V
● ●
12 V
● ●
24 V
48 V New New
S8JC-ZS series (15/35/50/100/150-W models)
Power ratings
Voltage
15 W 35 W
24 V New New
6
2. Power Ratings 3. Output Voltage
015: 15 W 05: 5 V
035: 35 W 12: 12 V
050: 50 W 24: 24 V
100: 100 W 48: 48 V
150: 150 W
350: 350 W
Power ratings
50 W 100 W 150 W 350 W
● ● ●
● ● ●
● ● ● ●
New New New
50 W 100 W 150 W
New New New
益成自動控制材料行 http://sale.enproteko.com
5. Configuration/mounting
4. Configuration
None: Bottom-mounting
C: Covered
D: DIN Rail-mounting
6. Input Voltage
None/AC2: 200 to 240 VAC
For More application !
• More Output Voltage Specifications from 5 V to 48 V
• Various power rating range from 15 W to 350 W
For More reliability !
• Conformed to CE marking
• Expanded operating temperature: −20°C to +70°C
• Improved Dielectric strength
