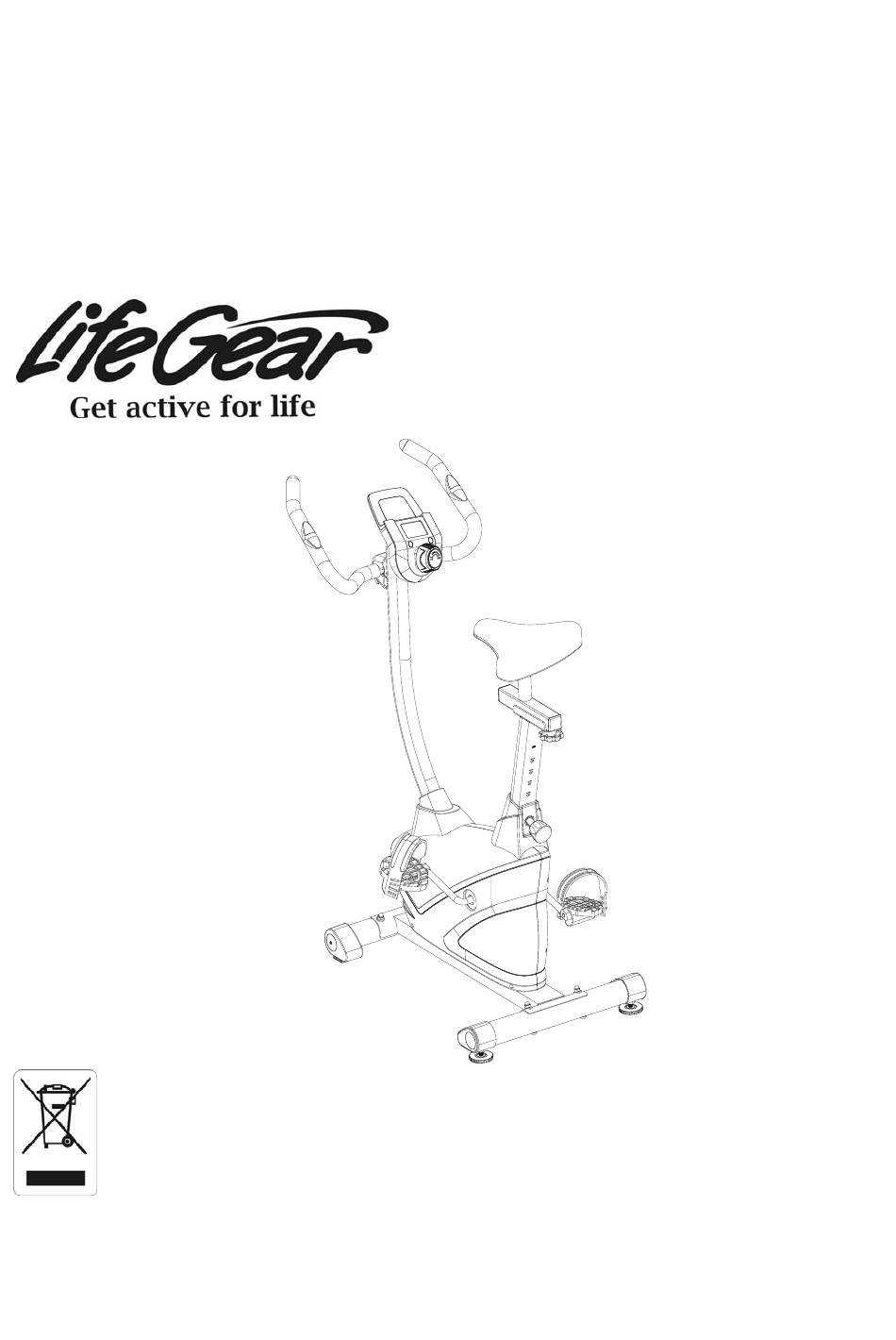

FORMULA
MAGNETIC UPRIGHT BIKE
ITEM NO.: 20582
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.

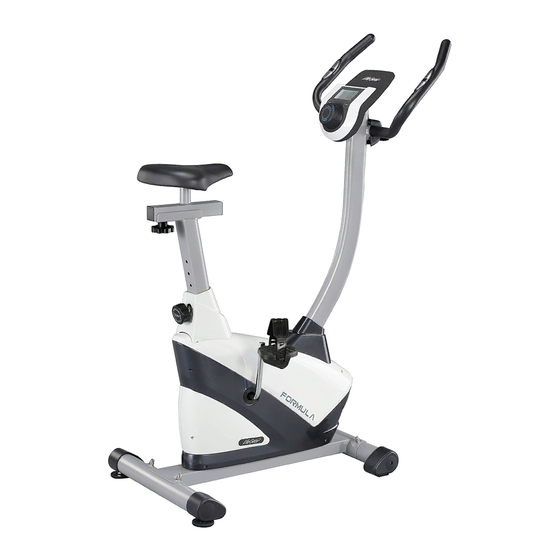

The specifications of this product may vary from this photo and are subject to change without
prior notice.
2020, Sept.

Advertisement

Table of Contents
loading

Related Manuals for LifeGear 20582

Summary of Contents for LifeGear 20582

  • Page 1 FORMULA MAGNETIC UPRIGHT BIKE ITEM NO.: 20582 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST ------------------------------------------------------------------------------- 4 HARDWARE LIST ----------------------------------------------------------------------- 6 TOOLS -------------------------------------------------------------------------------------- 6 EXPLODED VIEW ----------------------------------------------------------------------- 7 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8 HOW TO MOVE THE UPRIGHT BIKE --------------------------------------------- 20 OPERATING THE COMPUTER ------------------------------------------------------ 21 ADJUSTMENTS -------------------------------------------------------------------------- 22 MAINTENANCE -------------------------------------------------------------------------- 23 TROUBLESHOOTING ----------------------------------------------------------------- 23...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.

  • Page 5: Parts List

    PARTS LIST Description Qty No. Description 001 Main Frame 1 027 Nut M10x1x6 002 Handlebar Post 1 028 Flywheel Ø230x40xØ32 003 Seat Post 1 029 Rear Left Stabilizer End Cap 004 Seat Sliding Tube 1 030 Hexagon Nut M10 Adjustable Handlebar 1 031 Carriage Bolt M8x70 Ø25x1.5x1280 006 Front Stabilizer Ø60x1.5x330...
  • Page 6 PARTS LIST Description Qty No. Description Hexagon Socket Pan Head Cap 1 064 Spacer (Ø12x20x1.5) Bolt M8x15 054 Curve Washer Ø16xØ8x1.5 1 065 Clamp Cover Extension Sensor Wire 055 Handlebar Post Cover 1 066 (L=1100 mm) 056 Sensor with Wire L=750 mm 1 067 Tension Cable (L=1350 mm) Cross Recessed Pan Head 1 068 Front Right Stabilizer End Cap...

  • Page 7: Hardware List

    HARDWARE LIST (34) Cap Nut 4 PCS (31) Carriage Bolt (33) Big Curve Washer 4 PCS 4 PCS TOOLS Allen Wrench Multi Hex Tool with Phillips Screwdriver 1 PC 1 PC Multi Hex Tool 1 PC...

  • Page 8: Exploded View

    EXPLODED VIEW...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 33 34 STEP 1 Position the Front Stabilizer (6) in front of the Main Frame (1) and align bolt holes. Attach the Front Stabilizer (6) onto the front curve plate of the Main Frame (1) with two Carriage Bolts (31), two Big Curve Washers (33), and two Cap Nuts (34). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 10 STEP 2 Install two Adjustable Levelers (32) with two Hexagon Nuts (30) onto the Rear Stabilizer (7). STEP 3 Position the Rear Stabilizer (7) behind the Main Frame (1) and align bolt holes. Attach the Rear Stabilizer (7) onto the rear curve plate of the Main Frame (1) with two Carriage Bolts (31), two Big Curve Washers (33), and two Cap Nuts (34).
  • Page 11 STEP 4 Remove three Nylon Nuts (36) and three Washers (37) from underside of the Seat Cushion (48). Remove nylon nuts with the Multi Hex Tool with Phillips Screwdriver provided. Guide bolts on underside of the Seat Cushion (48) through holes on top of the Seat Sliding Tube (4), attach with three removed Nylon Nuts (36) and Washers (37).
  • Page 12 STEP 6 Slide the Seat Post Cover (44) onto the tube of the Main Frame (1). Insert the Seat Post (3) into the Seat Post Bushing (43) on the tube of the Main Frame (1) and then attach the Seat Post Knob (42) onto the tube of the Main Frame (1) by turning it in a clockwise direction with Multi Hex Tool provided to lock the Seat Post (3) in the suitable position.
  • Page 13 STEP 7 Pull both Sensor Wire (56) and Tension Cable (67) out from the tube of the Main Frame (1). Remove four Hexagon Socket Pan Head Cap Bolts (52), four Washers (37), one Hexagon Socket Pan Head Cap Bolt (53), and one Curve Washer (54) from the tube of the Main Frame (1).
  • Page 14 STEP 9 It is recommended to have a second person assist with this step. One person should hold the Handlebar Post (2) in place while the other person to insert and connect the wires. Insert the Tension Cable (67) through into the bottom hole of the Handlebar Post (2) and pull it out from the top end of the Handlebar Post (2).
  • Page 15 53 54 52 37 STEP 10 Insert the Handlebar Post (2) onto the tube of the Main Frame (1) and secure with four Hexagon Socket Pan Head Cap Bolts (52), four Washers (37), one Hexagon Socket Pan Head Cap Bolt (53), and one Curve Washer (54) from the tube of the Main Frame (1). Tighten bolts with the Allen Wrench provided.
  • Page 16 STEP 12 Place the Adjustable Handlebar (5) through clamp on the Handlebar Post (2) with hand pulse sensors facing the seat. Hold the Adjustable Handlebar (5) in desired position and fasten Clamp Cover (65), Spacer (64), and Handlebar T-Knob (63) onto clamp. Tighten the Handlebar T-Knob (63) after adjustment.
  • Page 17 STEP 14 Remove four Cross Recessed Pan Head Bolts (51) from the Computer (49). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided. STEP 15 Insert the Tension Control Knob (50) into the hole on the Computer (49). Attach the Tension Control Knob (50) into the Computer (49) with one Cross Recessed Pan Head Tapping Bolt (71) and one Big Washer (72) that were removed.
  • Page 18 STEP 16 It is recommended to have a second person assist with this step. One person should hold the Computer (49) in place while the other person to connect the wires. Connect the Hand Pulse Sensor Wires (61) and Extension Sensor Wire (66) to the wires that come from the Computer (49).
  • Page 19 STEP 17 Attach the Computer (49) onto the top end of the Handlebar Post (2) with four Cross Recessed Pan Head Bolts (51) from the Computer (49) that were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 20 Left Foot Pedal Right Foot Pedal STEP 18 The Foot Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and “L” for Left. Select the Left Foot Pedal Strap (10) which has L marked on the side of the strap. Snap the three hole end of the strap onto the inside edge of the Left Foot Pedal (10).

  • Page 21: How To Move The Upright Bike

    HOW TO MOVE THE UPRIGHT BIKE Adjustable Handlebar Transport Wheel This upright bike has a pair of Transport Wheels on the both ends of the front stabilizer and can be carefully tilted onto its Transport Wheels for easy moving and storage. To move the upright bike, firmly grasp the Adjustable Handlebar with both hands.

  • Page 22: Operating The Computer

    OPERATING THE COMPUTER USING YOUR COMPUTER The computer can be activated by pressing one of the buttons or by pedaling. If you leave the equipment idle for 4 minutes, the power will turn off automatically. BUTTON FUNCTIONS: MODE: Press the MODE button to select the functions of the computer. Press and hold the MODE button for 3 seconds to reset all data values to zero except the ODO data values.

  • Page 23: Adjustments

    ADJUSTMENTS Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. To decrease the tension, turn the tension control knob in a counterclockwise direction. Tension Control Knob Adjusting the Adjustable Handlebar Hold the adjustable handlebar while loosening the handlebar T-Knob.

  • Page 24: Maintenance

    MAINTENANCE Cleaning The upright bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the upright bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.

  • Page 25: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 26 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
