XINGGUI

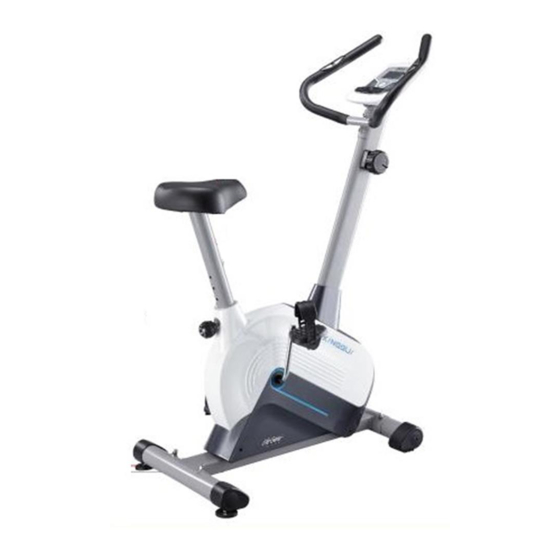

Magnetic Upright Bike
ITEM NO.: 20040
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice.
2016, March.

Advertisement

Table of Contents
loading

Related Manuals for LifeGear XINGGUI 20040

Summary of Contents for LifeGear XINGGUI 20040

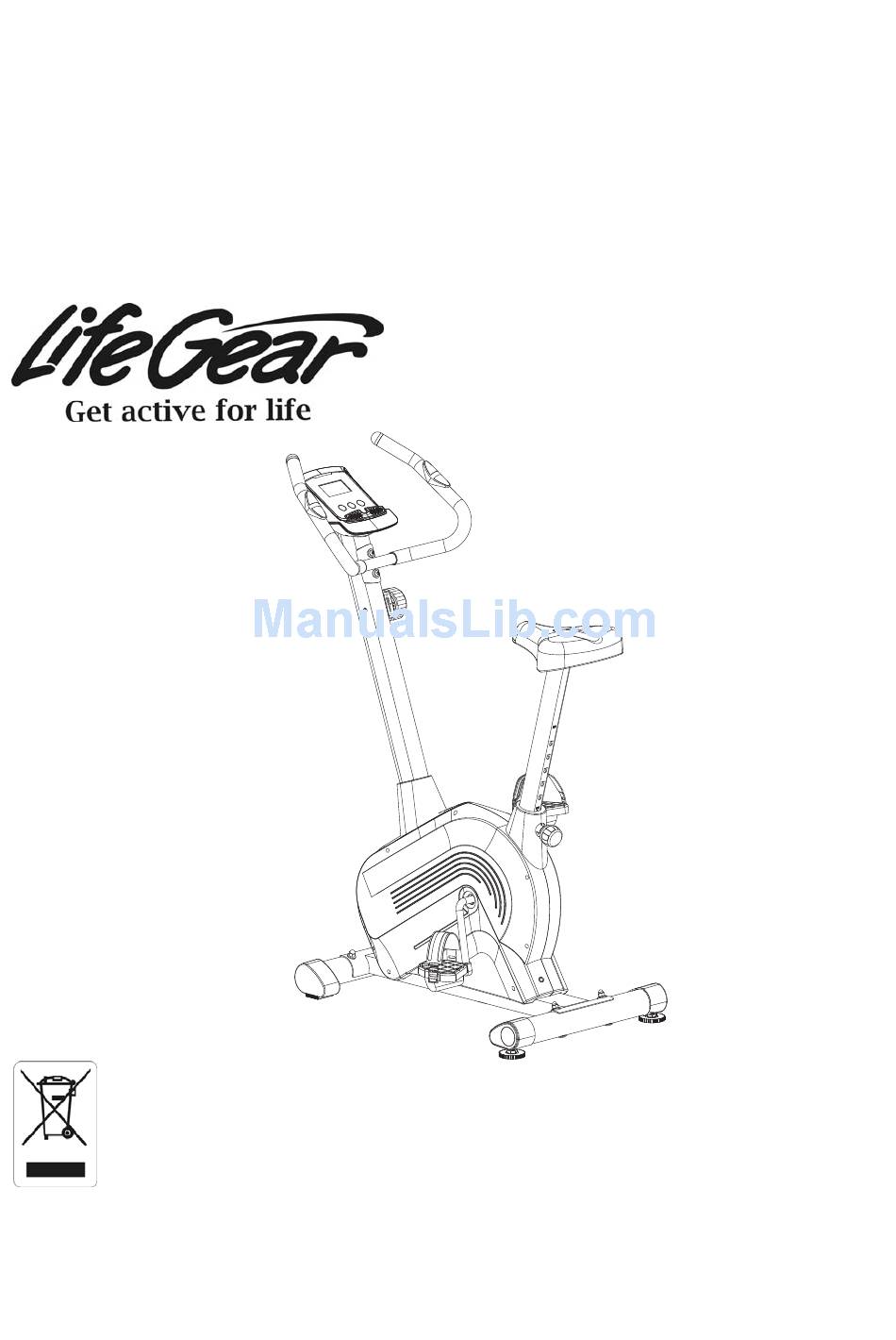

  • Page 1 XINGGUI Magnetic Upright Bike ITEM NO.: 20040 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST ------------------------------------------------------------------------------- 4 HARDWARE LIST ----------------------------------------------------------------------- 5 TOOLS -------------------------------------------------------------------------------------- 5 EXPLODED VIEW ----------------------------------------------------------------------- 6 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 7 HOW TO MOVE THE UPRIGHT BIKE --------------------------------------------- 19 OPERATING THE COMPUTER ------------------------------------------------------ 20 ADJUSTMENTS -------------------------------------------------------------------------- 22 MAINTENANCE -------------------------------------------------------------------------- 23 TROUBLESHOOTING ------------------------------------------------------------------ 23...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.

  • Page 5: Parts List

    PARTS LIST Description Qty No. Description 001 Main Frame 1 026 Seat Post Bushing 002 Handlebar Ø25 1 027 Seat Post Cover 003 Handlebar Post 1 028 Seat Cushion (DD-98-4T) 004 Seat Post 1 029 Washer Ø16xØ8x1.5T 005 Front Stabilizer Ø60x1.5Tx330 1 030 Nylon Nut M8 006 Rear Stabilizer Ø60x1.5Tx480 1 031 Flywheel...

  • Page 6: Hardware List

    PARTS LIST Description Qty No. Description 051 Belt (380J) 1 060 Cap Nut M8 052 Crank with Belt Pulley 1 061 Rear Left Stabilizer End Cap 053 Left Foot Pedal (YH-30X) 1 062 Rear Right Stabilizer End Cap 054 Right Foot Pedal (YH-30X) 1 063 Nut M10 055 Left Cover 1 064 Adjustable Leveler M10...

  • Page 7: Exploded View

    EXPLODED VIEW...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Position the Front Stabilizer (5) in front of the Main Frame (1) and align bolt holes. Attach the Front Stabilizer (5) onto the front curve of the Main Frame (1) with two Carriage Bolts (59), two Big Curve Washers (22), and two Cap Nuts (60). Tighten cap nuts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 9 STEP 2 Install two Adjustable Levelers (64) with two Nuts (63) onto the Rear Stabilizer (6). Position the Rear Stabilizer (6) behind the Main Frame (1) and align bolt holes. Attach the Rear Stabilizer (6) onto the rear curve of the Main Frame (1) with two Carriage Bolts (59), two Big Curve Washers (22), and two Cap Nuts (60).
  • Page 10 STEP 3 Remove four Hexagon Socket Pan Head Cap Bolts (12), two Big Curve Washers (22), and two Washers (24) from the Main Frame (1). Remove bolts with the Allen Wrench provided. STEP 4 Slide the Handlebar Post Cover (21) up to the Handlebar Post (3).
  • Page 11 STEP 5 It is recommended to have a second person assist with this step. One person should hold the Handlebar Post (3) in place while the other person to connect the wires. Connect the Sensor Wire (23) from the Main Frame (1) to the Extension Sensor Wire (15) from the Handlebar Post (3).
  • Page 12 22 12 12 24 STEP 6 Attach the Handlebar Post (3) to the Main Frame (1) with four Hexagon Socket Pan Head Cap Bolts (12), two Big Curve Washers (22), and two Washers (24) that were removed. Tighten bolts with the Allen Wrench provided. Slide the Handlebar Post Cover (21) down to the Handlebar Post (3).
  • Page 13 20 19 STEP 8 Put the cable end of resistance cable of Tension Control Knob (17) into the cable lock of Tension Cable (18), see Figure A. Pull the resistance cable of Tension Control Knob (17) up and force it into the slot of metal bracket of Tension Cable (18), see Figure B.
  • Page 14 STEP 9 Remove three Nylon Nuts (30) and three Washers (29) from underside of the Seat Cushion (28). Remove nylon nuts with the Multi Hex Tool with Phillips Screwdriver provided. Guide bolts on underside of the Seat Cushion (28) through holes on top of the Seat Post (4), attach with removed Nylon Nuts (30) and three Washers (29).
  • Page 15 STEP 11 Insert the Seat Post (4) into the tube of the Main Frame (1) at the desired height. Slide the Seat Post Cover (27) down to the tube of the Main Frame (1). STEP 12 Attach the Seat Post Knob (25) onto the tube of the Main Frame (1) by turning it in a clockwise direction to tighten the Seat Post (4) in the suitable position.
  • Page 16 STEP 13 Remove two Hexagon Socket Pan Head Cap Bolts (12) and two Curve Washers (13) from the Handlebar Post (3). Remove bolts with the Allen Wrench provided. STEP 14 Insert the Hand Pulse Sensor Wires (10) from the Handlebar (2) into the hole on the Handlebar Post (3) and then pull them out from the top end of the Handlebar Post (3).
  • Page 17 13 12 STEP 15 Attach the Handlebar (2) onto the Handlebar Post (3) with two Hexagon Socket Pan Head Cap Bolts (12) and two Curve Washers (13) that were removed. Tighten bolts with the Allen Wrench provided. STEP 16 Remove four Cross Recessed Pan Head Bolts (16) from the Computer (14). Remove bolts with the Multi Hex Tool with Phillips Screwdriver provided.
  • Page 18 STEP 17 It is recommended to have a second person assist with this step. One person should hold the Computer (14) in place while the other person to connect the wires. Connect the Hand Pulse Sensor Wires (10) and Extension Sensor Wire (15) to the wires that come from the Computer (14).
  • Page 19 Right Foot Pedal Left Foot Pedal STEP 19 The Foot Pedals and Pedal Straps are marked “R” for Right and “L” for Left. Select the Right Foot Pedal Strap (54) which has R marked on the side of the strap. Snap the three hole end of the strap onto the inside edge of the Right Foot Pedal (54).

  • Page 20: How To Move The Upright Bike

    HOW TO MOVE THE UPRIGHT BIKE Handlebar Transport Wheel This upright bike has a pair of Transport Wheels built into the front stabilizer and can be carefully tilted onto its Transport Wheels for easy moving and storage. To move the upright bike, firmly grasp the Handlebar with both hands. Next, carefully push the upright bike down until it rolls freely on the Transport Wheels.

  • Page 21: Operating The Computer

    OPERATING THE COMPUTER USING YOUR COMPUTER The computer can be activated by pressing one of the three buttons or by pedaling. If you leave the equipment idle for 4 minutes, the power will turn off automatically. BUTTON FUNCTIONS: MODE: Press the MODE button to select the functions of the computer. Press and hold the MODE button for 3 seconds to reset all data values to zero except the TOTAL data values.
  • Page 22 CAL (CALORIES): Displays approximate amount of calories burned during workout. You may also pre-set target calories in STOP mode before training. To set CALORIES press the MODE button until the screen displays CAL. Press the SET button to change the calories, each time you press the SET button calories should change by 1.0 calorie.

  • Page 23: Adjustments

    ADJUSTMENTS Adjusting the Tension Control Knob To increase the tension, turn the tension control knob in a clockwise direction. To decrease the tension, turn the tension control knob in a counterclockwise direction. Tension Control Knob Adjusting the Adjustable Leveler Turn the adjustable leveler on the rear stabilizer as needed to level the upright bike.

  • Page 24: Maintenance

    MAINTENANCE Cleaning The upright bike can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the upright bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail.

  • Page 25: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 26 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
