TE Connectivity 58644- 2 Instruction Sheet

Wire Guide
Wire Inserter
Locating Pawl
(Hidden)
1. INTRODUCTION
Mass Insertion Terminating Head 58644--2, shown in
Figure 1, is designed to terminate MTA 100
feed--through receptacle connectors (positions 2
through 12) onto notched ribbon cable sizes 28
through 22 AWG with a maximum insulation diameter
of 1.27 mm [.050 in.]. Refer to Figure 2 for reference
connector part numbers.
This head is designed to terminate one connector
NOTE
at a time.
i
A complete list of current connector part numbers
NOTE
cannot be maintained on this document. For all
i
part numbers and their description, refer to
Catalog 82056 or contact Product Information at
the number at the bottom of this page.
The head is used with Pistol Grip Manual Handle
Assembly 58074--1. For terminating head installation
procedures, and setup and operation of the handle
assembly, refer to Instruction Sheet 408--6790. Read
this and the referenced material before terminating
any connectors.
Dimensions on this sheet are in metric units [with
NOTE
U.S. customary units in brackets]. Figures are not
i
drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 8, REVISION SUMMARY.
2. DESCRIPTION
(Figure 1)
The terminating head, when properly installed onto
the handle assembly, serves as a guide for the
connector during termination.
2012 Tyco Electronics Corporation, a TE Connectivity Ltd. company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.

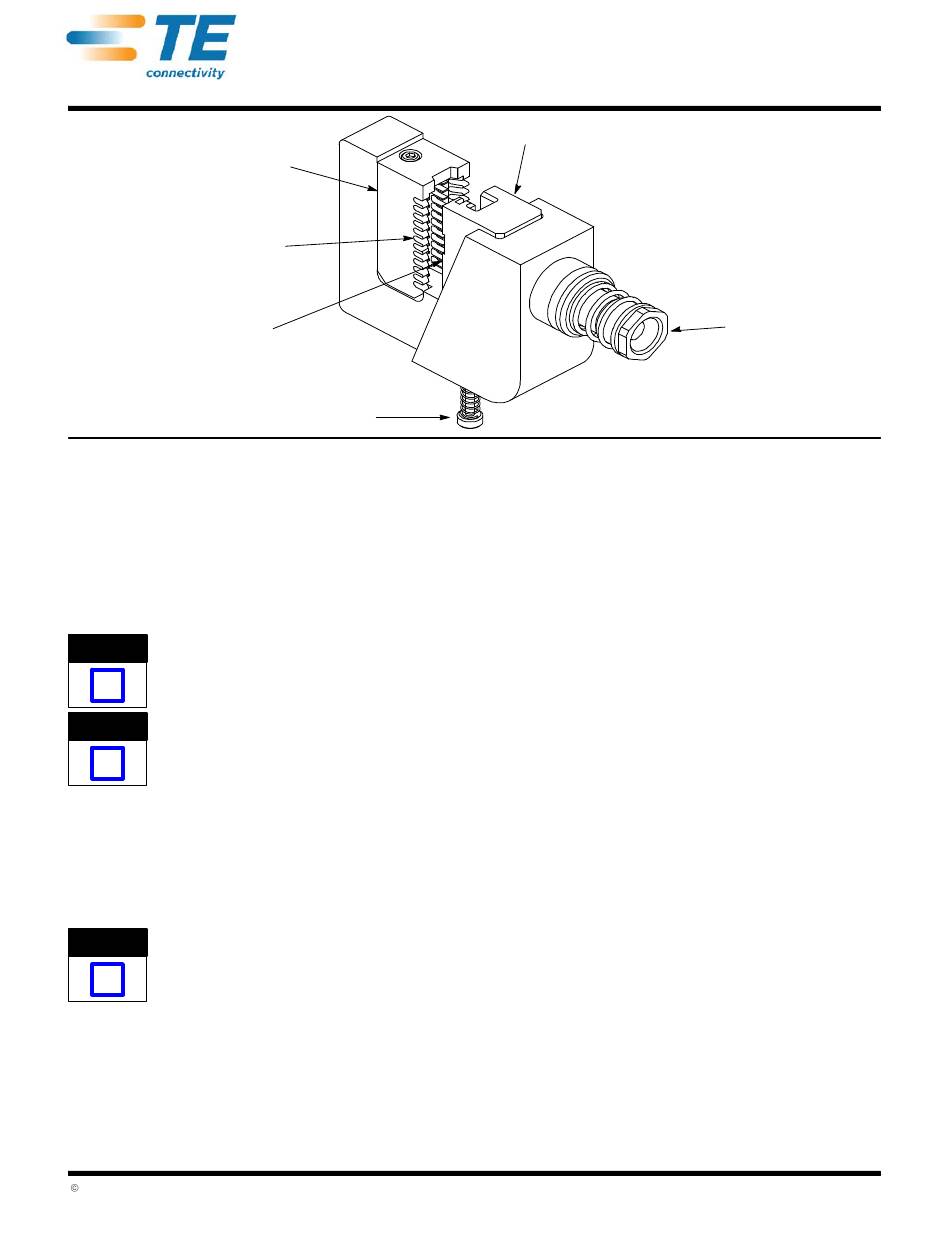

Ribbon Cable Mass Insertion Terminating Head
58644- 2 for MTA (Mass Termination Assembly)
100 Feed- Through Receptacle Connectors
Push Rod
Figure 1
Features of the head and their functions are as
follows:
Wire Inserter—supports each wire in individual wire
slots so that, during the insertion cycle, the wire
forced into the two--slotted beam of the contact.
Wire Guide—positions the ribbon cable over the wire
inserter.
Ram—locates and holds the connector while pushing
it down onto the wires.
Locating Pawl—holds connector in proper alignment
to the wire inserter.
Push Rod—used to push the terminated connector
past the locating pawl for removal.
Insertion Rod Adjuster—is a piston for the ram and
regulates the travel of the inserted wires.
Each wire is terminated in a connector contact using
the insulation displacement technique (a terminating
technique which inserts unstripped wire into a slotted
contact beam to form a reliable electrical connection
between the wire and the contact). Contact
termination is complete when the handle assembly is
actuated.
3. SETUP
3.1. Installing Head
The head can be installed onto the handle assembly
and used as a hand--held tool, or several tools can be
mounted onto a board to be used as a low--level
harness board fixture.
TOOLING ASSISTANCE CENTER 1--800--722--1111
PRODUCT INFORMATION 1--800--522--6752
Ram
