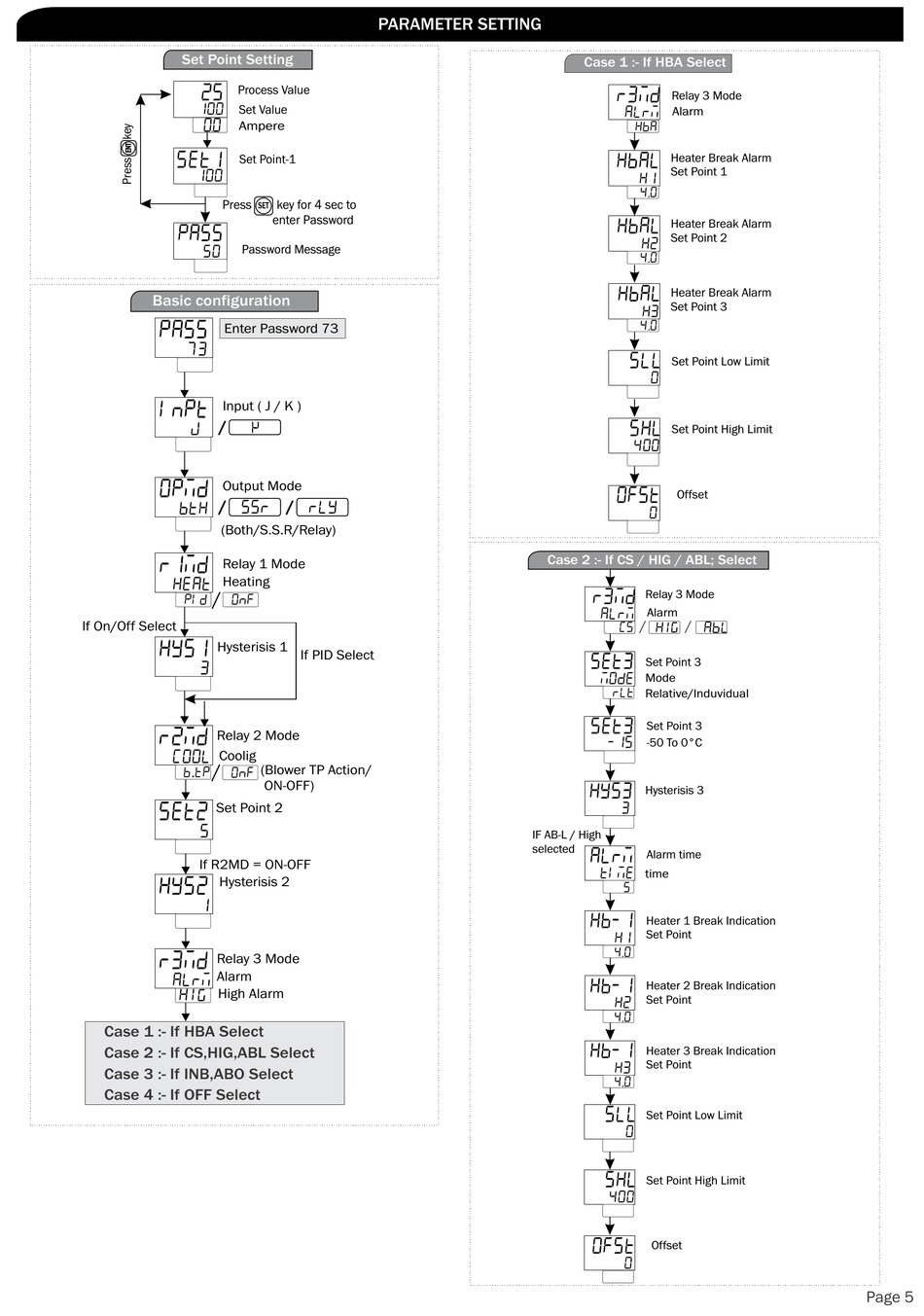

Parameter Setting - MULTISPAN PID 2303-3C Manual

Set Point Setting
25
Process Value
100
Set Value
00
Ampere
set1
Set Point-1
100
Press
pass
50 Password Message
Basic configuration
pass
Enter Password 73
73
INPT
Input ( J / K )
J
OPMD
Output Mode
SSR
BTH
(Both/S.S.R/Relay)
R1MD
Relay 1 Mode
HEAT Heating
PID ONF
If On/Off Select
HYS1
Hysterisis 1
3
R2MD
Relay 2 Mode
COOL
Coolig
B.TP
ONF
SET2
Set Point 2
5
If R2MD = ON-OFF
HYS2
Hysterisis 2
1
R3MD
Relay 3 Mode
Alarm
ALRM
H I
High Alarm
Case 1 :- If HBA Select
Case 2 :- If CS,HIG,ABL Select
Case 3 :- If INB,ABO Select
Case 4 :- If OFF Select

PARAMETER SETTING

key for 4 sec to
SET
enter Password
RLY
If PID Select
(Blower TP Action/
ON-OFF)
Case 1 :- If HBA Select
r3md
Relay 3 Mode
ALRM
Alarm
HBA
HbAL
Heater Break Alarm
Set Point 1
H1
4.0
HBAL
Heater Break Alarm
Set Point 2
H2
4.0
HBAL
Heater Break Alarm
Set Point 3
H3
4.0
SLL
Set Point Low Limit
0
SHL
Set Point High Limit
400
OFST
Offset
0
Case 2 :- If CS / HIG / ABL; Select
r3md
Relay 3 Mode
ALRM Alarm
/ /
H I aBL
CS
set3
Set Point 3
MODE
Mode
RLT
Relative/Induvidual
SET3
Set Point 3
-15
-50 To 0°C
HYS3
Hysterisis 3
3
IF AB-L / High
selected
ALRM
Alarm time
TIME
time
5
HB-1
Heater 1 Break Indication
Set Point
H1
4.0
HB-1
Heater 2 Break Indication
Set Point
H2
4.0
HB-1
Heater 3 Break Indication
Set Point
H3
4.0
SLL
Set Point Low Limit
0
SHL
Set Point High Limit
400
OFST
Offset
0
Page 5
