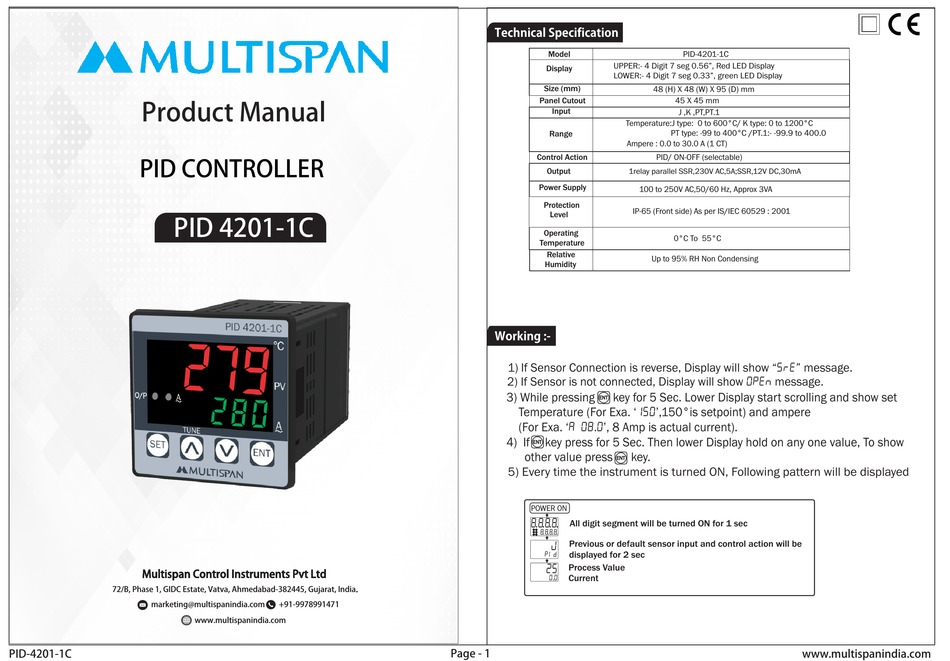

ProductManual

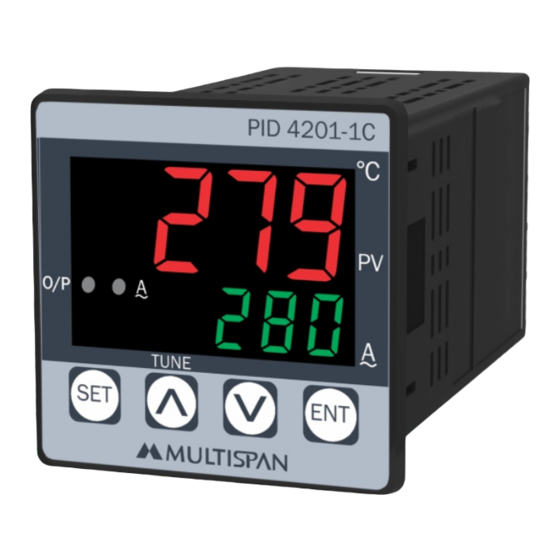

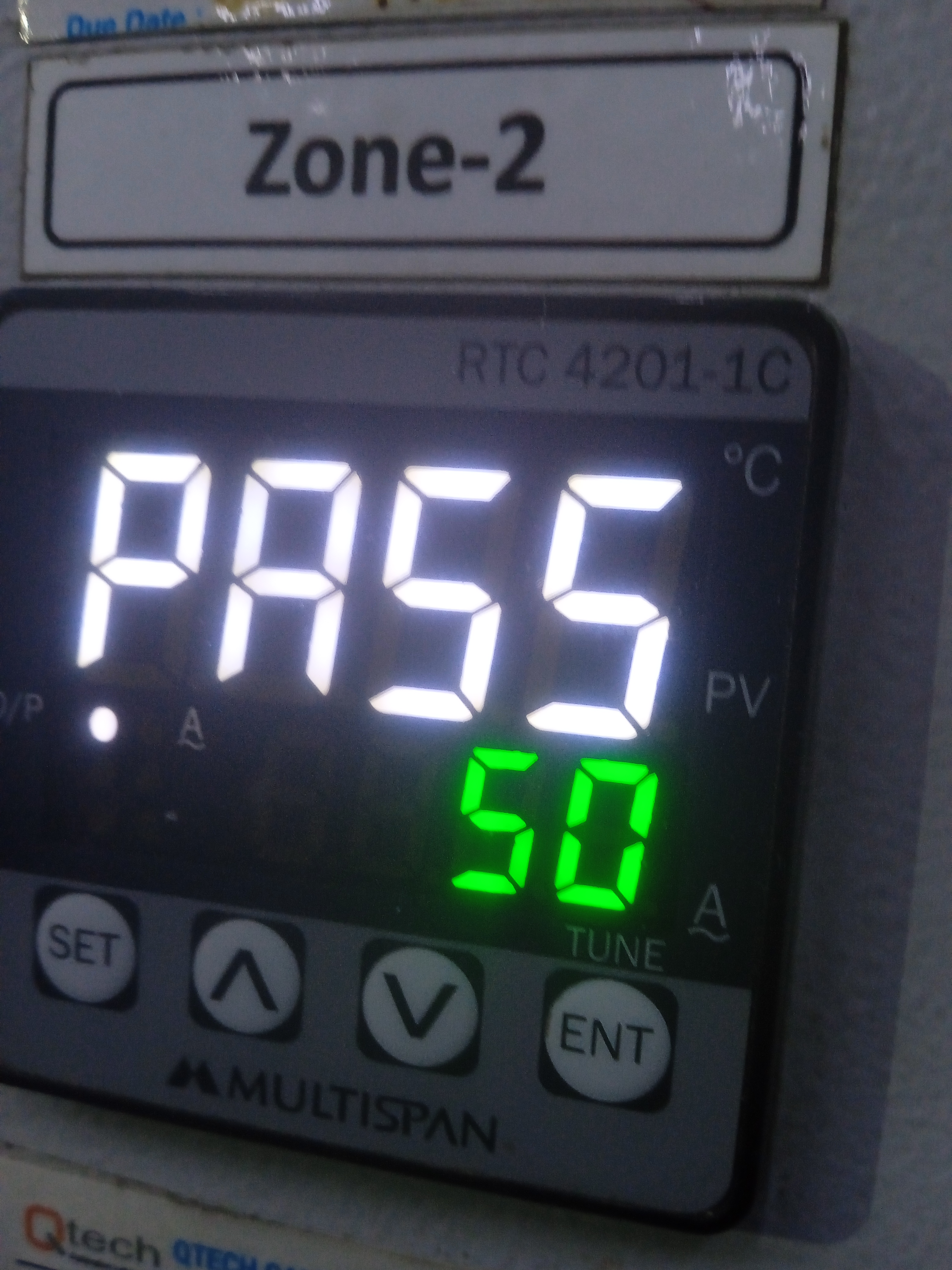

PIDCONTROLLER
PID4201-1C
MultispanControlInstrumentsPvtLtd
72/B,Phase1,GIDCEstate,Vatva,Ahmedabad-382445,Gujarat,India.
marketing@multispanindia.com
PID-4201-1C
+91-9978991471
www.multispanindia.com
TechnicalSpecification
Model
UPPER:- 4 Digit 7 seg 0.56", Red LED Display
Display
LOWER:- 4 Digit 7 seg 0.33", green LED Display
Size (mm)
Panel Cutout
Input
Temperature:J type: 0 to 600°C/ K type: 0 to 1200°C
Range
Ampere : 0.0 to 30.0 A (1 CT)
Control Action
Output
1relay parallel SSR,230V AC,5A;SSR,12V DC,30mA
Power Supply
Protection
Level
Operating
Temperature
Relative
Humidity
Working:-
1) If Sensor Connection is reverse, Display will show "SRE" message.
2) If Sensor is not connected, Display will show Open message.
3) While pressing
key for 5 Sec. Lower Display start scrolling and show set
Temperature (For Exa. '150',150°is setpoint) and ampere
(For Exa. 'A 08.0', 8 Amp is actual current).
4) If
key press for 5 Sec. Then lower Display hold on any one value, To show
other value press
5) Every time the instrument is turned ON, Following pattern will be displayed
POWER ON
8888. .
. .
All digit segment will be turned ON for 1 sec
8
. .
8
8
. .
8
J
Previous or default sensor input and control action will be
displayed for 2 sec
p
I
D
25
Process Value
0.0
Current
Page-1
PID-4201-1C
48 (H) X 48 (W) X 95 (D) mm
45 X 45 mm
J ,K ,PT,PT.1
C /PT.1:- -99.9 to 400.0
PT type: -99 to 400°
PID/ ON-OFF (selectable)
100 to 250V AC,50/60 Hz, Approx 3VA
IP-65 (Front side) As per IS/IEC 60529 : 2001
0°C To 55°C
Up to 95% RH Non Condensing
key.
