MAINTENANCE

1. The equipment should be cleaned regularly to avoid blockage
of ventilating parts.
2. Clean the equipment with a clean soft cloth. Do not use
isopropyl alcohol or any other cleaning agent.
3. Fusible resistor must not be replaced by operator.

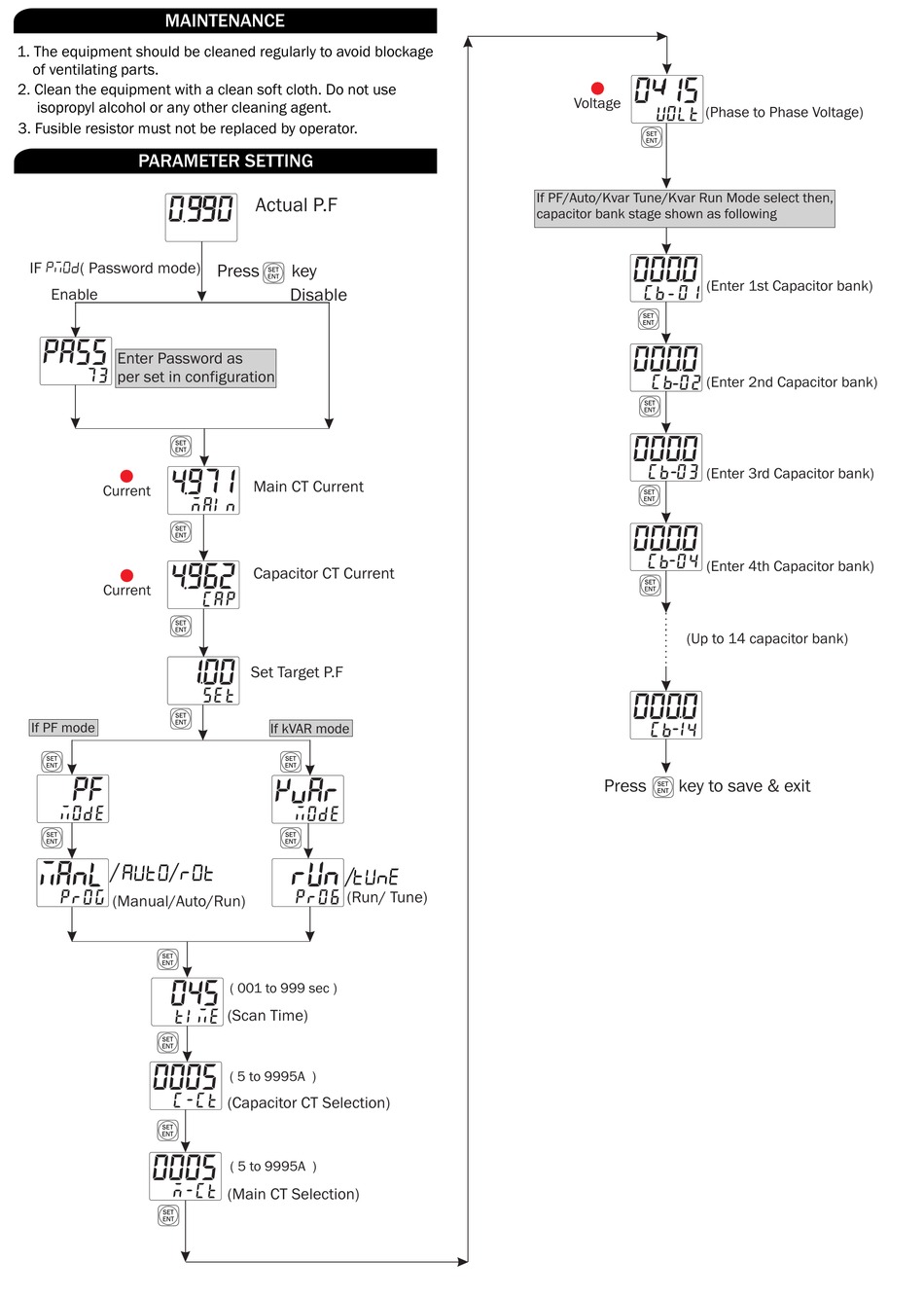

PARAMETER SETTING

IF PMOD( Password mode)
Enable
Enter Password as
per set in configuration
Current
Current
If PF mode
/ /
AUTO R0t
(Manual/Auto/Run)
Actual P.F
Press key
Disable
Main CT Current
Capacitor CT Current
Set Target P.F
If kVAR mode
/
TUNE
(Run/ Tune)
( 001 to 999 sec )
(Scan Time)
( 5 to 9995A )
(Capacitor CT Selection)
( 5 to 9995A )
(Main CT Selection)
Voltage
(Phase to Phase Voltage)
If PF/Auto/Kvar Tune/Kvar Run Mode select then,
capacitor bank stage shown as following
(Enter 1st Capacitor bank)
(Enter 2nd Capacitor bank)
(Enter 3rd Capacitor bank)
(Enter 4th Capacitor bank)
(Up to 14 capacitor bank)
Press key to save & exit
