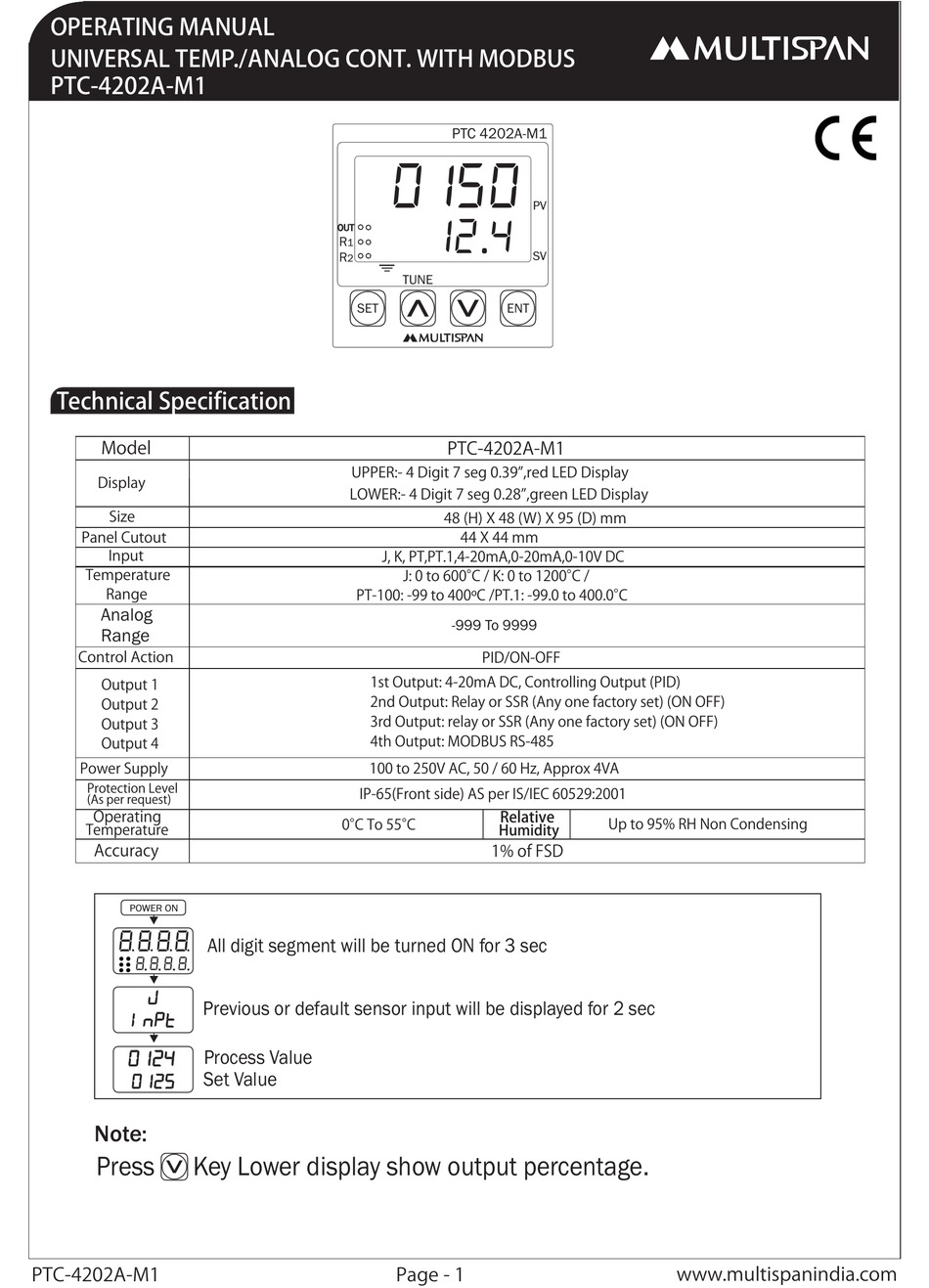

MULTISPAN PTC-4202A-M1 Operating Manual

OPERATING MANUAL
OPERATING MANUAL
UNIVERSAL TEMP./ANALOG CONT. WITH MODBUS PID TEMPERATURE CONTROLLER
PTC-4202A-M1
UTC-121P,221P & 421P
Technical Specification
Technical Specification
Model
Display
Size
Panel Cutout
Input
Temperature
Range
Analog
Range
Control Action
Output 1
Output 2
Output 3
Output 4
Power Supply
Protection Level
(As per request)
Operating
Temperature
Accuracy
POWER ON
  
   

Previous or default sensor input will be displayed for 2 sec

 Process Value
Set Value

Note:
Press Key Lower display show output percentage.
PTC-4202A-M1
OUT
R
1
_
R
_
2
SET
UPPER:- 4 Digit 7 seg 0.39 ,red LED Display
LOWER:- 4 Digit 7 seg 0.28 ,green LED Display
J, K, PT,PT.1,4-20mA,0-20mA,0-10V DC
PT-100: -99 to 400ºC /PT.1: -99.0 to 400.0° C
1st Output: 4-20mA DC, Controlling Output (PID)
2nd Output: Relay or SSR (Any one factory set) (ON OFF)
3rd Output: relay or SSR (Any one factory set) (ON OFF)
4th Output: MODBUS RS-485
100 to 250V AC, 50 / 60 Hz, Approx 4VA
IP-65(Front side) AS per IS/IEC 60529:2001
0° C To 55° C
All digit segment will be turned ON for 3 sec
PTC 4202A-M1

PV
.
SV
_
TUNE
ENT
PTC-4202A-M1
48 (H) X 48 (W) X 95 (D) mm
44 X 44 mm
J: 0 to 600° C / K: 0 to 1200° C /
-999 To 9999
PID/ON-OFF
Relative
Humidity
1% of FSD
Page - 1
Up to 95% RH Non Condensing
