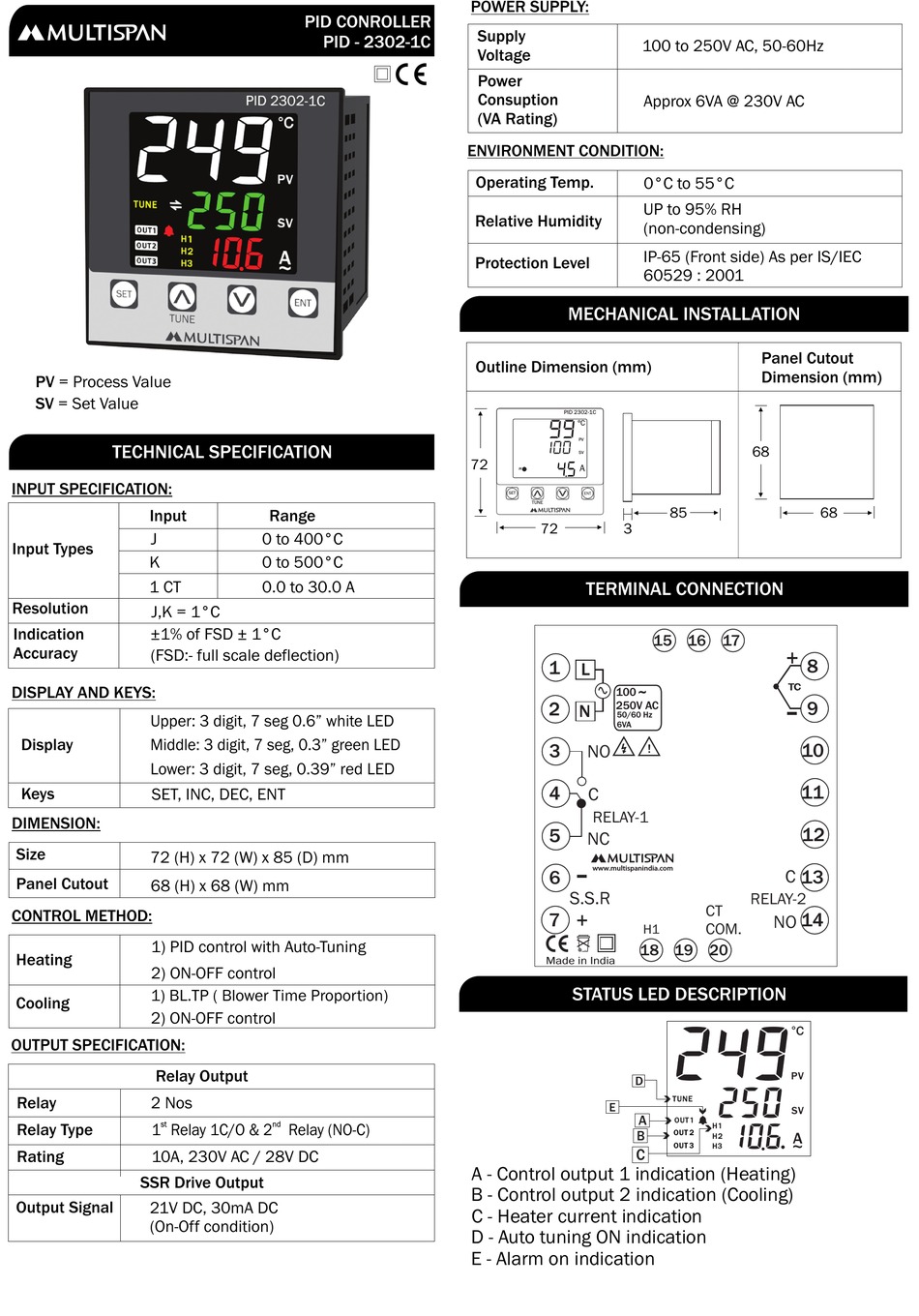

MULTISPAN PID-2302-1C Installation Manuallines

PV = Process Value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
J
Input Types
K
1 CT
Resolution
J,K = 1°C
Indication ±1% of FSD ± 1°C
Accuracy
(FSD:- full scale deflection)
DISPLAY AND KEYS:
Upper: 3 digit, 7 seg 0.6" white LED
Display Middle: 3 digit, 7 seg, 0.3" green LED
Lower: 3 digit, 7 seg, 0.39" red LED
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
72 (H) x 72 (W) x 85 (D) mm
Panel Cutout
68 (H) x 68 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
1) BL.TP ( Blower Time Proportion)
Cooling
2) ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay 2 Nos
st
Relay Type 1 Relay 1C/O & 2 Relay (NO-C)
Rating 10A, 230V AC / 28V DC
SSR Drive Output
Output Signal 21V DC, 30mA DC
(On-Off condition)

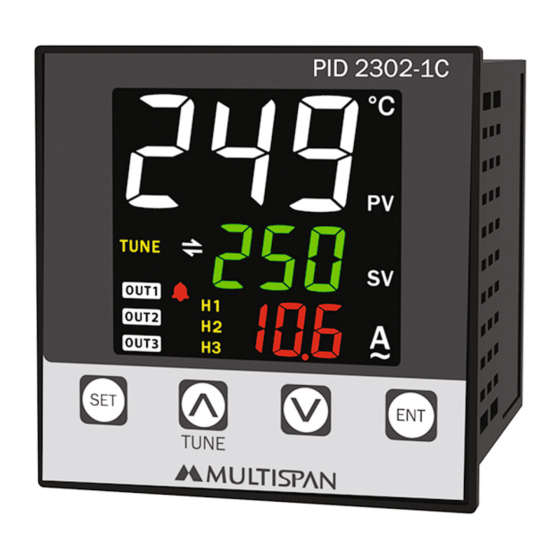

PID CONROLLER
PID - 2302-1C
Range
0 to 400°C
0 to 500°C
0.0 to 30.0 A
nd
POWER SUPPLY:
Supply
Voltage
Power
Consuption
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
Relative Humidity
Protection Level
MECHANICAL INSTALLATION
Outline Dimension (mm)
PID 2302-1C
99 ºC
PV
100
SV
72
45
H
SET
TUNE
72
3
TERMINAL CONNECTION
1
L
~
100
250V AC
2
N
50/60 Hz
6VA
3 NO
4
C
RELAY-1
5
NC
www.multispanindia.com
-
6
S.S.R
7
18
Made in India
STATUS LED DESCRIPTION
D
E
A
B
C
A - Control output 1 indication (Heating)
B - Control output 2 indication (Cooling)
C - Heater current indication
D - Auto tuning ON indication
E - Alarm on indication
100 to 250V AC, 50-60Hz
Approx 6VA @ 230V AC
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
68
85
15
16 17
8
TC
9
-
10
!
11
12
C 13
RELAY-2
CT
14
NO
COM.
H1
19 20
c
°
PV
TUNE
SV
1
OUT
1
H
OUT 2
A
H2
~
OUT 3 H3
68
