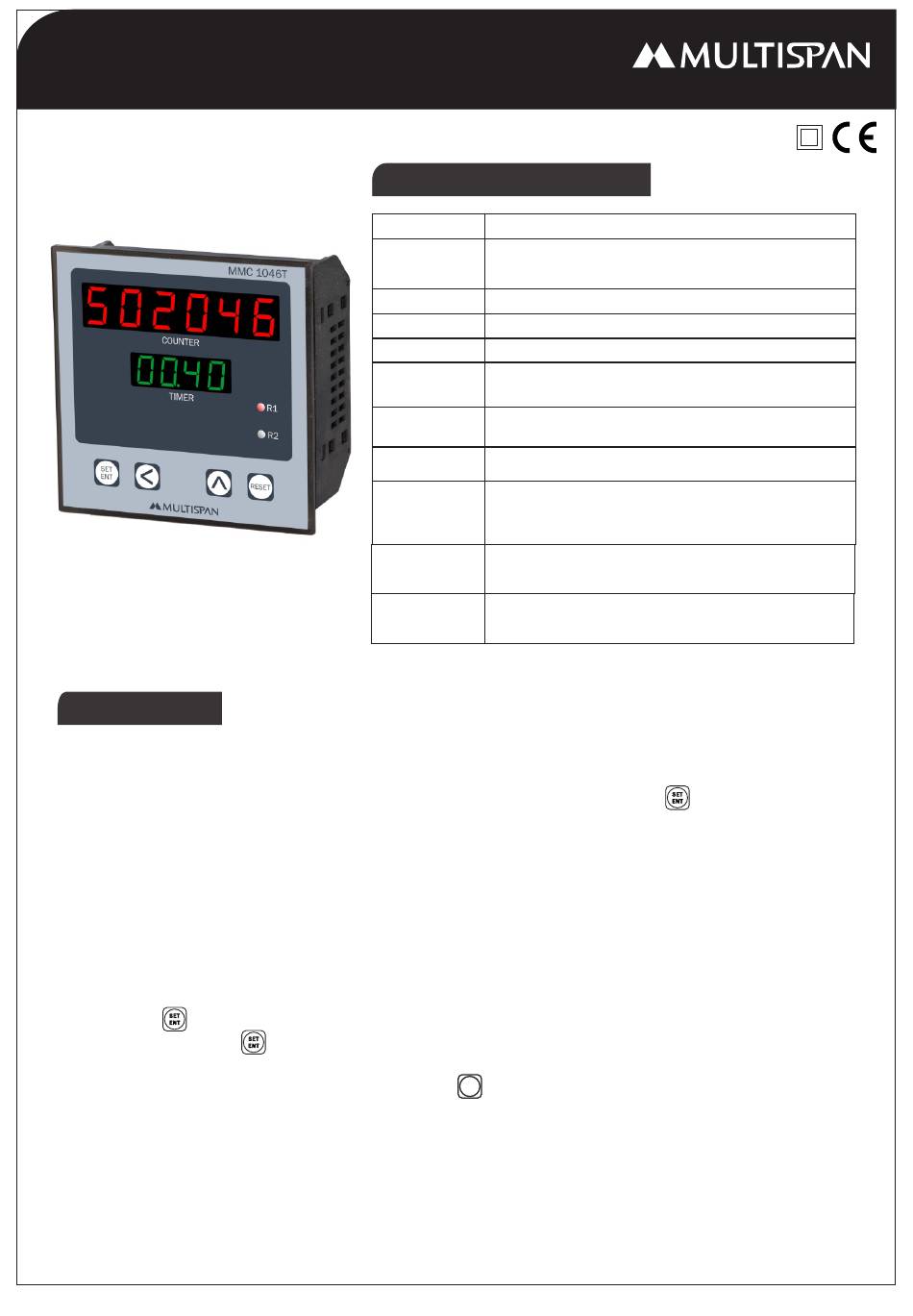

MULTISPAN MMC-1046T Operating Manual

OPERATING MANUAL
Note:
PROGRAMABLE COUNTER

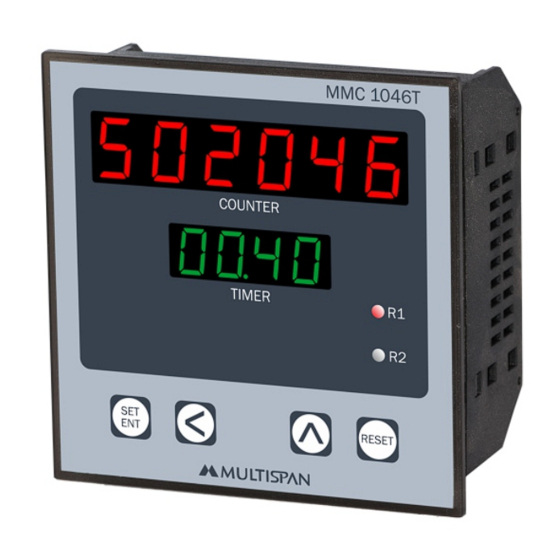

MMC-1046T
Working
1. Make all connection properly according to the "Connection Diagram". Then ON the
instrument, set the "Set Time" according to your requirement press
to store new value in memory.
2. When a pulse Input is given to NPN Proximity sensor, than Upper Display will increase
Counts & Timing will start in Lower Display. Between running time if Pulse of CMS is
given than timing will stop. At the end of Timing Relay will turn Off.
3. If you don't press any key for 5 seconds, the previous value of set point is retained and
the instrument goes in to run mode.
4. Press
only after Press
5. If you want to reset your instrument Press
Product improvement and upgrade is a constant procedure. So for more updated operating information and support,
Please contact our helpline : +91-9978991474/76/82 or Email at service@multispanindia.com
MMC-1046T MMC-1046T
to store set value in memory, simultaneously instrument goes in run mode.
key the new value is stored.

Technical Specification

Model
UPPER:- 6 Digit 7 seg 0.56",red LED Display
Display
LOWER:- 4 Digit 7 seg 0.4",green LED Display
Size (mm)
96 (H) X 96 (W) X 50 (D) mm
Panel Cutout
Range
NPN Proxy, NPN Color mark sensor (CMS),
Input
Output 1Relay, 1C/O 230V AC
Power Supply
100 to 270V AC,50/60 Hz, Approx 4VA
Protection
IP-65 (Front side) As per IS/IEC 60529 : 2001
Level
Operating
Temperature
Relative
Up to 95% RH Non Condition
Humidity
key.
RESET
Page - 1 Page - 4
MMC-1046T
92 X 92 mm
0 To 99.99 Second
Micro switch
0°C To 55°C
key
www.multispanindia.com www.multispanindia.com
Ver: 1901
