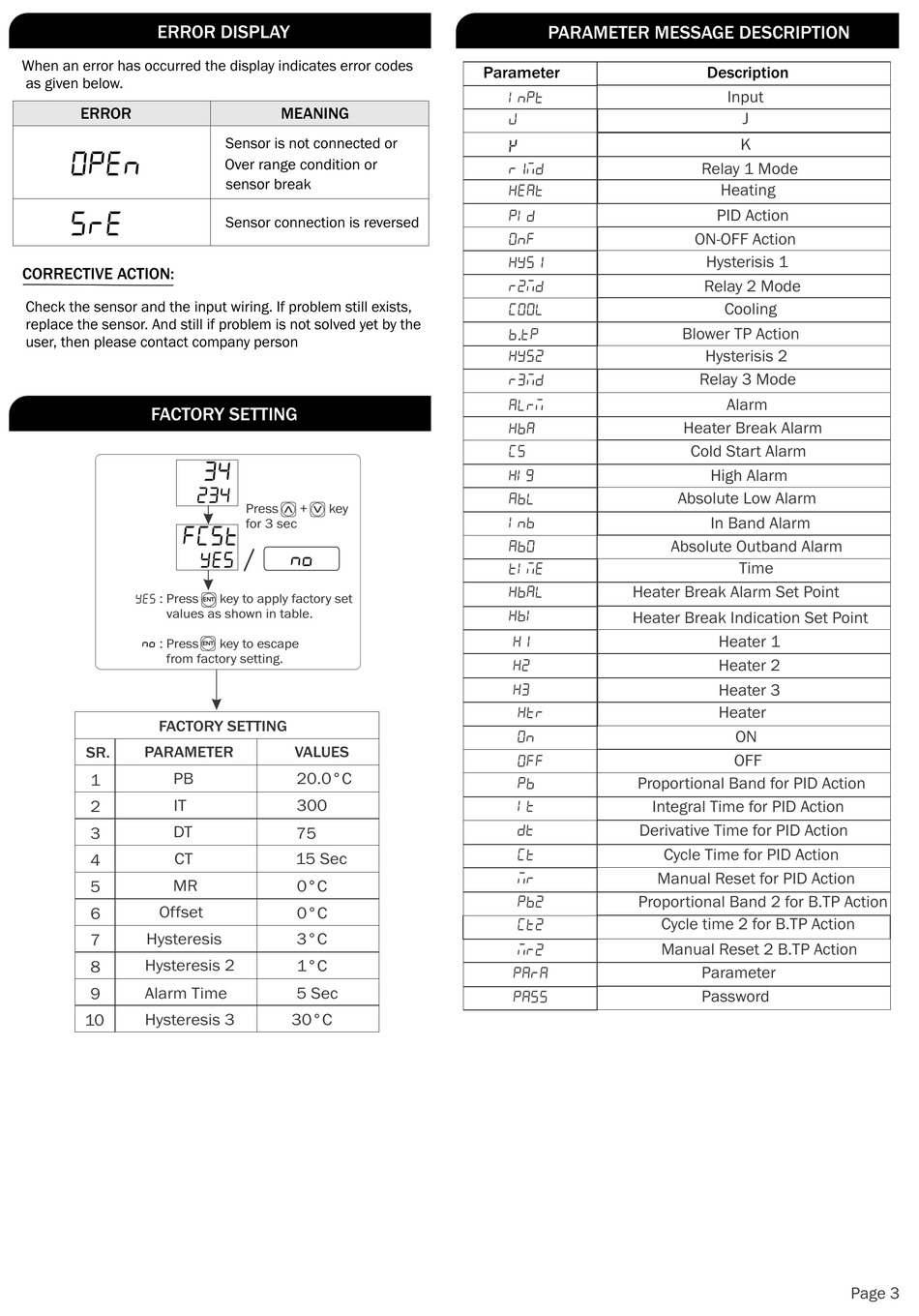

ERROR DISPLAY

When an error has occurred the display indicates error codes
as given below.
ERROR
OPEN
SRE
CORRECTIVE ACTION:
Check the sensor and the input wiring. If problem still exists,
replace the sensor. And still if problem is not solved yet by the
user, then please contact company person

FACTORY SETTING

fCst
yes : Press
values as shown in table.
no : Press
from factory setting.
FACTORY SETTING
SR. PARAMETER
PB
1
IT
2
DT
3
CT
4
MR
5
Offset
6
Hysteresis
7
Hysteresis 2
8
Alarm Time
9
10 Hysteresis 3
MEANING
Sensor is not connected or
Over range condition or
sensor break
Sensor connection is reversed
34
234
Press + key
for 3 sec
no
YES
key to apply factory set
ENT
key to escape
ENT
VALUES
20.0°C
300
75
15 Sec
0°C
0°C
3°C
1°C
5 Sec
30°C
PARAMETER MESSAGE DESCRIPTION
Parameter
INPT
J
R1MD
HEAT
PID
ONF
HYS1
R2MD
COOL
B.TP
HYS2
R3MD
ALRM
HBA
CS
HIG
ABL
INB
ABO
TIME
Heater Break Alarm Set Point
HBAL
HbI
Heater Break Indication Set Point
H1
H2
H3
HTR
ON
OFF
Proportional Band for PID Action
PB
IT Integral Time for PID Action
DT Derivative Time for PID Action
CT
MR
Pb2 Proportional Band 2 for B.TP Action
Ct2
mr2
para
pass
Description
Input
J
K
Relay 1 Mode
Heating
PID Action
ON-OFF Action
Hysterisis 1
Relay 2 Mode
Cooling
Blower TP Action
Hysterisis 2
Relay 3 Mode
Alarm
Heater Break Alarm
Cold Start Alarm
High Alarm
Absolute Low Alarm
In Band Alarm
Absolute Outband Alarm
Time
Heater 1
Heater 2
Heater 3
Heater
ON
OFF
Cycle Time for PID Action
Manual Reset for PID Action
Cycle time 2 for B.TP Action
Manual Reset 2 B.TP Action
Parameter
Password
Page 3
