FEATURES
1.5KV isolation between supply, input &
output
Linearized O/P
Zero & span correction facility through
trim port
Fast Response time <150ms
Din Rail Mounting
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
4- 20 mA DC
<100
Input Inpedance
CMRR
>120dp (Typical)
Temperature
<100
Co-efficient
DIMENSION:
Size (HxWxD) mm
76 X 27 X 85
SIGNAL ISOLATOR
MI-631
Ω
PPM
OUTPUT SPECIFICATION:
Output
Response Type
Output Inpedance
POWER SUPPLY:
Auxiliary Voltage
Power Consumption
( VA Rating )
ISOLATION:
Isolation Type
Isolation between
supply, input & Output
MECHANICAL INSTALLATION
Front view (mm)
27
76
TERMINAL CONNECTION
MI 631-A2-A A
Supply
100 To 270V AC
50/60Hz, 5VA
!
Input
4 To 20mA DC
www.multispanindia.com
4 to 20mA DC
<150ms
Ω
<500
100 to 270V AC,50/60Hz
5VA@230V AC
Optical - 3 way
At least 1.5KV AC for 1 min
Side view (mm)
85
76
Output
4 To 20mA DC

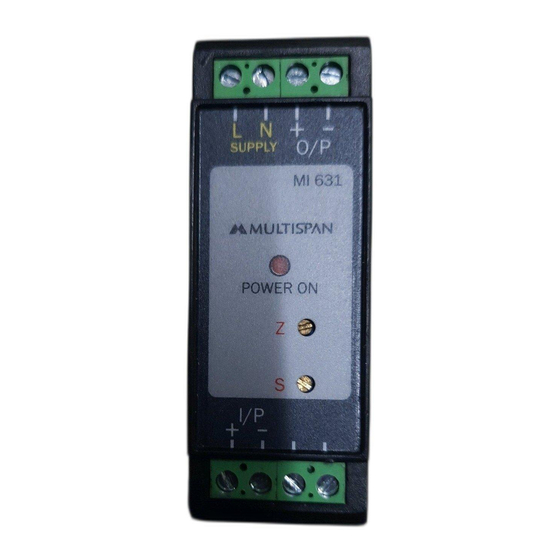

L
N
SUPPLY O/P
MI 631
POWER ON
Z
S
I/P
Made in India
Advertisement
Related Manuals for MULTISPAN MI-631
Summary of Contents for MULTISPAN MI-631
- Page 1 OUTPUT SPECIFICATION: SIGNAL ISOLATOR MI-631 Output 4 to 20mA DC Response Type <150ms Output Inpedance Ω <500 POWER SUPPLY: Auxiliary Voltage 100 to 270V AC,50/60Hz Power Consumption 5VA@230V AC ( VA Rating ) ISOLATION: Isolation Type Optical - 3 way Isolation between At least 1.5KV AC for 1 min...
- Page 2 SAFETY PRECAUTION MECHANICAL INSTALLATION GUIDELINES 1) To install the instrument on a DIN rail, raise the clamp at All safety related codifications, symbols and instructions the back of the instrument and place it on the rail. Now tha appear in this operating manual or on the equipment must release the clamp, so the instrument fits on the DIN rail.
