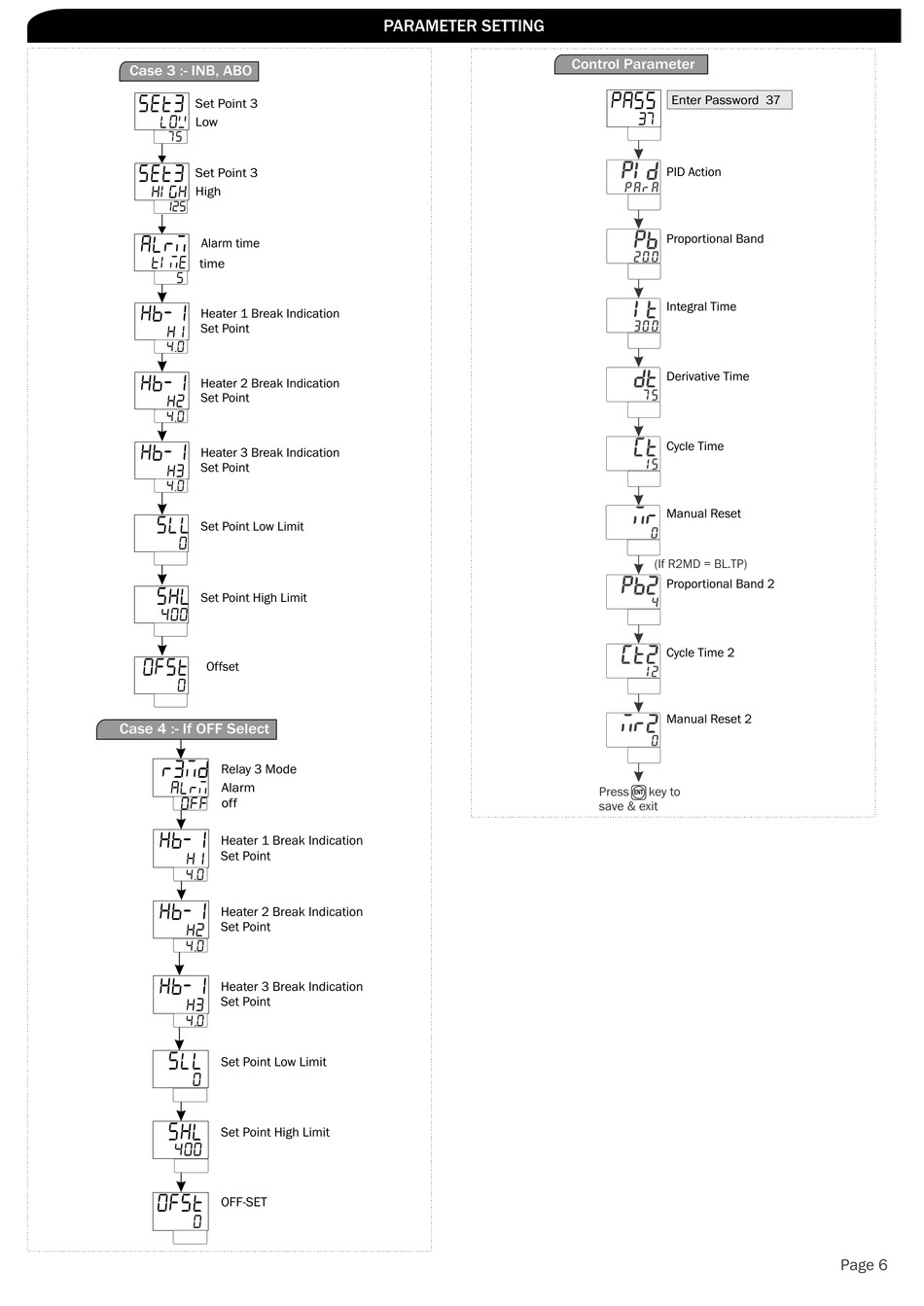

MULTISPAN PID 2303-3C Manual page 6

Case 3 :- INB, ABO
SET3
Set Point 3
LOW
Low
75
SET3
Set Point 3
HI H
High
125
ALRM
Alarm time
TIME
time
5
HB-1
Heater 1 Break Indication
Set Point
H1
4.0
HB-1
Heater 2 Break Indication
Set Point
H2
4.0
HB-1
Heater 3 Break Indication
Set Point
H3
4.0
SLL
Set Point Low Limit
0
SHL
Set Point High Limit
400
OFST
Offset
0
Case 4 :- If OFF Select
r3md
Relay 3 Mode
ALRM
Alarm
OFF
off
HB-1
Heater 1 Break Indication
Set Point
H1
4.0
HB-1
Heater 2 Break Indication
Set Point
H2
4.0
HB-1
Heater 3 Break Indication
Set Point
H3
4.0
SLL
Set Point Low Limit
0
SHL
Set Point High Limit
400
OFST
OFF-SET
0
PARAMETER SETTING
Control Parameter
pass
Enter Password 37
37
PID Action
Proportional Band
Integral Time
Derivative Time
Cycle Time
Manual Reset
(If R2MD = BL.TP)
Proportional Band 2
Cycle Time 2
Manual Reset 2
Press key to
ENT
save & exit
Page 6
