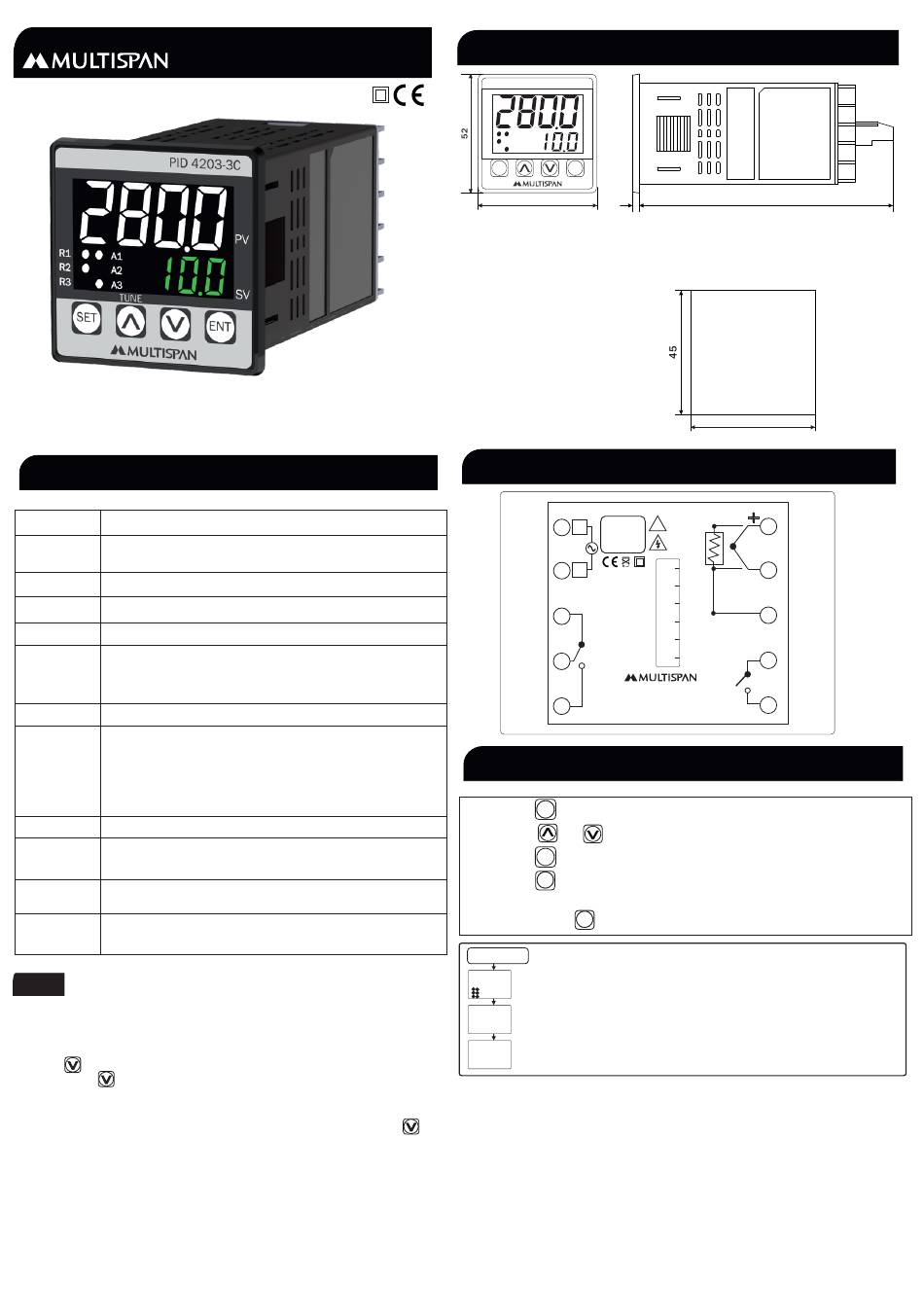

MULTISPAN PID-4203-3C Manual

TECHNICAL SPECIFICATION
Model
UPPER:- 4 Digit 7 seg 0.56"
Display
LOWER:- 4 Digit 7 seg 0.33"
Size (mm)
52 (H) X 52 (W) X 111 (D) mm
Panel Cutout
Input
Temperature:J type: 0 to 600°C/ K type: 0 to 1200°C
Range
PT-100: -99 To 400°C /PT.1:- -99.9 to 400.0°C
Ampere : 0.0 to 60.0 A (3 CT)
PID/ ON-OFF (selectable)
Control Action
3 Relay, 1C/O Contact,5A, 230V AC ,
12V DC approx,30mA DC
Output
1 Relay-For Heating PID/ON-OFF Selection
2Relay-For Blower TP/ON-OFF Selection
3Relay- For Alarm
Power Supply
100 to 270V AC,50/60 Hz, Approx 3VA
Protection
IP-65 (Front side) As per IS/IEC 60529 : 2001
Level
Operating
0°C To 55°C
Temperature
Relative
Up to 95% RH Non Condensing
Humidity
Note:-
1) If Sensor Connection is reverse, Display will show "SRE" message.
2) If Sensor is not connected, Display will show Open message.
3) Set 2 is relative to Set 1.
4) Press key to see current on lower display (H1,H2,H3 & Total Current).
- On pressing key for 4 sec, it changes from Scroll to Hold and vice-versa.
- During Scroll mode, every 2 sec all the individuals currents and total current
gets scrolled.
- And during Hold mode, it holds the total current & by each press of
individual currents can be seen and after 10 sec it automatically jumps to
total current.
5) For Heater Break Indication, if any phase Heater breaks down than upper display will
indicate HBR and Lower display will indicate corresponding heater H1,H2,H3 blink
for 2 sec.
6) Every time the instrument is turn ON, following pattern will be displayed.
PID
CONTROLLER
PID-4203-3C
Display Color:
Upper : White Or Red
Lower : Green
PID-4203-3C
45 X 45 mm
J ,K ,PT,PT.1
MECHANICAL INSTALLATION
PID 4203-3C
PV
R1 A1
R2 A2
R3 A3 SV
TUNE
SET ENT
52
FRONT VIEW
All dimensions are in mm
TERMINAL CONNECTION
L
1
N
2
3
NC
C
4
R1
NO
5
1) Press key to go parameter setting.
PRG
2) Press or
3) Press key to save change in setting
ENT
4) Press key for 8 sec to start/stop PID AUTO TUNING
ENT
5) If you want to show the set point or Ampere in the lower
display use
ENT
POWER ON
8888. . . .
All digit segment will be turned ON for 1 sec
8 . . 8 8 . . 8
J Previous or default sensor input and control action will be
p I D displayed for 2 sec
25
Process Value
0.0 Current
key
3
111
RIGHT SIDE VIEW
Panel Cutout
45
100

~
6
!
270V
AC
50/60
HZ





T/C
3VA
7
NO
-
Made in India
R3
C
RTD
CT
COM
8
H3
H2
H1
9
C
R2
www.multispanindia.com
NO 10
KEY OPERATION
key to change value or to select option.
Key.
