SR.
PARAMETER
1 PB
IT
2
DT
3
CT
4
5
MR
6
OFFSET
7
HYS1
8
HYS2
C-PB
9
C-ON
10
11
C-OFF
12 R1DL
R2DL
13
14
ALTM

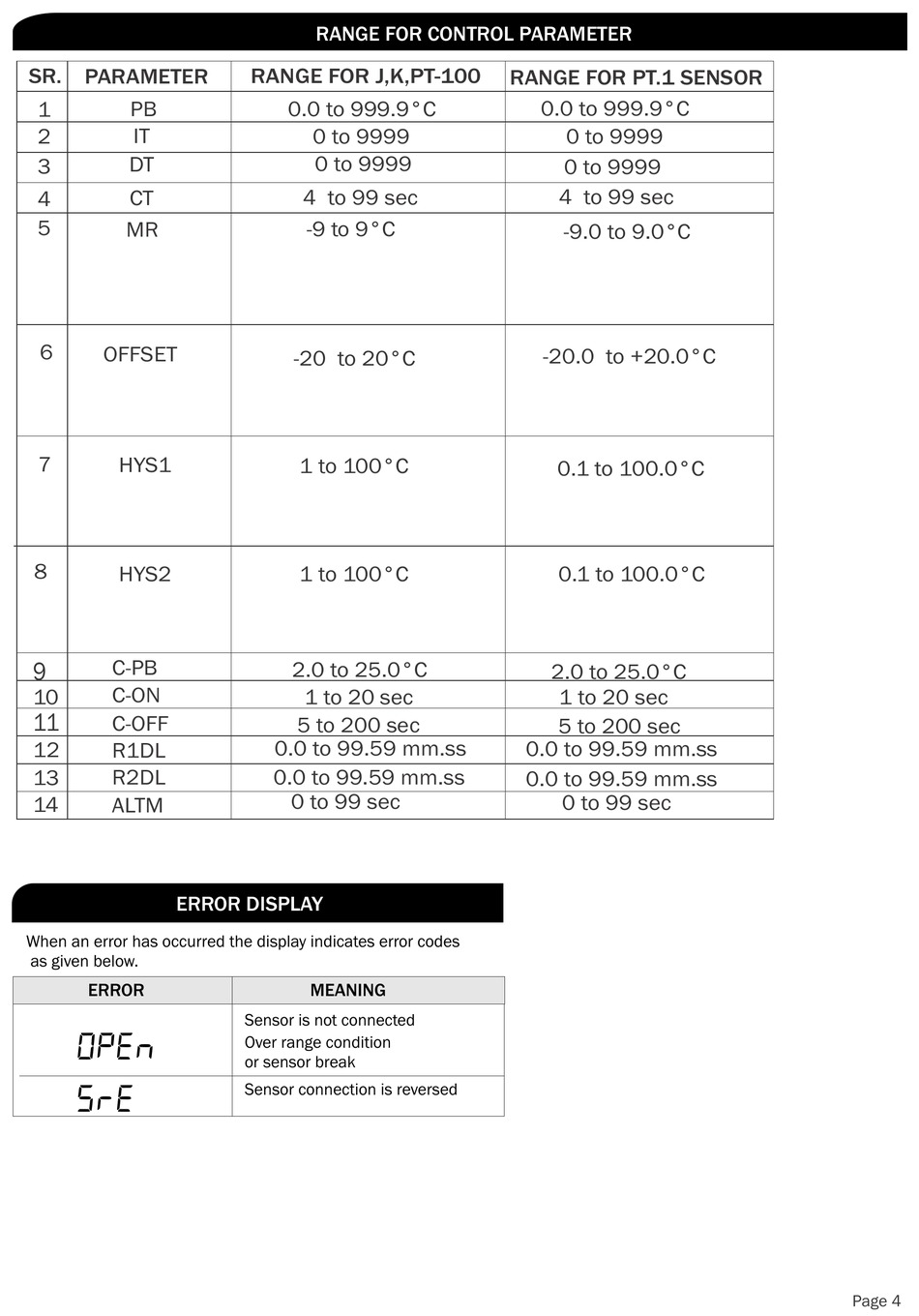

ERROR DISPLAY

When an error has occurred the display indicates error codes
as given below.
ERROR
OPEN
SRE
RANGE FOR CONTROL PARAMETER
RANGE FOR J,K,PT-100
0.0 to 999.9°C
0 to 9999
0 to 9999
4 to 99 sec
-9 to 9°C
-20 to 20°C
1 to 100°C
1 to 100°C
2.0 to 25.0°C
1 to 20 sec
5 to 200 sec
0.0 to 99.59 mm.ss
0.0 to 99.59 mm.ss
0 to 99 sec
MEANING
Sensor is not connected
Over range condition
or sensor break
Sensor connection is reversed
RANGE FOR PT.1 SENSOR
0.0 to 999.9°C
0 to 9999
0 to 9999
4 to 99 sec
-9.0 to 9.0°C
-20.0 to +20.0°C
0.1 to 100.0°C
0.1 to 100.0°C
2.0 to 25.0°C
1 to 20 sec
5 to 200 sec
0.0 to 99.59 mm.ss
0.0 to 99.59 mm.ss
0 to 99 sec
