Appendices

Appendix A – Assembling/disassembling the device
It is necessary to take the device apart to get access to the internal SIM-card reader, Micro SD-card
reader, and the configuration jumpers. The bottom part of the encapsulation can be removed after
removing the four Torx T7 screws found in each corner.
Please follow the following steps to get inside the device:
1. Place the device upside-down on a plain surface. Please make sure that the surface is soft to
avoid scratching the top of the encapsulation.
2. Remove the four screws located on the corners using a Torx T7 screwdriver.
3. Lift the bottom part of the encapsulation carefully upwards.

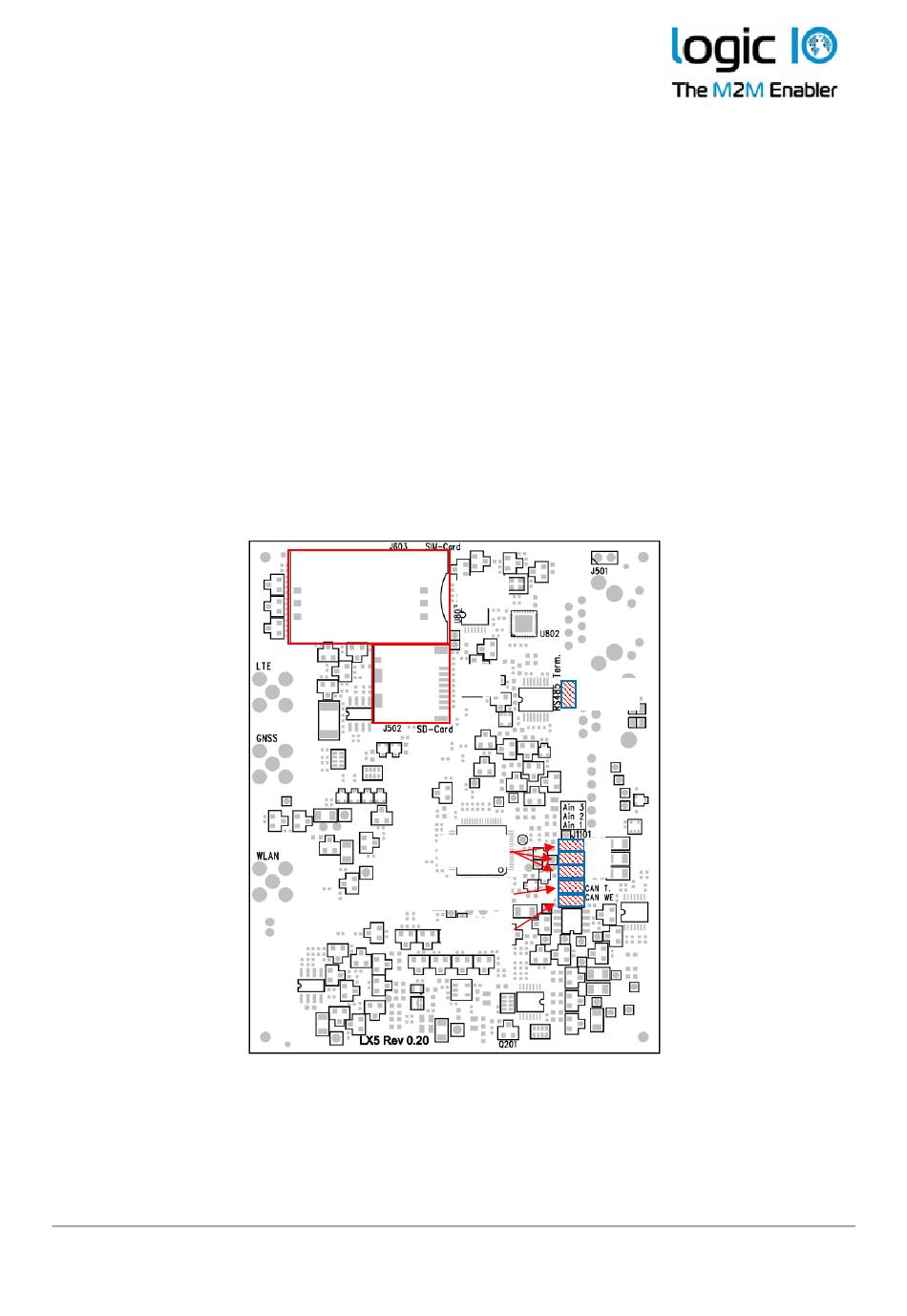

The SIM and Micro SD-Card readers and the jumpers are located as follows:
The assembly process of the encapsulation is in the reverse order of the above steps.
Please notice that the screws must be fastened with a torque of max. 0.5 Nm to avoid damaging
the encapsulation.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark
SIM-Card
Reader
SD-Card
RS485 line
Reader
termination
Analog input
jumpers
CAN bus
line termination
CAN bus
write enable
Page 30 of 37
Ain 3
Ain 2
Ain 1
