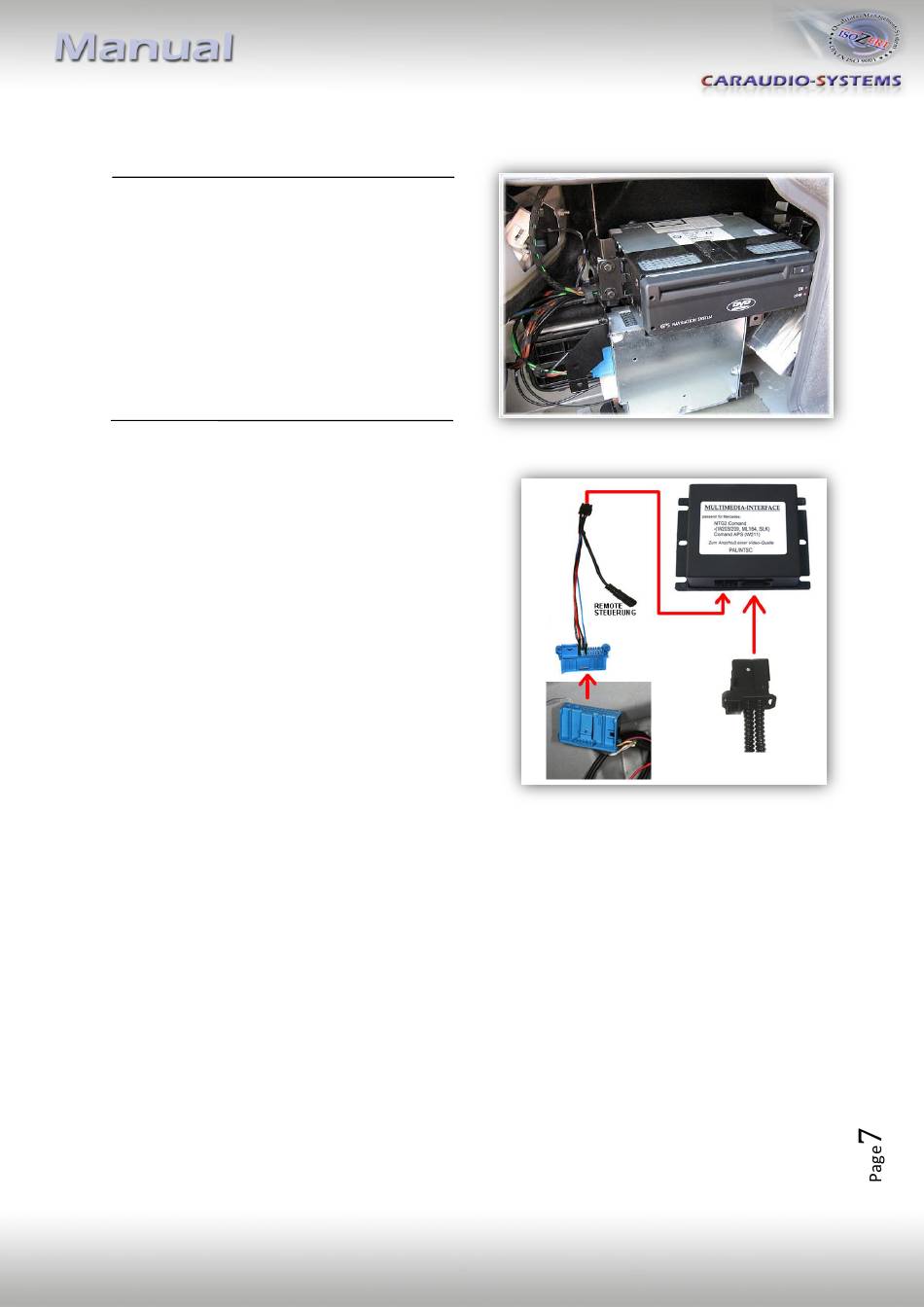

Installation of MOST®-box C2C-M336
The fibre optical interface installation is
made at the navigation computer, which
is located at the left side in the trunk
behind a cover and has to be removed.
The factory TV-tuner must be uninstalled.
Remove the factory optical leads of the factory
TV-tuner port (blue female connector) and connect
it to the black male MOST®-connector enclosed to
harness C2C-BM01. Pay attention to the
directional arrow on the optical lead connectors.
Connect the black male MOST®-connector to the
female MOST®-connector on the rear of the
MOST®-box C2C-M336 (OPTICAL).
Connect the blue male connector of harness
C2C-BM01 to the factory TV-tuner port
Picture exemplary
(blue female connector).
Version 20.09.2017
Ci-C2-E65-TV
