Savant SSC-0008 Quick Reference Manual

The SmartControl 8 (SSC-0008) Quick Reference Guide provides information necessary to
install the SSC-0008, a solution for small business installations or system expansions.

Box Contents

(1) SmartControl 8 (SSC-0008)
(1) SSC-0008 Installation Kit (075-0123-xx)
(1) Power Supply 5V DC 2.5 Amps (025-0098-xx)
•
(2) 6-Pin Screw-Down Connector (028-9352-xx)
•
(8) Screws #6 x 1/4 Phillips (039-0143-xx)
•
(2) Side mount brackets (071-0625-xx)
•
(1) Quick Reference Guide (this document)

Optional Accessories

RS-232 Adapters (SAK-1000)
Infrared (IR) Emitters (IRB-1000)

Specifications

Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 1 cubic feet per minute (CFM) recommended
Maximum BTUs 10 BTUs per hour
Dimensions and Weight Dimensions and Weight
Height 1.59 in/4.04 cm
Width 4.31 in/10.96 cm
Depth 6.50 in/16.51 cm
Weight 3.00 lb/1.36 kg (shipping weight)
Power Power
Input Power 5V DC, 120-240V AC, 50/60 Hz
1.3 watts at 5V DC
Nominal Power Nominal Power
1.6 watts at 120V AC
2 watts at 5V DC
Maximum Power Maximum Power
3 watts at 120V AC
Compliance Compliance
Safety and Emissions FCC Part 15 | C-Tick | CE Mark
RoHS Compliant

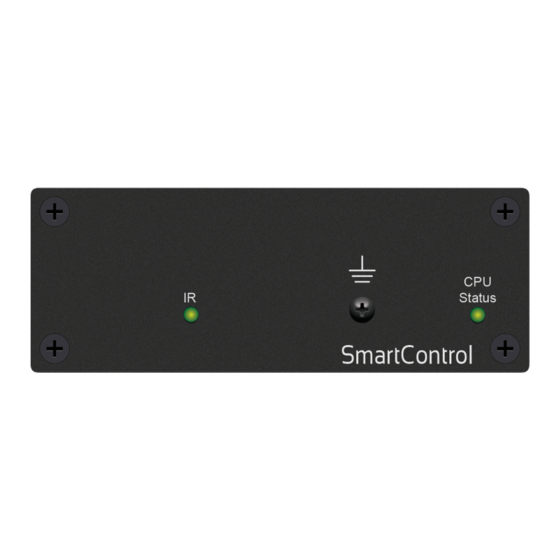

Front View of SSC-0008

Green indicates IR port signal activity.
IR LED
Off indicates no IR port activity.
Ground Connector (Optional)
Connect this terminal to a suitable ground surface.
Green indicates the Host has established communications
with the SSC-0008.
Green flashing indicates the SSC-0008 is ready (running with
DHCP IP address), but the Host has not established
communications with the SSC-0008.
Off indicates the SSC-0008 is resetting or is booting the
embedded firmware.
CPU Status LED Red indicates the Host has determined the firmware needs to
be updated, but a problem occurred during the process that
will initiate a reset.
Red flashing indicates the firmware is running, but has not
received a DHCP IP Address.
Amber indicates the Host is currently updating the firmware.
Amber flashing indicates the SSC-0008 has a valid link-local
IP Address and is waiting to connect to the Host.
SmartControl 8
(SSC-0008)
Quick Reference Guide
1 2

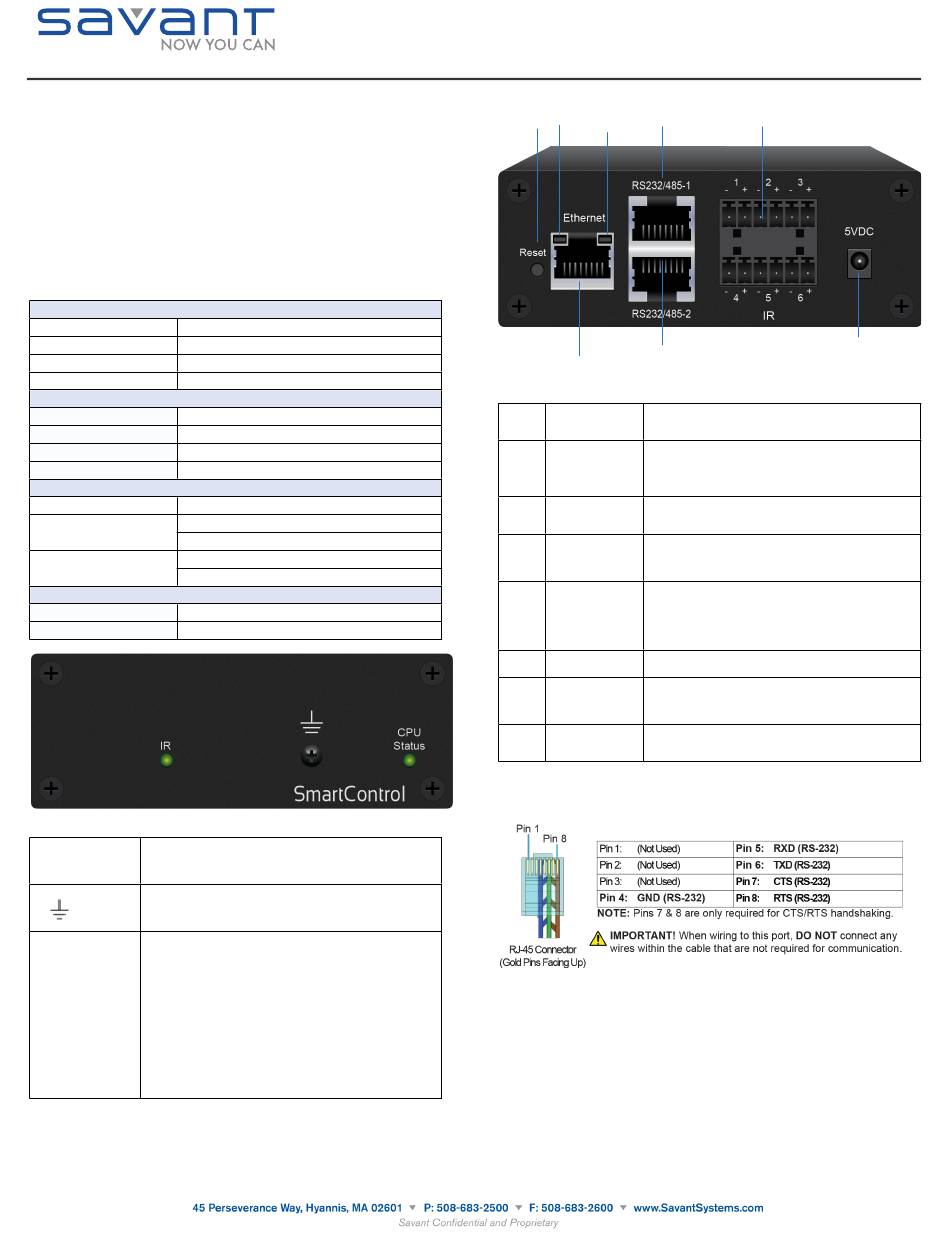

Rear View of SSC-0008

The next table describes the functionality on the rear of an SSC-0008.
1 Reset button
2 Link LED
3 Activity LED
4 RS232/485-1
5 IR (1-6 ports)
6 Ethernet
7 RS232/485-2
5V DC power
8
connector
NOTE: All components requiring 120-240V AC, 50/60 Hz source power must be connected to a
surge-protected circuit.

RS-232 Wiring

4
3
7
6
Resets the factory default DHCP mode.
Press and hold the reset button for 5+ seconds.
Green indicates an Ethernet link has been established.
Green flashing indicates Ethernet activity.
Off indicates an Ethernet link has not been established.
Green indicates an Ethernet speed of 100 Mb.
Off indicates an Ethernet speed of 10 Mb
8-pin RJ-45 female: Used to transmit and receive serial
binary data to and from devices. Support RS-232/422.
6-Pin Screw Down Plug in Connector: (5V tolerant only)
Sends IR signals to control devices with an IR input or IR
receiver via an IR flasher.
See IR Wiring for important precautions regarding IR
functionality before making any connections.
RJ-45 10/100 Base-T, auto-negotiating port.
8-pin RJ-45 female: Used to transmit and receive serial
binary data to and from devices. Support RS-232/422.
5V DC input power to the SSC-0008.
