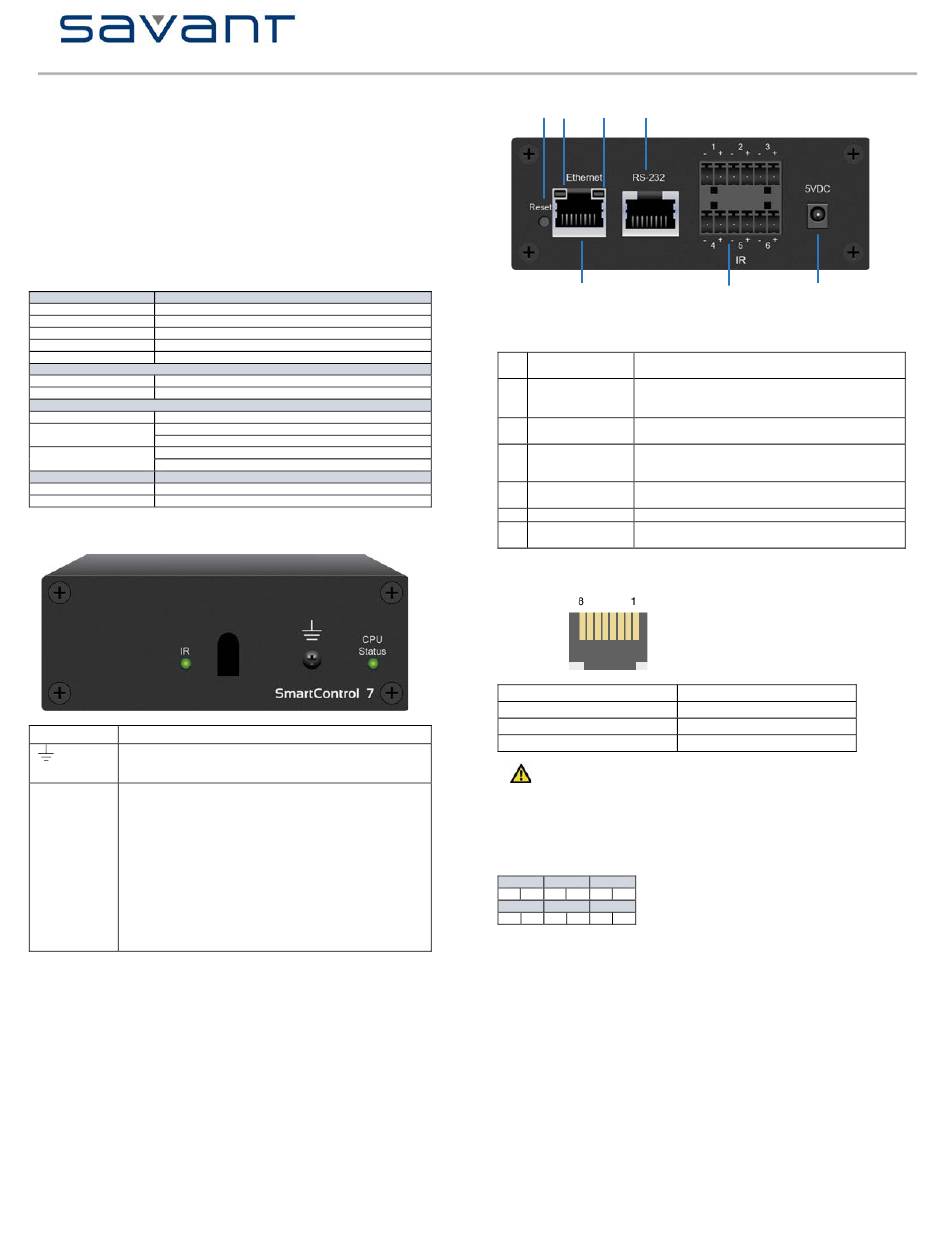

The Savant SmartControl 7 (SSC-0007) Quick Reference Guide provides information
necessary to operate the SSC-0007, a solution for small installations or system expansions.
Box Contents
(1) SmartControl 7(SSC-0007)
(1) SSC-0007 Installation Kit (075-0123-xx)
(1) Power Supply 5V DC 2.5 Amps (PWR-5025-xx)
(2) 6-Pin Screwdown Connector (028-9352-xx)
(8) Screws #6 x 1/4 Phillips (039-0143-xx)
(2) Side mount brackets (071-0625-xx)
(1) Quick Reference Guide (this document)
Optional Accessories
RS-232 Adapters-SAK-1000
Infrared (IR) Emitters-IRB-1000
Specifications
Environmental
Temperature
32º to 104º F (0º to 40º C)
Humidity
10% to 90% RH (non-condensing)
Cooling
1 cubic foot per minute (CFM) recommended
Maximum BTUs
10 BTUs per hour
Rack Space
1U
Dimensions and Weight
Dimensions (H x W x D)
1.59 in x 4.32 in x 6.50 in (4.04 cm x 10.97 cm x 16.51 cm)
Weight
3 lb/1.36 kg (shipping weight)
Power
Power Supply
120V AC, 50/60 Hz at 5V DC
Nominal Power
1.2 Watts at 5V DC
1.6 Watts at 120V AC
Maximum Power
2 Watts at 5V DC
3 Watts at 120V AC
Compliance
Safety and Emissions
FCC Part 15 | CE Mark | C-Tick
RoHS
Compliant

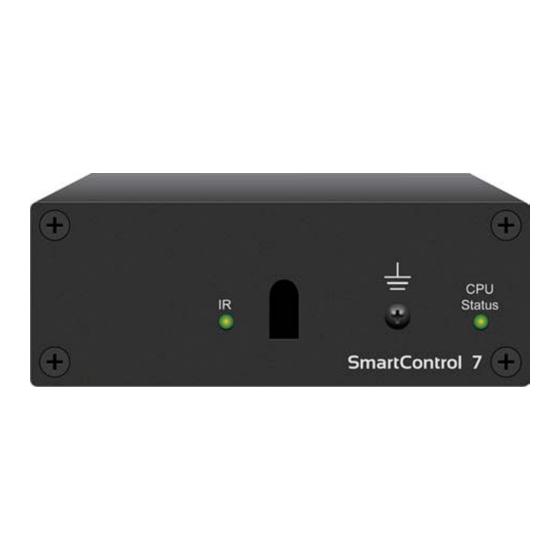

Front Panel
IR LED
Indicates IR port signal activity
Connect this terminal to a suitable ground surface.
(Optional)
Ground
Connector
CPU Status
Green indicates the Host has established communications with the
LED
SSC-0007.
Green flashing indicates the SSC-0007 is ready (running with
DHCP IP address), but the Host has not established
communications with the SSC-0007.
Off indicates the SSC-0007 is resetting or is booting the embedded
firmware.
Red indicates the Host has determined the firmware needs to be
updated, but a problem occurred during the process that will initiate
a reset.
Red flashing indicates the firmware is running, but has not received
a DHCP IP Address.
Amber indicates the Host is currently updating the firmware.
Amber flashing indicates the SSC-0007 has a valid link-local IP
Address and is waiting to connect to the Host.
Copyright © 2013 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
45 Perseverance Way, Hyannis, MA 02601
SmartControl 7
(SSC-0007)
Quick Reference Guide
Rear Panel
1
NOTE: All components requiring 120-230V AC, 50/60 Hz source power must be connected to a
surge-protected circuit.
1
Reset button
Ethernet
2
Link/Activity LED
Ethernet
3
Speed LED
4
RS-232
5
Ethernet
6
IR 1-6
7
5VDC Input Power
Controller RJ-45 (RS-232) Plug Pinouts
1
( Not   U sed   f or   R
2
( Not   U sed   f or   R
3
( Not   U sed   f or   R
4   G ND   ( RS-­‐232)
Important If you are using RJ-45 to DB-9 adaptors not supplied by Savant, be sure to
terminate any wires required for communication/control within the adaptor. Ensure that all wires
required for communication/control are not terminated in the connector. Also, ensure that the
unused wires in the connector are cut to prevent them shorting out, as they are still terminated
in the RJ-45 connector on the controller side.
IR Port Layout and Pinouts (two 6-pin screw down connectors)
1
-
+
-
4
-
+
-
Interconnect the Network
The SSC-0007 controller requires business class/commercial grade network equipment to
handle the IP traffic between Savant SmartSystems™network equipment. When configuring the
network ensure that all of the connected Savant units (including SSC-0007 controller and host)
are on the same local area network (subnet or LAN). When on the same network, Savant units
locate each other using the Bonjour® network protocol.
Network Changes Require Rebooting SSC-0007
The embedded processor used in the SSC-0007 controller, needs to be rebooted after
switching to a new network with a new IP address range. If you do not reboot, the controller will
not recognize the network and IP address changes. The CPU Status LED on the front panel of
the controller will start to flash and log reports in System Monitor.
Phone 508.683.2500
Fax 508.683.2600
2
3
4
5
6
Resets to factory default DHCP mode.
Press and hold the reset button for 5+ seconds.
Green indicates an Ethernet link has been established.
Green flashing indicates Ethernet activity.
Off indicates an Ethernet link has not been established.
Green indicates an Ethernet speed of 100 Mb.
Off indicates an Ethernet speed of 10 Mb.
Port Type: RJ-45
Used to transmit and receive serial binary data
transmission. Flow Control (Handshaking) is supported.
Port Type: RJ-45
Cable: Cat 5, 10/100 Base-T, auto negotiating port.
Infrared serial transmitter output ports
Port Type: 4 mm x 1.35 mm Barrel power jack connector
5V DC, 120-230V AC, 50/60 Hz
S-­‐232)
5   R XD   ( RS-­‐232)
S-­‐232)
6   T XD   ( RS-­‐232)
S-­‐232)
7   C TS   ( RS-­‐232)
8   R TS   ( RS-­‐232)
2
3
+
-
+
5
6
+
-
+
www.SavantSystems.com
009-0537-02
SSC-0007-10
7
Savant Confidential and Proprietary
012313
