M4 x 27 DIN7984
SCREW
FC TERMINAL
OR 15 x 1 mm
EK-Quantum Vector Strix RTX 3080/3080Ti/3090 Active Backplate
comes with its own terminal, meaning the original terminal, along
with two (2) 15 x 1 O-rings, on the EK-Quantum Vector Strix
3080/3080Ti/3090 water block has to be removed.
Unscrew the three (3) M4 x 27 DIN7984 screws and detach the
terminal from the water block.

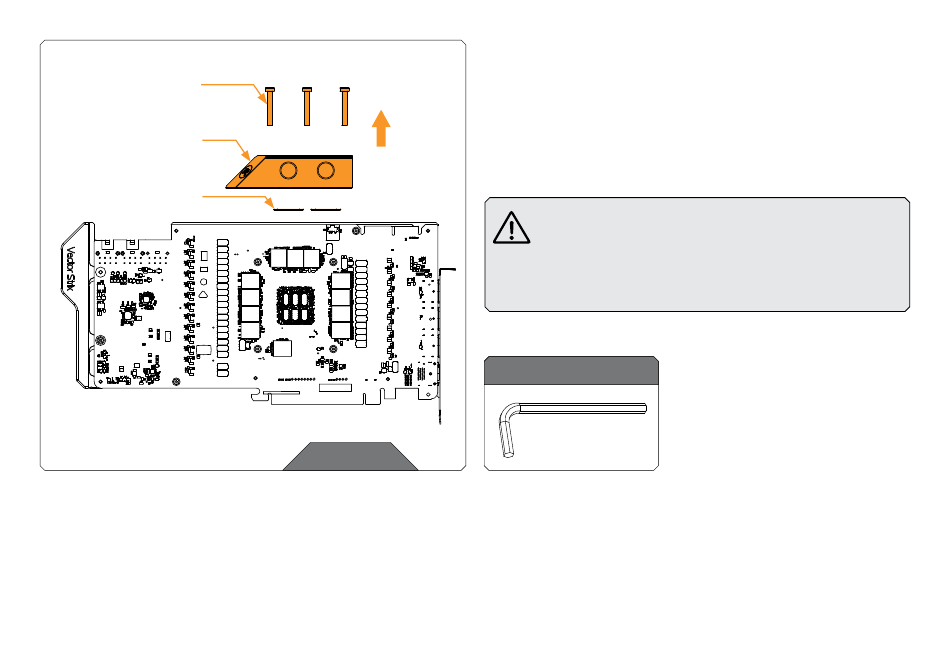

The procedure of terminal detachment is shown in the image.
For this Step, you will need:
STEP 1
- 8 -
Attention!
In case the EK-Quantum Vector Strix 3080/3080Ti/3090
water block is already filled with coolant, empty the
content of the water block before continuing with this
step. Be careful that the coolant that remained in the
water block does not come in contact with the GPU!
Allen Key 2.5 mm
