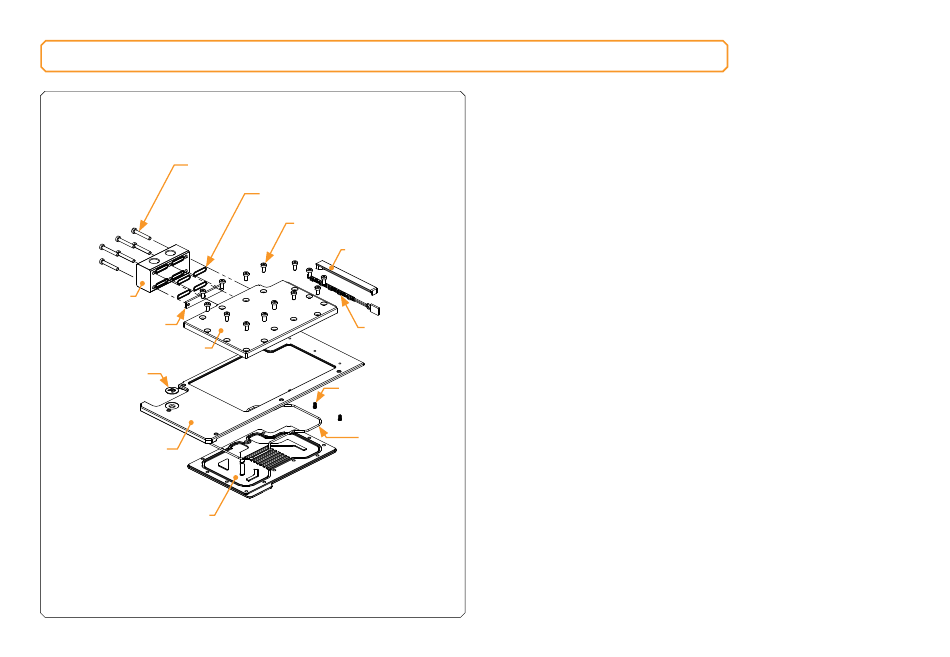

ACTIVE BACKPLATE SPECIFICATIONS AND MAIN PARTS

M4 x 27 DIN7984 SCREW
AB TERMINAL
TERMINAL METAL PLATE
TOP PLATE (PLEXI/ACETAL)
EK BADGE
ALU BACKPLATE
COLDPLATE (NICKEL)
TERMINAL O-RING 15 x 1 mm
M4 x 8 DIN7984 SCREW
ACETAL STANDOUT
D-RGB LED STRIP
(OPTIONAL)
M2.5 x 6 AX1 SCREW
MAIN O-RING
142 x 2 mm
Technical Specifications:
Dimensions (L x H x W): 281 x 154 x 33.3 mm
D-RGB (Addressable RGB) Cable Length: 500 mm
D-RGB LED Count: 9(Plexi Version)
D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground)
