INSTALLING FITTINGS AND TUBING

TUBING
EK- PLUG
G1/4

CONNECTING THE D-RGB LED STRIP

EK-FITTING
STEP 1
D-RGB HEADER
RGB HEADER
STEP 1
STEP 1

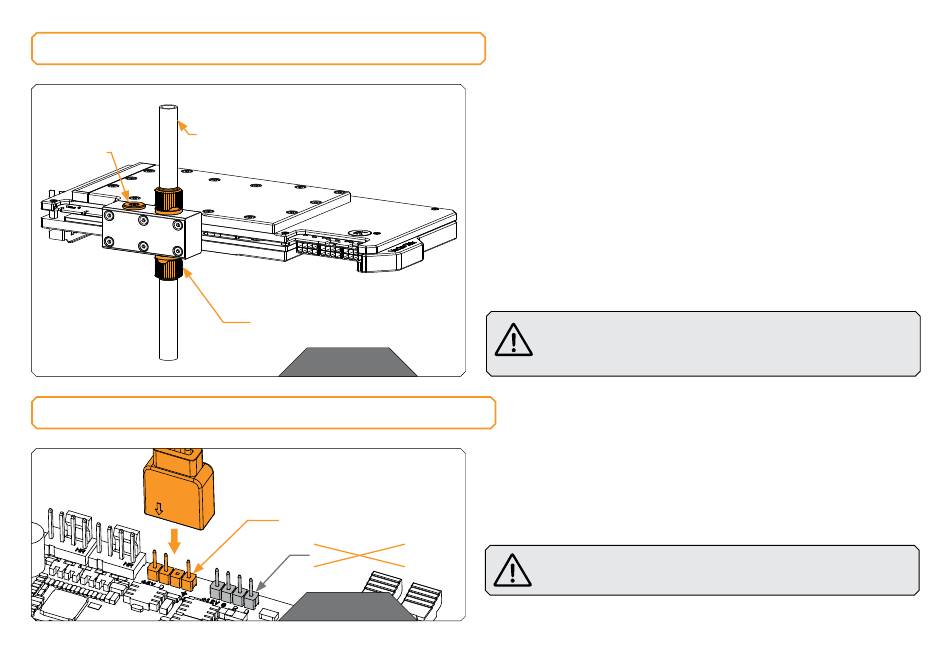

Screw-in two (2) G1/4 threaded male fittings. Attach liquid cooling
tubes and connect the water block to the cooling loop.
The pre-mounted terminal is positioned for the optimal flow in the
EK-Quantum Vector Strix RTX 3080/3080Ti/3090 water block and
in the EK-Quantum Vector Strix RTX 3080/3080Ti/3090 Active
Backplate. The terminal can be shifted for 180 degrees but by using
it so, the inlet and outlet ports are changed.
The plugged port is not mentioned to be used as inlet/outlet !
EK recommends using EK fittings with all EK water blocks.
CAUTION: When using connectors other than EK fittings,
pay special attention to the length of the fittings' male G1/4"
thread – 5 mm is the maximum G1/4" thread length allowed!
STEP 1
Plug the 4-pin D-RGB connector from the GPU water block to the
D-RGB Header on your motherboard or controller. The LED strip will
work only if the pin layout on the header is as follows: +5V, Data,
Empty, Ground.
Incorrect installation or installation to a wrong header can
damage the LED strip or the header itself!
