EK-Quantum Vector Strix RTX 3080 User Manual page 10

3080/3080Ti Version
F2
F1+F2
F1
Thermal Pad F 1 mm
F1
Thermal Pad F 1 mm +
F1+F2
Thermal Pad G 1.5 mm
G1.5 +F1
Thermal Pad F 2.0 mm
F2
3080/3080Ti Version
F2
G1.5
Thermal Pad G 1.5 mm
G1.5
Thermal Pad F 2 mm
F2
F1
G1.5 +F1
F1+F2
F1+F2
Thermal Pad F 2.0 mm
+ Thermal Pad F 1 mm
F2
STEP 3
STEP 3

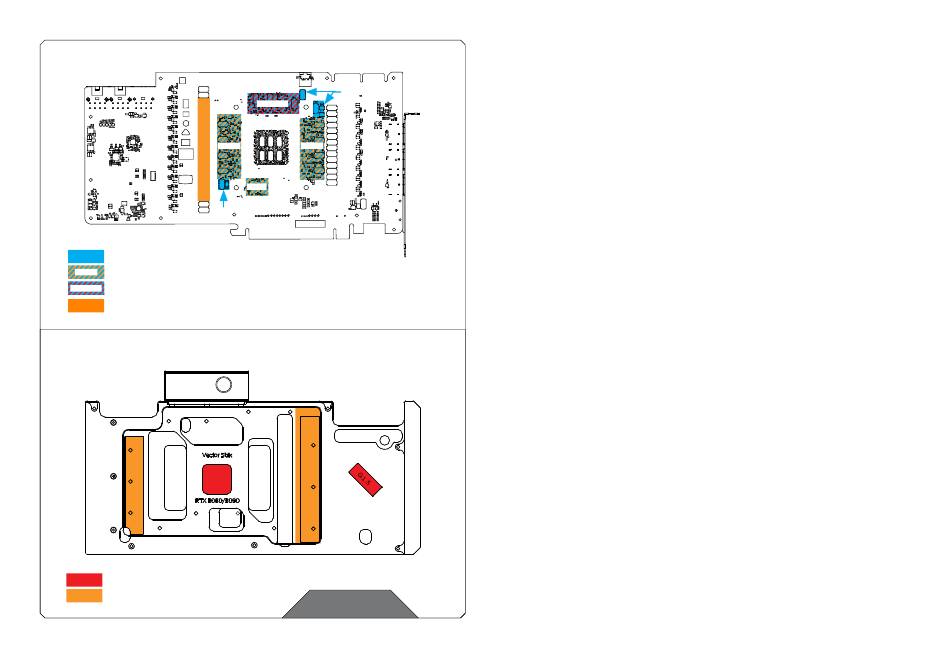

Once cut to size, thermal pads should be placed on the backplate/
PCB, as illustrated below.
First, place the thermal pads on to the PCB as illustatrated.
After placing the thermal pads on to the PCB, few more needs to be
placed on to the Backplate, as illustrated.
