Active backplate

Hide thumbs Also See for Vector Strix RTX 3080:

Table of Contents

3090 Version

Thermal Pad F 1 mm

Thermal Pad G 1.5 mm

G1.5

Thermal Pad F 2.0 mm

3090 Version

G1.5

Thermal Pad G 1.5 mm

G1.5

Thermal Pad F 2 mm

G1.5 G1.5 G1.5

STEP 3

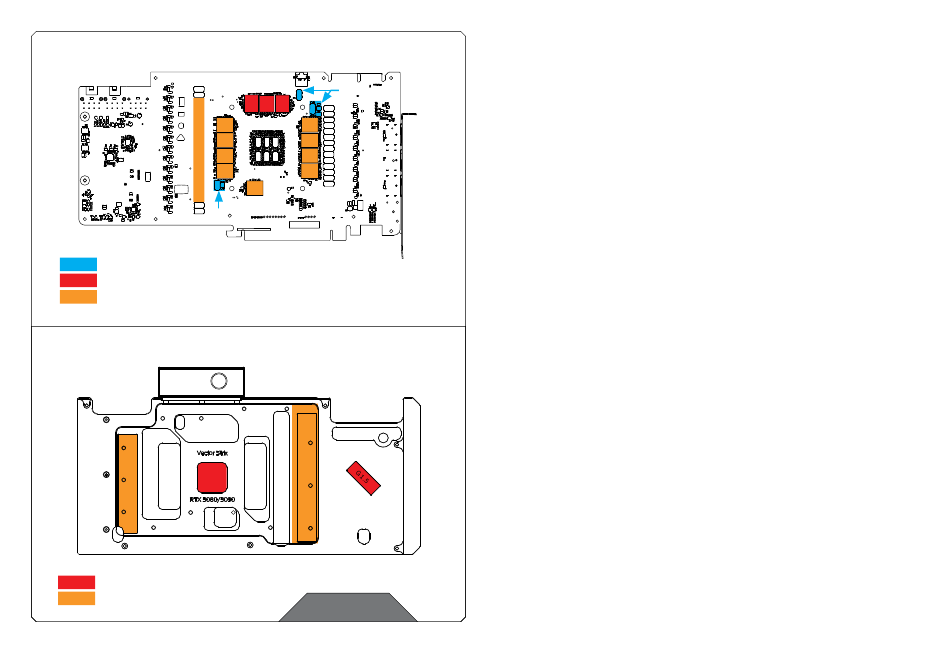

First, place the thermal pads on to the PCB as illustatrated.

After placing the thermal pads on to the PCB, few more needs to be

placed on to the Backplate, as illustrated.

- 11 -
