Stahl 8562/54-246 Series Operating Instructions Manual

Stahl 8562/54-246 Series Operating Instructions Manual

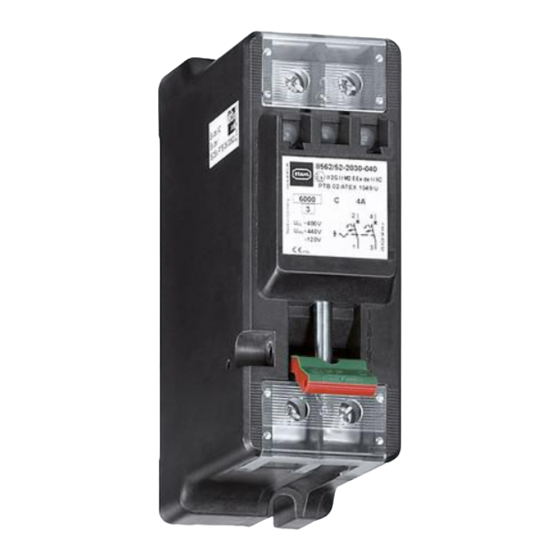

Residual current circuit-breaker with integral overcurrent protection
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

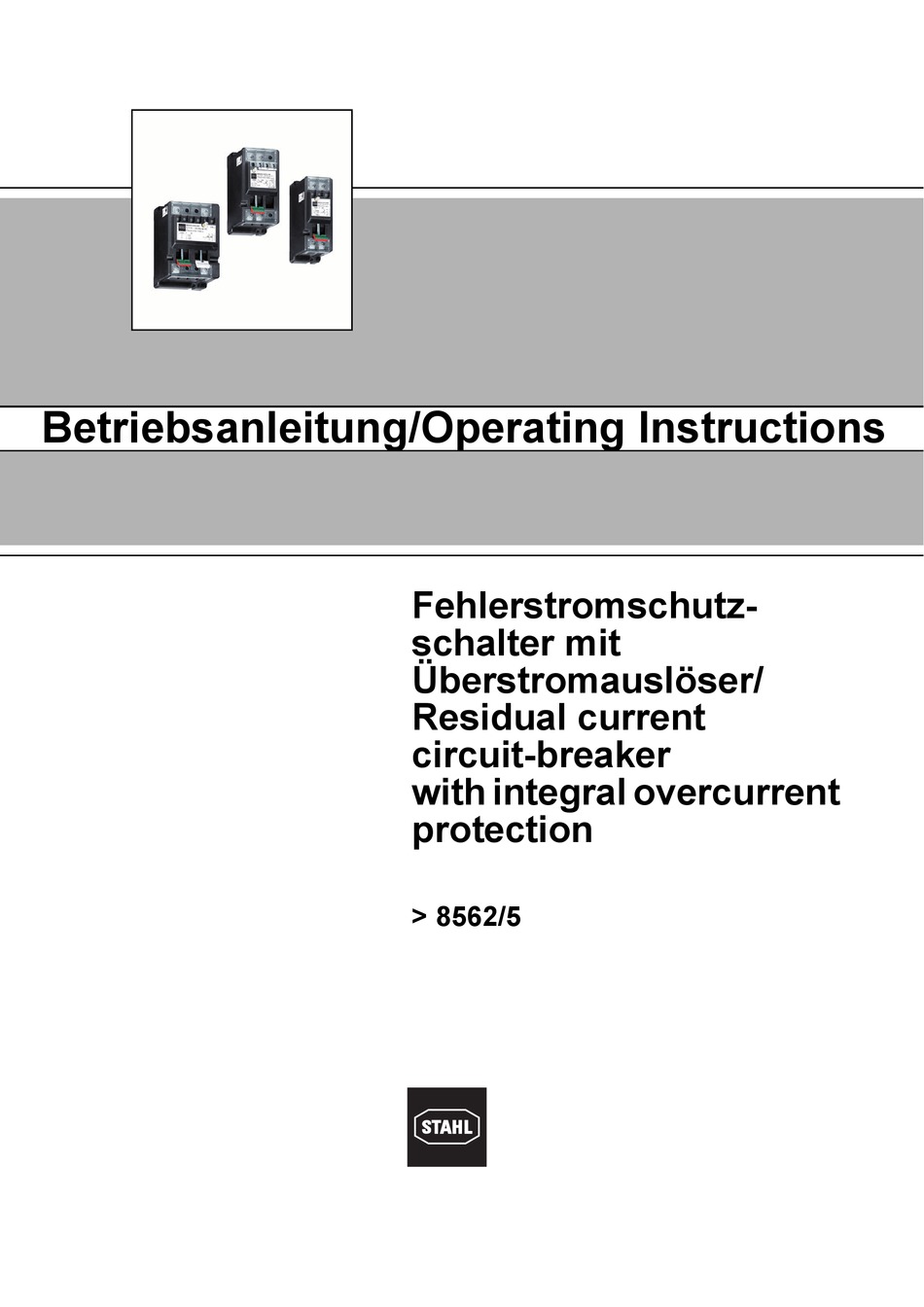

Betriebsanleitung/Operating Instructions
Fehlerstromschutz-
schalter mit 
Überstromauslöser/
Residual current 
circuit-breaker 
with integral overcurrent
protection
> 8562/5

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8562/54-246 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stahl 8562/54-246 Series

  • Page 1 Betriebsanleitung/Operating Instructions Fehlerstromschutz- schalter mit  Überstromauslöser/ Residual current  circuit-breaker  with integral overcurrent protection > 8562/5...
  • Page 3 Betriebsanleitung Fehlerstromschutz- schalter mit  Überstromauslöser > 8562/5...
  • Page 4: Table Of Contents

    Anordnung und Montage ..................8 Installation ......................10 Inbetriebnahme ....................11 Instandhaltung .....................11 Transport und Lagerung ..................12 Entsorgung ......................12 EG-Konformitätserklärung ...................13 Allgemeine Angaben 2.1 Hersteller R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Tel: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...
  • Page 5: Sicherheitshinweise

    Die Konformität zu Normen und Bestimmungen kann den entsprechenden Zertifikaten und der Herstellererklärung (z.B. EG-Konformitätserklärung) entnommen werden.  Diese Dokumente können auf unserer Homepage www.stahl-ex.com abgerufen werden.  Die Geräte sind für den Einsatz in explosionsgefährdeten Bereichen der Zonen 1 und 2 zugelassen.
  • Page 6: Technische Daten

    Technische Daten Technische Daten 8562/54-246.-...  8562/5 8562/54-247.-...  8562/54-248.-... Explosionsschutz Gasexplosionsschutz ATEX E II 2 G Ex d e IIC Gb E II 2 G Ex d e IIC Gb E I M 2 Ex d e I Mb E I M 2 Ex d e I Mb IECEx Ex d e IIC...
  • Page 7 Technische Daten 8562/54-246.-...  8562/5 8562/54-247.-...  8562/54-248.-... Auslösecharakteristik Auslösebänder B-, C- und D-Charakteris Selektivitätsklasse 3 (nach IEC/EN 60898) 3 (nach IEC/EN 60898) 149915 / 8562606300 Fehlerstromschutzschalter mit 2012-07-03·BA00·III·de·06 Überstromauslöser 8562/5...
  • Page 8 Technische Daten Bemessungsschaltvermögen Pole Reihe mit 6 kA Reihe mit 10 kA Reihe mit 25 kA Span- Strom Span- Strom Span- Strom nung (kA) nung (kA) nung (kA) AC  1 - 2 230 / 230 / gem. IEC/EN 60898 AC ...
  • Page 9 Technische Daten Backup-Schutz durch vorgeordnete Sicherung Kurzschlussschutz Vorgeordnete Sicherung Typ gG Leistungsschalter für Auslösecharakteristik B, C Bemessungs- min. Bemessungsbetriebsstrom [A] max. betriebsstrom I Bemessungsbetriebs- strom [A] 8562/5 100* *) nur für Typ 8562/54-2465-160-4; 8562/54-2475-160-4; 8562/54-2480-160 Umgebungstemperatur - 20 ... + 60 °C Bei abweichendem Temperaturbereich bitte Korrekturfaktor beachten! Korrekturfaktor Korrekturfaktoren für die von 30 C abweichenden Umgebungstemperaturen...
  • Page 10: Anordnung Und Montage

    – –  Bei abweichenden Betriebsbedingungen nehmen Sie bitte Rücksprache mit dem  Hersteller. Weitere technische Daten finden Sie im STAHL-Katalog, bzw. erhalten Sie auf Anfrage.  Die Temperaturklasse ist abhängig von den Einbauverhältnissen des Schutzgehäuses.  Tauschen Sie den Leitungsschutzschalter nach Ablauf der Lebensdauer aus, um die Schutzfunktion weiterhin zu gewährleisten.
  • Page 11 Anordnung und Montage 7.2 Maßzeichnungen Maßzeichnungen (alle Maße in mm) - Änderungen vorbehalten ~125 ~125 1,50 5,50 1,50 97,50 97,50 12465E00 12464E00 8562/54-..., 1-polig + N 8562/54-..., 1-polig + N mit Hilfskontakt ~125 ~125 97,50 97,50 12466E00 12467E00 8562/54-..., 2-polig 8562/54-..., 2-polig mit Hilfskontakt ~125 97,50...
  • Page 12: Installation

    Installation Installation 8.1 Netzanschluss Führen Sie den Leitungsanschluss mit besonderer Sorgfalt durch. Stellen Sie durch geeignete Auswahl der verwendeten Leitungen sowie durch die Art der Verlegung sicher, dass die maximal zulässigen Leitertemperaturen nicht überschrit- ten werden. Halten Sie zur Sicherstellung der Kriechstrecke beim Abisolieren die Länge von 10, 17 bzw.
  • Page 13: Inbetriebnahme

    Inbetriebnahme 8.3 Geräteschaltpläne Schaltbilder 07606E00 07621E00 1-polig + N 2-polig 11536E00 15104E00 Hilfskontakt 1 W Hilfskontakt 2 W 98 06 12218E00 12219E00 12469E00 07618E00 Fehlersignalkontakt 1 W Hilfskontakt 1 S Hilfskontakt 1 W Koppelrelais mit Resetfunktion für  Fehlersignalkontakt 1 S Fehlersignalkontakt 1 W Hilfskontakt 1 S Fehlersignal...
  • Page 14: Transport Und Lagerung

    Transport und Lagerung  Die Funktionsprüfung muss regelmäßig, mindestens einmal pro Halbjahr, durchgeführt werden, sofern nicht andere regionale oder anwenderspezifische zusätzliche Prüfungen vorgegeben sind.  Beachten Sie auch die geltenden nationalen Bestimmungen im Einsatzland! Überprüfen Sie im Rahmen der Wartung: ...
  • Page 15: Eg-Konformitätserklärung

    EG-Konformitätserklärung 13 EG-Konformitätserklärung 149915 / 8562606300 Fehlerstromschutzschalter mit 2012-07-03·BA00·III·de·06 Überstromauslöser 8562/5...
  • Page 16 Operating Instructions Residual current  circuit-breaker  with integral overcurrent protection > 8562/5...
  • Page 17 Installation ......................10 Commissioning ....................11 Maintenance ......................11 Transport and Storage ..................12 Disposal .......................12 EC Declaration of Conformity ................13 General Information 2.1 Manufacturer R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Tel: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...
  • Page 18: Safety Instructions

    (e.g. EC Declaration of Conformity).  These documents are available for download in the download area on the internet page www.stahl-ex.com.  The devices are approved for use in hazardous areas of Zones 1 and 2.
  • Page 19: Technical Data

    Technical Data Technical Data Type 8562/5 8562/54-246.-... 8562/54-247.-... 8562/54-248.-... Explosion protection Gas explosion protection ATEX E II 2 G Ex d e IIC Gb E II 2 G Ex d e IIC Gb E I M 2 Ex d e I Mb E I M 2 Ex d e I Mb IECEx Ex d e IIC...
  • Page 20 Technical Data 8562/54-246.-...  Type 8562/5 8562/54-247.-...  8562/54-248.-... Tripping characteristic curves Tripping characteristic curves marginal characteristic measured in cold status Multiple of rated current 12463E02 08903E02 11514E02 Selectivity class 3 (acc. to IEC/EN 60898) 3 (acc. to IEC/EN 60898) 149915 / 8562606300 Residual current circuit-breaker with 2012-08-16·BA00·III·en·06...
  • Page 21 Technical Data Rated switching capacities Poles Series with 6 kA Series with 10 kA Series with 25 kA Vol- Cur- Vol- Cur- Vol- Cur- tage rent tage rent tage rent (kA) (kA) (kA) AC acc. to  1 - 2 230 / 230 / IEC/EN 60898...
  • Page 22 Technical Data Correction factors Correction factors for ambient temperatures other than 30 °C 10889E00 10887E00 10888E00 Terminals Main contacts 1.5 ... 10 mm clamp terminals Auxilliary contacts 1.5 mm clamp terminals Material Enclosure Epoxy resin 149915 / 8562606300 Residual current circuit-breaker with 2012-08-16·BA00·III·en·06 integral overcurrent protection 8562/5...
  • Page 23: Arrangement And Assembly

    250 mW  Please contact the manufacturer if operating conditions are non-standard. Further technical data is given in the STAHL catalogue or is available upon request.  The temperature class depends upon where the protective enclosure is installed. ...
  • Page 24 Arrangement and Assembly 7.2 Dimensional Drawings Dimensional Drawings (All Dimensions in mm) - Subject to Alterations ~125 ~125 1,50 1,50 5,50 97,50 97,50 12465E00 12464E00 8562/54-..., 1 pole + N 8562/54-..., 1 pole + N with aux. contact ~125 ~125 97,50 97,50 12466E00...
  • Page 25: Installation

    Installation Installation 8.1 Main Connection Connect the cables with particular care. Choose suitable cables and route them accordingly to ensure that the maximum  permissible conductor temperatures are not exceeded. To ensure that creepage distances are maintained remove precisely 10, 17 or 21 mm of insulation (see chapter “Rated connection cross-section“).
  • Page 26: Commissioning

    Commissioning 8.3 Connection diagrams Circuit diagrams 07606E00 07621E00 1-pole+N 2-pole 11536E00 15104E00 Auxiliary contact 1 W Auxiliary contact 2 W 98 06 12469E00 12218E00 07618E00 12219E00 Fault signalling contact Auxiliary contact 1 S Auxiliary contact1 W Connecting relay 1 W with reset  Fault signalling ...
  • Page 27: Transport And Storage

    Transport and Storage  The function test must be performed regularly, at least once semiannually, as long as there are no other regional or customer-specific requirements for additional testing.  Observe the relevant national regulations in the country of use! The following items must be checked as part of the maintenance schedule: ...
  • Page 28: Ec Declaration Of Conformity

    EC Declaration of Conformity 13 EC Declaration of Conformity 149915 / 8562606300 Residual current circuit-breaker with 2012-08-16·BA00·III·en·06 integral overcurrent protection 8562/5...
  • Page 30 149915 / 8562606300 2012-08-16·BA00·III·de/en·06...

This manual is also suitable for:

8562/54-247 series8562/54-248 series
