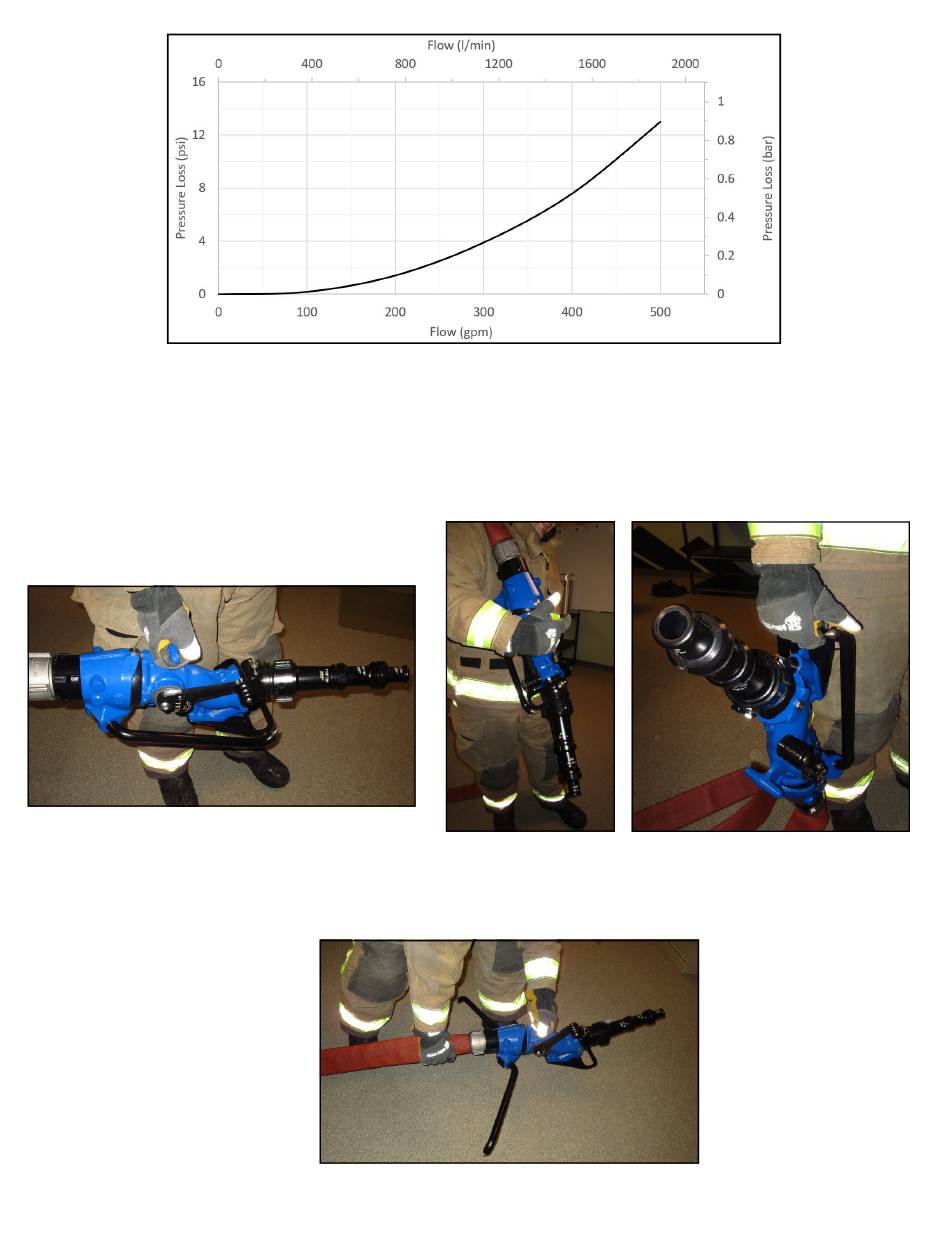

4.5
PRESSURE LOSS
5.0
DEPLOYMENT OF BLITZTAC PORTABLE MONITOR
It is the responsibility of the Authority Having Jurisdiction (AHJ) to determine physical capabilities and suitability for an individual's use of
this equipment.
5.1
CARRYING WITH AN UNCHARGED HOSE
On a preconnected hose line the monitor may be carried by the T-shaped handle, over the shoulder, or by the front handle with the legs
folded as illustrated.
5.2
CARRYING WITH A CHARGED HOSE
On a charged hose the BLITZTAC portable monitor may be carried by holding the T-shaped handle located on top of valve body as
shown. Shut-off valve handle should be locked in the closed position to keep the flow valve from inadvertently opening.
©Copyright Task Force Tips LLC 2021
Figure 4.5
Figure 5.1
Figure 5.2
10
LIX-750 March 11, 2021 Rev00
