INERTIAL SENSOR EVALUATION SYSTEM SETUP

DOWNLOADING ALL FILES TO A PC

Before proceeding with the installation routine, you may wish
to first download all files included on the Analog Devices Sensor
Eval CD-ROM to a local folder on the host PC. This may make
installation faster, and is a recommended troubleshooting step if
you are experiencing problems with installation. Otherwise, you
can install files directly from the CD-ROM. The steps in this user
guide assume you are working directly from the CD-ROM.
If you are able to run the Analog Devices ISEB system, you can
skip the LabVIEW and driver installation because these are
already installed, and proceed directly to the COM Port
Verification section.

INSTALLING LabVIEW FILES

The Inertial Sensor Evaluation GUI was developed using
LabVIEW and although the GUI is a standalone executable file,
it requires installation of the LabVIEW and VISA run-time
engines. Follow these steps for installation:
1. To run the software installation routine, double-click the
LabVIEW Run Time Install.exe file located in the
LabVIEW Run Time Installation folder on the included

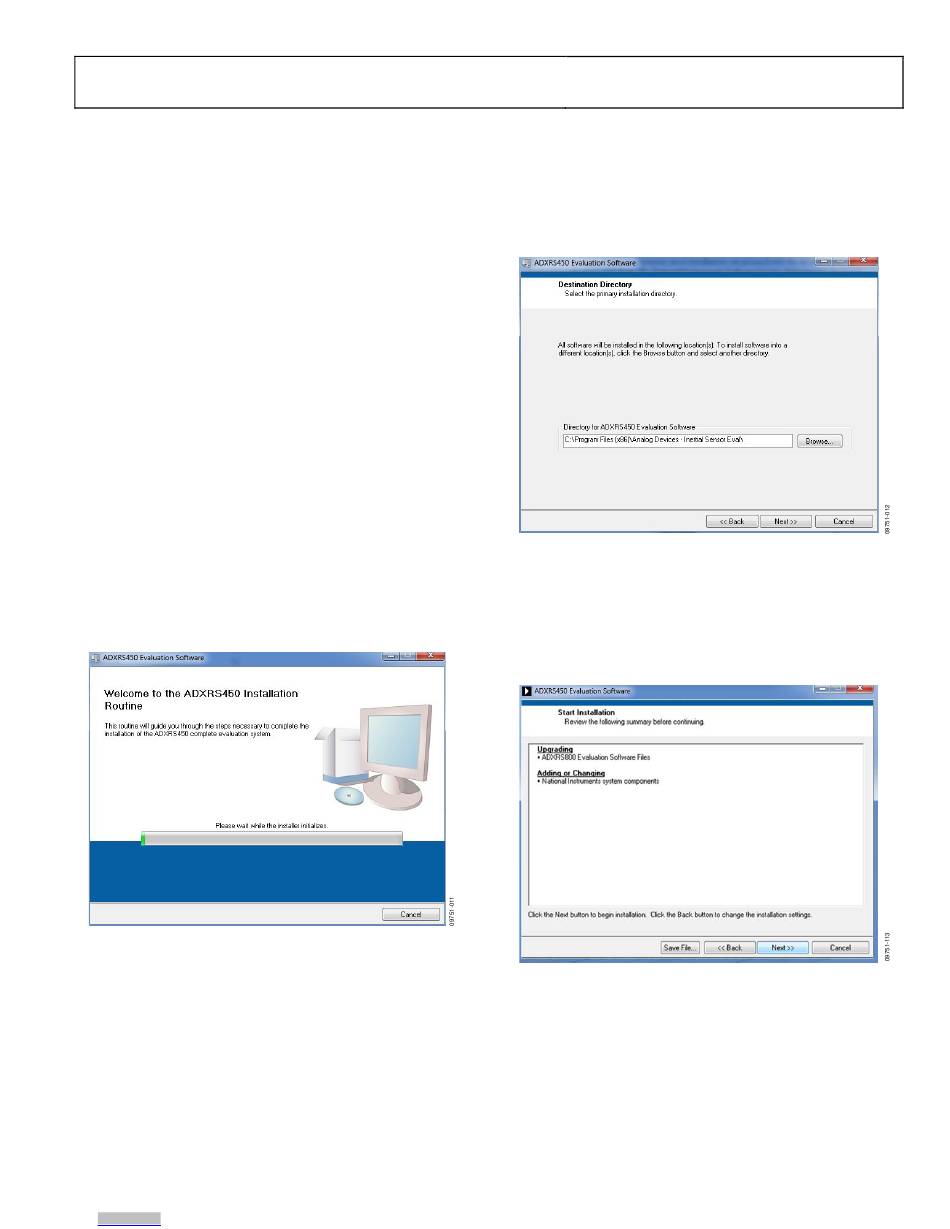

CD. The window shown in Figure 2 is displayed.
Depending on your version of Windows®, you may be
prompted to allow the program to access your computer's
settings.
Figure 2. ADXRS450/ADXRS453
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
Evaluation Software Installation Welcome
2. Select the destination directory. The installer autopopulates
the names of the directories in which to store the software
GUI and required National Instruments products (see
Figure 3). You can change these directories; however, most
installations can proceed with the default values.
Figure 3. Destination Directory Selection
3. When you finish selecting a directory, click Next. The
National Instruments Software License Agreement is
displayed.
4. Read the license agreement before accepting it; then, click
Next. The installer lists the required components to install
on your PC (see Figure 4).
Figure 4. Start Installation (Listing Varies Based on PC Requirements)
