UG-260
Windows 7
1. From the Start menu, right click My Computer and select
Properties.
2. In the upper left corner of the window that opens, select
Device Manager, shown in Figure 12. Windows 7 may
request that you allow access to this panel.
3. Select Device Manager to look up the assigned COM port
of the ISEB hardware.
The Device Manager window should look like the window
shown in Figure 10.

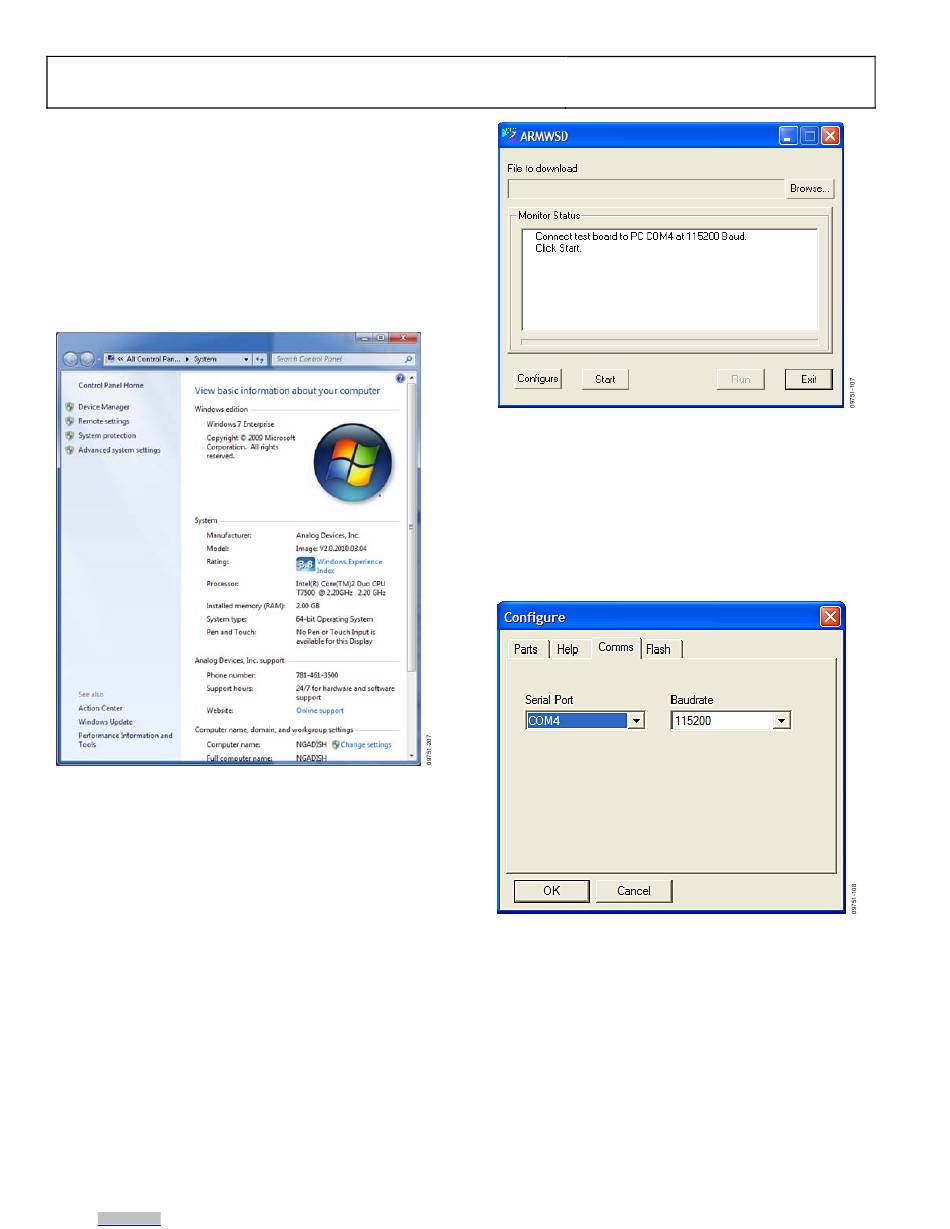

Figure 12. Windows 7 System Properties

INSTALLING THE LATEST ISEB FIRMWARE

The latest ISEB firmware is included on the installation CD. To
successfully use the ISEB evaluation hardware, this firmware
must be flashed to the ISEB controller. The installation CD
contains the firmware itself and the utility that allows you to flash a
new version of the firmware onto the ISEB microcontroller. In
addition, as new firmware is made available, it can be downloaded
from the Analog Devices website (http://www.analog.com/iseb).
To flash the ISEB microcontroller, follow these steps:
1. Ensure that the ISEB is connected to and detected by the
PC. The COM port on which the device is recognized
must also be obtained, as mentioned in the COM Port
Verification section.
2. Run the ARMWSD.exe program located in the /Firmware
Utility/ folder on the CD. This is the GUI for loading
firmware onto the microcontroller; a screenshot is shown
in Figure 13.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Figure 13. ISEB ARMWSD Firmware Downloader
3. Click Browse... and find the /Firmware Utility/ folder on
the CD. Select the ADXRS450 - ADXRS800 -
Firmware.hex file and click Open.
4. Click Configure to display the box shown in Figure 14.
The downloader file should be configured for the
microcontroller on the ISEB. The only option you may need to
change is the COM port. You can select the correct port from
the Serial Port menu on the Comms tab (see Figure 14).
Figure 14. Selecting the Correct COM Port for the Downloader
When the COM port is selected, click OK to accept the changes
and go back to the ARMWSD window (shown in Figure 13).
Rev. 0 | Page 6 of 20
Evaluation Board User Guide
ADuC7026
