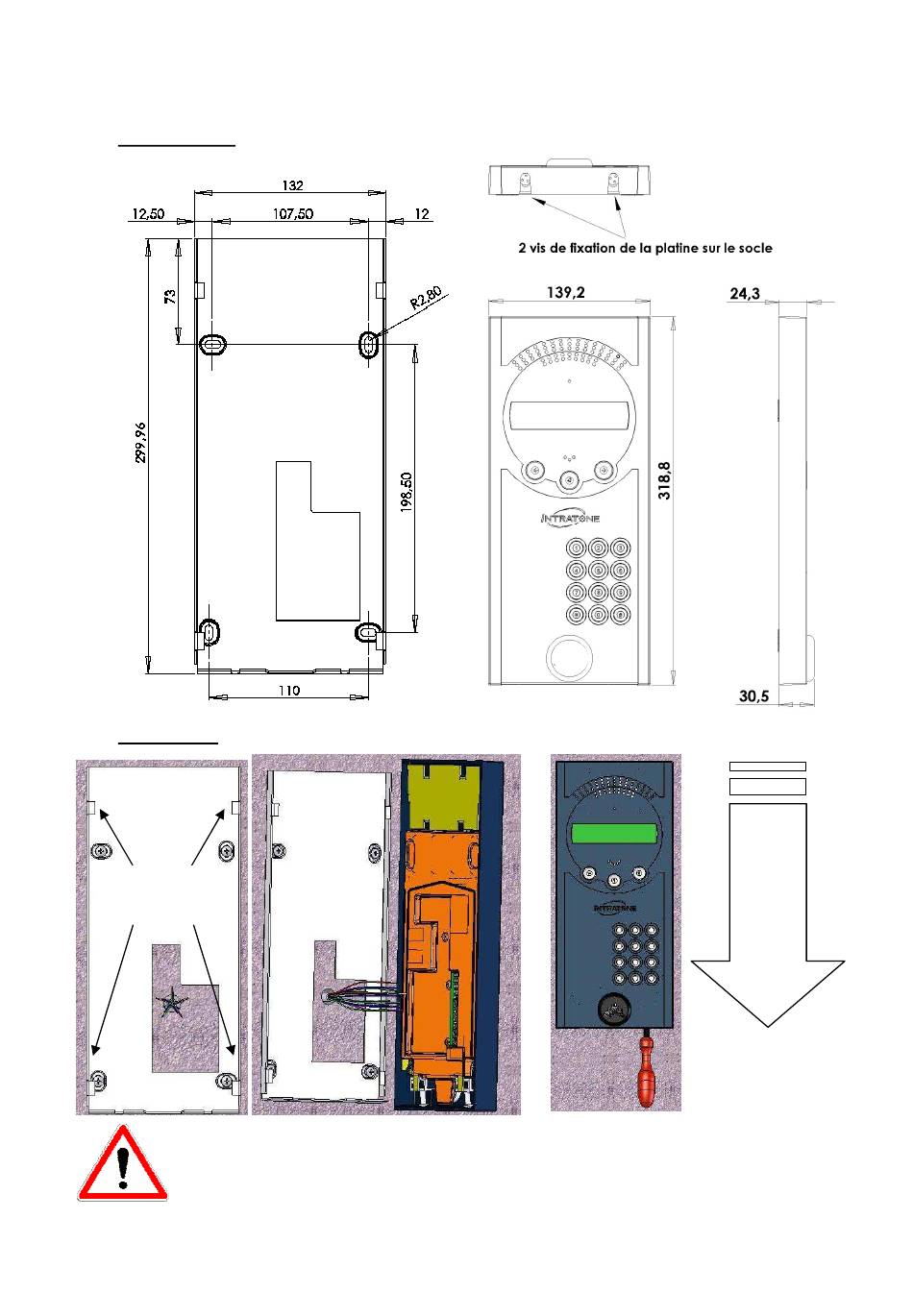

DIMENSIONS AND ASSEMBLY

D
A)
IMENSIONS
A
B)
SSEMBLY
Panel fixing
points
Do not trap cables when closing:
risk of cutting them when tightened.
EN-V233 – 5003 – AB Installation and use of the EEN-PICV Intracode Visio call panel
Slide
to
close
AND
Hold the call
panel against the
wall while
screwing it on
Page 3 / 11
