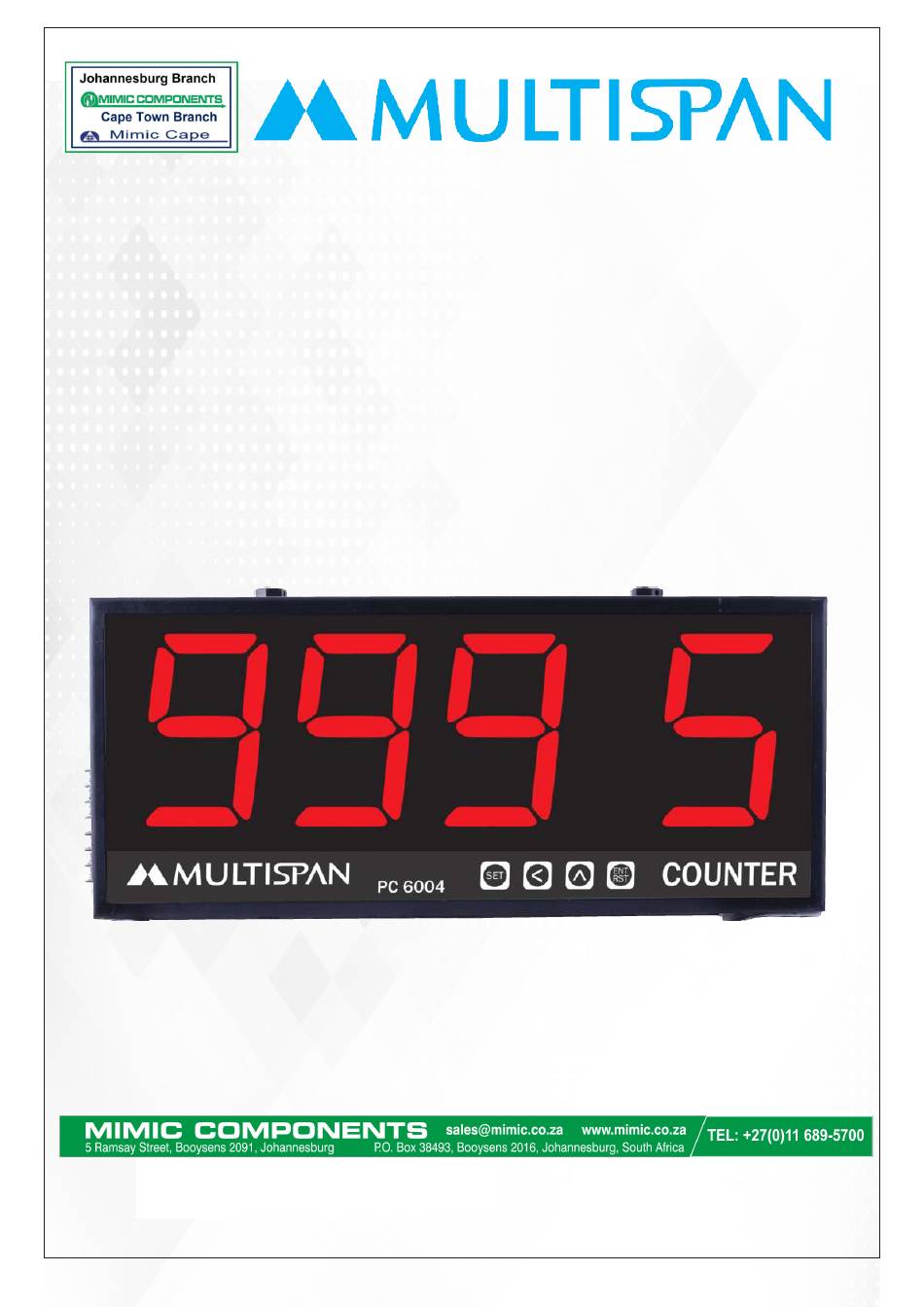

- Page 1 ProductManuals for Jumbo Display Process Indicators: PC-6004, PC-6006 & PIC-6004A...
-
Page 2: ProductManual
ProductManual JumboDisplay PC-6004... -
Page 3: Technical Specification

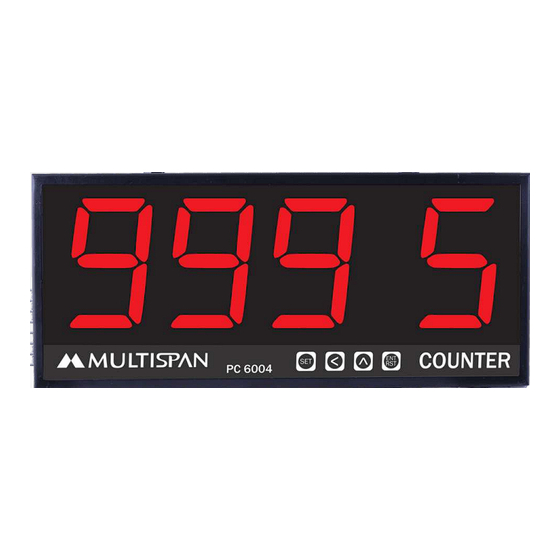

MODEL: PC-6004 TechnicalSpecification PC-6004 Model No Micro controller based, Single display Description Display 4 Digit 7 Segment 4” Red Led Display Size 165(H) X 380(W) X 50(D)mm Input Proximity-NPN/ PNP & Micro Switch Power Supply 100 To 270V AC, 50/60 Hz Approx 4 VA... -
Page 4: User Configuration
MODEL: PC-6004 UserConfiguration Presskey+PowerOnInstrument VerySlow,Slow,Medium,Fast S L O W ChangeSpeedSelectKey ToSaveParameterPowerOffInstrument ConnectionDiagram www.multispanindia.com Input: Proxi NPN/PNP Range: 0 To 9999 Count MICRO Switch: M/S Connection 4 & 6 +24V RESET 270V AC 50/60 Hz Made in India PC-6004 Page-2... - Page 5 MODEL: PC-6004 Note: 1). Please consult support engineers for sensing area size for proxy to sense. 2). Please ensure proper sensing area size before installing proxy sensor in your equipment. 3). Sensing area must be equal or more than the proxy head size.
-
Page 6: TestCertificate
Q.A. Engineer WARRANTY Multispan Warrants that the product supplied here under this Test Certificate is guranteed against our design, our manufacturing and our workmanship defects for a time period of 12 Months from the date of product dispatch from our permises. -
Page 7: Safety Precautions
MODEL: PC-6004 SafetyPrecautions 1)Allsafetyrelatedcodifications,symbolsandinstructionsthatappearinthisoperatingmanualor ontheequipmentmustbestrictlyfollowedtoensurethesafetyoftheoperatingpersonnel aswellastheinstrument. 2)Ifalltheequipmentisnothandledinamannerspecifiedbythemanufacturer, itmightimpairtheprotectionprovidedbytheequipment. 3)Readcompleteinstructionspriortoinstallationandoperationoftheunit. Riskofelectricshock, HazardWarning WarningGuidelines 1)TopreventtheriskofelectricshockpowersupplytotheequipmentmustbekeptOFFwhiledoing thewiringarrangement. 2)Donottouchtheterminalswhilepowerisbeingsupplied.Toreduceelectromagneticinterference, usewirewithadequateratingandtwistsofthesameofequalsizeshallbemadewithshortest connection. 3)Abetteranti-noiseeffectcanbeexpectedbyusingstandardpowersupplycableforthe instrument. InstallationGuidelines 1)Donotallowpiecesofmetal,wireclippings,orfinemetallicfillingsfrominstallationtoenterthe productorelseitmayleadtoasafetyhazardthatmayinturnendangerlifeorcauseelectrical shocktotheoperator. 2)Useandstoretheinstrumentwithinthespecifiedambienttemperatureandhumidityranges asmentionedinthismanual. 3)Priortotheinstallationofthisproduct,theinstallationinstructionsmustbereadandcompletely understood.Keeptheseinstallationinstructionsinaneasilyaccessiblelocationforfuturereference. Properinstallationprocedurebyaqualifiedservicetechnicianmustbefollowed,asoutlinedin theseinstallationinstructions.Failuretodosocouldresultinpropertydamage,seriouspersonal injury,orevendeath. 4)Safetymeasuresmustbepracticedatalltimesduringtheassemblyofthisproduct. 5)Usepropersafetyequipmentandtoolsfortheassemblyproceduretopreventpersonalinjury Beawareofthemountingenvironment. 6)Ifdrillingand/orcuttingintothemountingsurface,alwaysmakesurethattherearenoelectrical wiresinwall. 7)Cuttingordrillingintoanelectricallinemaycauseseriouspersonalinjury. 8)Makesuretherearenowaterornaturalgaslinesinsidethewallwherethemountistobelocated. 9)Cuttingordrillingintoawaterorgaslinemaycauseseverepropertydamageorpersonalinjury. 10)Donotinstallnearsourcesofhighheat.Donotinstallonastructurethatispronetovibration, movementorchanceofimpact. -
Page 8: Mechanical Installation
MODEL: PC-6004 MechanicalInstallation www.multispanindia.com 0 1 2 3 Input: Proxi NPN/PNP Range: 0 To 9999 Count MICRO Switch: COUNTER M/S Connection 4 & 6 PC 6004 +24V RESET MODEL 270V AC 50/60 Hz DIMENSIONS 165mm 380mm 50mm 165mm Made in India 1)Theequipmentinitsinstalledstatemustnotcomeincloseproximitytoanyheatingsource, causticvapors,oilssteam,orotherunwantedprocessbyproducts. - Page 9 ProductManual JumboDisplay PC6006 PAGE 7...
- Page 10 MODEL: PC-6006 TechnicalSpecification COUNTER RESET PC 6006 Model PC-6006 MicroControllerBased,SingleSideDisplay 6Digit7SegmentLEDDisplay4”inredcolor Display Size 165(H)X570(W)X50(D)mm Input Proximity-NPN/PNP&MicroSwitch Output 1R1C/0,230VAC,5A PowerSupply 100TO270VAC,50/60Hz,Approx5VA Reset Frontandbackside Working 1).Whenpulsecomesfromsensor,DisplayindicatesʻCOUNTʼininstrument. 2).ForManualMode,settime=00.0sec.andforAutoResetMode,settime=00.1to99.9sec. 3).Whenprocessvalue=Setpoint,Relayenergise.RelayremainsONforAuto ResetTime.Iftimeissetat00.0sec.thenrelayremainsONuntilRSTkeyispressed. 4).IfthereisapowerfailurethelastreadingisstoredinthememoryandCounterstarts resumecountingfromthelaststoredvalue,whenpowerON. 5).TorestartCountingortoResetpressRSTkey.Displaywillshow000000andthe countingwillrestart. PC-6006 Page-8...
-
Page 11: ControlParameter
MODEL: PC-6006 ControlParameter PowerOnInstrument Count 0 0 0 0 0 0 Presskey SetCount S E t Presskey SetCountValue 0 0 0 0 0 0 Range:0to999999Count Press&KeytoChangeParameter Presskey RelayTime T I M E Presskey RelayTimeValue 0 0 .0 Range:00.0to99.9Second Press&KeytoChangeParameter Presskey Scale S C A L E Presskey... - Page 12 Q.A. Engineer WARRANTY Multispan Warrants that the product supplied here under this Test Certificate is guranteed against our design, our manufacturing and our workmanship defects for a time period of 12 Months from the date of product dispatch from our permises.
- Page 13 MODEL: PC-6006 ConnectionDiagram Relay +12V www.multispanindia.com Input: RESET Proxi NPN/PNP Range: 0 To 999999 Count Micro Switch: M/S Connection 5 & 7 270V AC 50/60 Hz Made in India Note: 1). Please consult support engineers for sensing area size for proxy to sense. 2).
- Page 14 MODEL: PC-6006 SafetyPrecautions 1)Allsafetyrelatedcodifications,symbolsandinstructionsthatappearinthisoperatingmanualor ontheequipmentmustbestrictlyfollowedtoensurethesafetyoftheoperatingpersonnel aswellastheinstrument. 2)Ifalltheequipmentisnothandledinamannerspecifiedbythemanufacturer, itmightimpairtheprotectionprovidedbytheequipment. 3)Readcompleteinstructionspriortoinstallationandoperationoftheunit. Riskofelectricshock, HazardWarning WarningGuidelines 1)TopreventtheriskofelectricshockpowersupplytotheequipmentmustbekeptOFFwhiledoing thewiringarrangement. 2)Donottouchtheterminalswhilepowerisbeingsupplied.Toreduceelectromagneticinterference, usewirewithadequateratingandtwistsofthesameofequalsizeshallbemadewithshortest connection. 3)Abetteranti-noiseeffectcanbeexpectedbyusingstandardpowersupplycableforthe instrument. InstallationGuidelines 1)Donotallowpiecesofmetal,wireclippings,orfinemetallicfillingsfrominstallationtoenterthe productorelseitmayleadtoasafetyhazardthatmayinturnendangerlifeorcauseelectrical shocktotheoperator. 2)Useandstoretheinstrumentwithinthespecifiedambienttemperatureandhumidityranges asmentionedinthismanual. 3)Priortotheinstallationofthisproduct,theinstallationinstructionsmustbereadandcompletely understood.Keeptheseinstallationinstructionsinaneasilyaccessiblelocationforfuturereference. Properinstallationprocedurebyaqualifiedservicetechnicianmustbefollowed,asoutlinedin theseinstallationinstructions.Failuretodosocouldresultinpropertydamage,seriouspersonal injury,orevendeath. 4)Safetymeasuresmustbepracticedatalltimesduringtheassemblyofthisproduct. 5)Usepropersafetyequipmentandtoolsfortheassemblyproceduretopreventpersonalinjury Beawareofthemountingenvironment. 6)Ifdrillingand/orcuttingintothemountingsurface,alwaysmakesurethattherearenoelectrical wiresinwall. 7)Cuttingordrillingintoanelectricallinemaycauseseriouspersonalinjury. 8)Makesuretherearenowaterornaturalgaslinesinsidethewallwherethemountistobelocated. 9)Cuttingordrillingintoawaterorgaslinemaycauseseverepropertydamageorpersonalinjury. 10)Donotinstallnearsourcesofhighheat.Donotinstallonastructurethatispronetovibration, movementorchanceofimpact. Maintenance 1)Theequipmentshouldbecleanedregularlytoavoidblockageofventilatingparts.
- Page 15 MODEL: PC-6006 MechanicalInstallation 9 9 9 9 9 9 Relay COUNTER PC-6006 +12V RESET MODEL DIMENSIONS 165mm 570mm 50mm 165mm 270V AC 50/60 Hz Made in India 1)Theequipmentinitsinstalledstatemustnotcomeincloseproximitytoanyheatingsource, causticvapors,oilssteam,orotherunwantedprocessbyproducts. 2)Donotconnectanythingtounusedterminals. PC-6006 Page- 13...
- Page 16 MODEL: PIC 6004A PROCESS INDICATOR CONTROLLER Mechanical Dimension PIC 6004A Front View Side View 4” Jumbo Display 4” Digit Hight Single side 162mm (H) 377mm (W) 49mm (D) Available in Single Side/Double Side Display Mounting Method : Wall Mounting Dual side 162mm (H) 377mm (W) 72mm (D) Available with White &...
- Page 17 O 0 0 0 (0000/000.0/ the date of product dispatch from our premises. Multispan understood. Keep these installation instructions in an undertakes the responsibility to replace/repair the faulty easily accessible location for future reference. Proper 00.00/0.000)
