MULTISPAN PI 38 Manual

TECHNICAL SPECIFICATION
FEATURES:
Elegant appearance and compact in size
Accurate and sturdy in operation
Very easy to operate
INPUT SPECIFICATION:
Voltage:
Input Types
Current:
0.1 Sec to 10.0 Sec
I/P Filter Time
Decimal point selectable:
Resolution
0.1, 0.01, 0.001, 0001
Range
-999 to 9999 (For all I/P)
Indication
±1% FSD ± 1 digit
Accuracy
(FSD - Full Scale Deflection)
DISPLAY AND KEY:
Display 4 digit, 7 segment, 0.8" RED LED
Keys
SET, SHIFT, INC
DIMENSION:
Size
48 (H) x 96 (W) x 26 (D) mm
45 (H) x 92(W) mm
Panel Cutout
POWER SUPPLY:
Supply
100 to 270V AC, 50-60Hz
Voltage
Power
2VA @ 230V AC MAX
Consuption
(VA Rating)

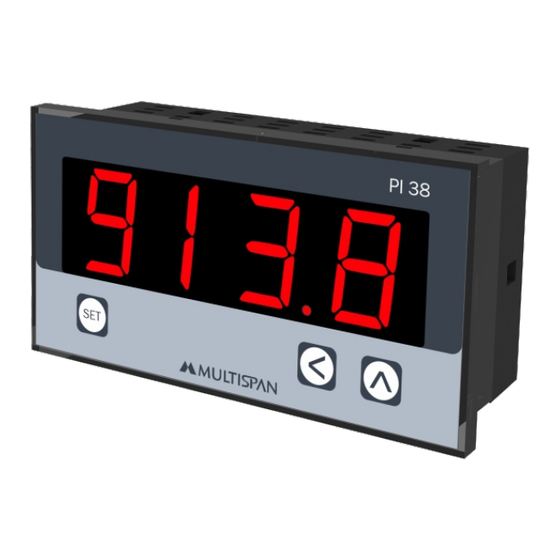

PROCESS INDICATOR
PI 38
0 to 10V DC
0 to 20mA DC,
4 to 20mA DC
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
IP-65 (Front side) As per IS/IEC
Protection Level
60529 : 2001
(As per request)
MECHANICAL INSTALLATION
Outline Dimension (mm)
96
4
PI 38
913.8
48
SET
TERMINAL CONNECTION
L N
1 2
Connection for voltage I/P
(0-10V DC)
4
Connection for current I/P
(4-20mA DC or
0-20mA DC)
Panel Cutout
Dimension (mm)
26
45
0/4-20
mA DC
-
+
3 4
5
3 4
92
0-10V
DC
+
5
Page -1
