MULTISPAN AVF-133 Manual

TECHNICAL SPECIFICATION

FEATURES
Separate display for Amp indication
Wiring System: 3Ø-4W, 3Ø-3W,1Ø-2W
Load Hour , RPM, Phase sequence by LED indication
INPUT
Voltage AC
Direct Voltage AC
Burden
Primary CT Ratio
Secondary Current Ac
Burden
Overload
Frequency
CALCULATED PARAMETERS
Voltage
Current
Frequency
Phase Sequence
Load Hour
ACCURACY
Class 0.5 (Standard)
AUXILIARY POWER SUPPLY
Power Supply
Burden

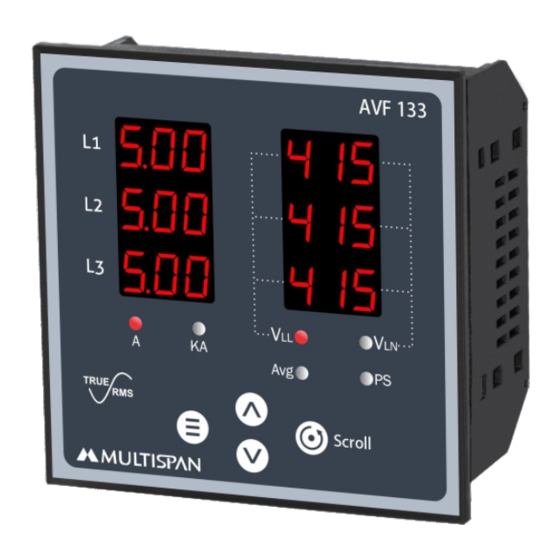

3 Phase VAF Meter
AVF-133
30 to 300V (L - N)
50 to 500V (L - L)
< 0.2 VA
Current AC
5 to 10000 Selectable
0.5 To 5 Amp
< 0.2 VA
Up to 6A Continuous
45.0 to 65.0 HZ
VLL ,VLN , Avg
All Phase Amp, Avg Amp
System Frequency
Indication
Up to 9999 Hr 59 min
100 to 270V AC,50/60Hz
4VA
DISPLAY, KEY & LED
Display
Key
LED Indication
ENVIRONMENTAL CONDITION
Working Temperature
Storage Temperature
Relative Humidity
Protection Leval
DIMENSION
Size (mm)
Panel Cutout

TERMINAL CONNECTION

20 19 18 17
L L
1
S S
S
1 1
2
Current: 0.5 To 5A AC
CAT III
Made in India
~
100
www.multispanindia.com
270V AC
50/60 HZ
!
4VA
L N
1 2 3 4
Please Refer page-2 for wiring connection

KEY OPERATION

FUNCTION
To enter in parameter setting mode
Operator mode:
To change page
Parameter Setting mode:
To increment value
To decrement value in
parameter setting mode.
To set the parameter value and
to be save and exit from menu.
Scroll & hold
3 Digit , 6 Line 7 Seg.
0.36" Red LED
Menu, Inc ,Dec , Scroll
A , KA , VLL , VLN , Avg,
PS
0 to 55°C
0 to 55°C
95 % RH Non - Condensing
IP-65 (Front side As per
IS/IEC 60529 : 2001)
96 (H) x 96 (W) x 55 (D) mm
92 (H) x 92 (W) mm
16 15 14 13 12
L
3
2
S
S S
1
2 2
CT Selection:
5/5 to 10KA/5
System:
3Ø-4W / 3Ø-3W /
Accuracy Class: 0.5
Voltage:
(L-L): 50-500V AC
(L-N): 30-300V AC
V V V
L 1 L 2 L
9
5 6 7 8
SYMBOL
+
11
1Ø-2W
N
3
10
Page 1
