OPERATING MANUAL
1 PHASE WATT METER
WM-11
ConnectionDiagram
WM-11
Technical Specification
Model
Display
Size (mm)
Panel Cutout
Voltage Input
Current Input
Active Power
(KW)
Power Supply
Frequency
Wiring
System
Protection
Level
(As Per Request)
Operating
Temperature
Relative
Humidity
20
19
18
17
16
WM 11-E3-N0
Range:
CAT III
Voltage : 30-300V AC
Current : 30mA To 5A AC
CT Selection up to 9999/5 Amp AC
Made in India
100
!
270V AC/DC
50/60 Hz, 3VA
L
N
1Amp
S1
5
1
2
3
4
Page - 1
WM-11
8 digit, 7 segment, 0.5" Red display
101 (H) X 101 (W) X 43 (D) mm
92 X 92 mm
30 To 300V AC VLN CAT III
30mA To 5 Amp or higher through external CT
0.000 Watt To 9999 KW
100 To 270V AC/DC,50/60Hz,Approx 3VA
45 To 65 Hz
1Ph-2W
IP-65 (Front side) As per IS/IEC 60529 : 2001
0°C To 50°C
Up to 95% RH Non Condensing
15
14
13
12
11
V
N
P
System:
1Ø-2W
Accuracy Class:
0.5
www.multispanindia.com
5Amp
S2
S1
S2
6
7
8
9
10
www.multispanindia.com
Advertisement
Related Manuals for MULTISPAN WM-11
Summary of Contents for MULTISPAN WM-11

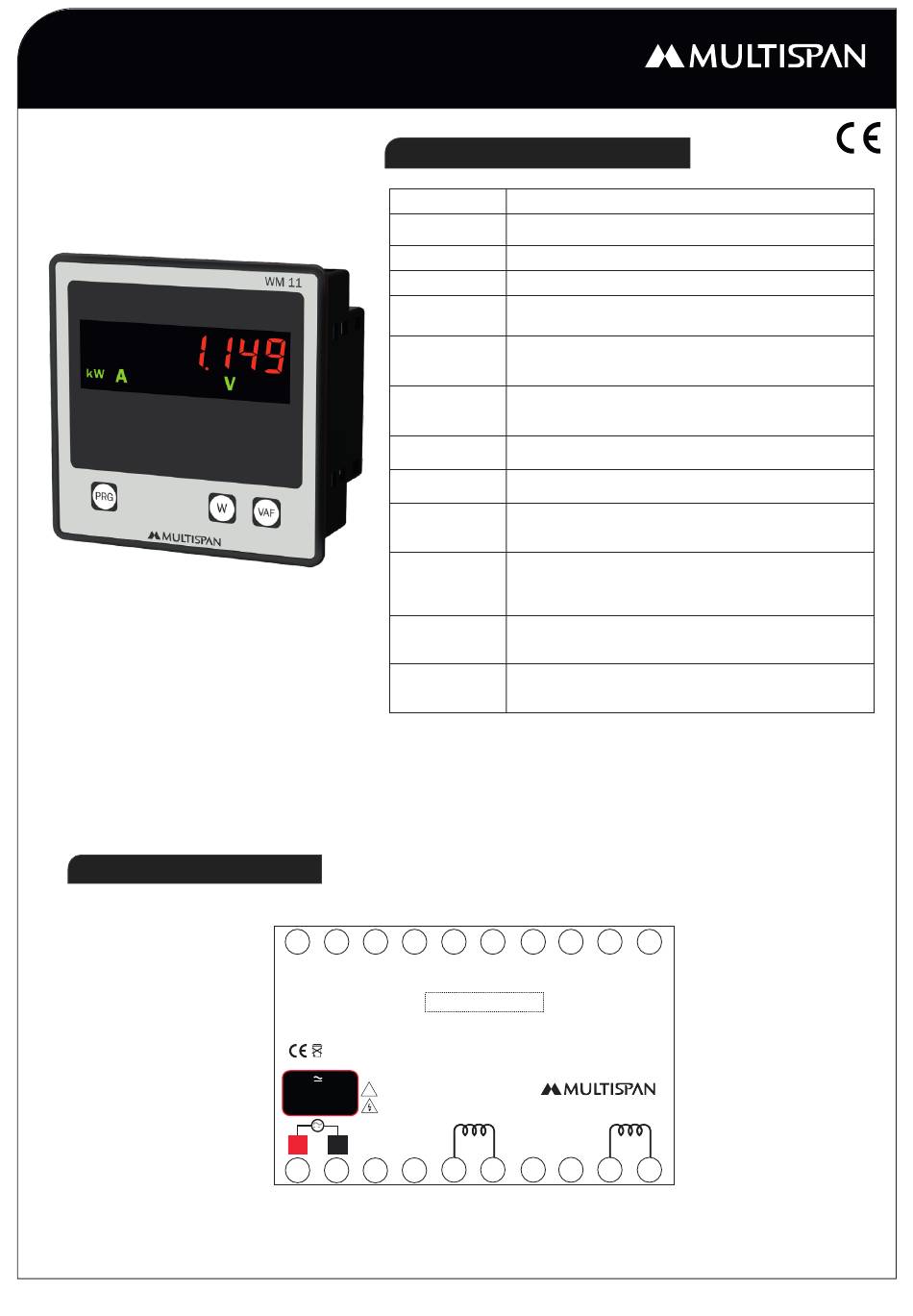

- Page 1 OPERATING MANUAL 1 PHASE WATT METER WM-11 Technical Specification Model WM-11 8 digit, 7 segment, 0.5” Red display Display Size (mm) 101 (H) X 101 (W) X 43 (D) mm Panel Cutout 92 X 92 mm Voltage Input 30 To 300V AC VLN CAT III...
- Page 2 EnergyManagementSystem To view Power ControlPanels GeneratorSet PARAMETER SETTING MODE PowerDistributionboards To Set Parameter Value Press For 5 Sec BuildingManagementSystem To Increment parameter value QualityControlSystem MotorControlPanel To Decrement parameter value EnergyAudit To Exit from parameter setting WM-11 Page - 2 www.multispanindia.com...
- Page 3 ‘ON’ or ‘OFF’ function. However this mains switch or circuit breaker must be installed at convenient place normally accessible to the operator. 3) Use and store the instrument within the specified ambient temperature and humidity ranges as mentioned in this manual. WM-11 Page - 3 www.multispanindia.com...
- Page 4 NOTE :- WM-11 www.multispanindia.com Page - 4...
