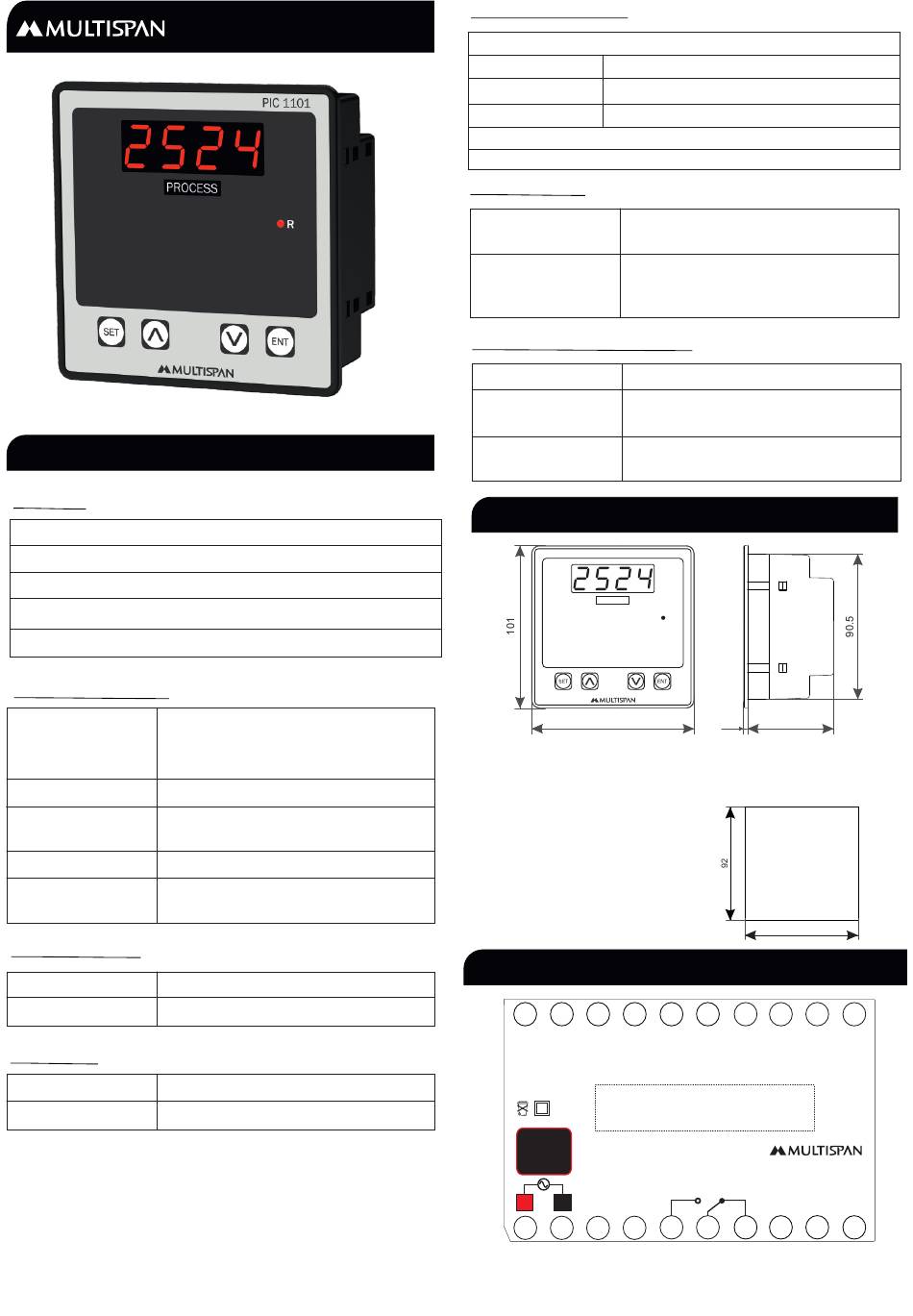

MULTISPAN PIC 1101 Manual

TECHNICAL SPECIFICATION
FEATURES
Two in depend programmable alarm output
Selectable digital filter time : 0.0 to 10.0 Sec
Input range selectable : -999 to 9999
Programmable retransmission O/P (Optional)
Transmitter Power Supply (Optional)
INPUT SPECIFICATION
Input Types
Voltage:
Current:
0.1 Sec to 10.0 Sec
I/P Filter Time
Resolution Decimal point selectable:
0.1, 0.01, 0.001, 0001
Range -999 to 9999 (For all I/P)
±1% FSD ± 1 digit
Indication
(FSD - Full Scale Deflection)
Accuracy
DISPLAY AND KEY
Display 4 digit, 7 segment, 0.56" RED LED
Keys SET, INC, DEC, ENT
DIMENSION
Size
101 (H) x 101 (W) x 54 (D) mm
Panel Cutout 92 (H) x 92(W) mm
PROCESS INDICATOR
PIC 1101
0 to 10V DC
0 to 20mA DC,
4 to 20mA DC
OUTPUT SPECIFICATION:
Relay Output
Relay 1 nos.
Relay Type 1 C/O (NO-C-NC)
Rating 5A, 230V AC
Transmitter Supply
24V DC
POWER SUPPLY
Supply
Voltage
Power
Consuption
(VA Rating)
ENVIRONMENT CONDITION
Operating Temp.
Relative Humidity
Protection Level
(As per request)
MECHANICAL INSTALLATION
PROCESS
101
FRONT VIEW
All dimensions are in mm
TERMINAL CONNECTION
20 19 18 17
-
+
O/P
24V DC
(Trans.)
Range: -999 To 9999 SELE.
Input: 0-10V DC,4-20mA DC,0-20mA DC
Output: 1R1C/O & 24V DC Trans.
Made in India
~
100
270V AC
50/60 Hz
L N
1 2 3 4
100 to 270V AC,50-60Hz
4VA @ 230V AC MAX
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
PIC 1101
R
2.5 54
RIGHT SIDE VIEW
Panel Cutout
92
16 15 14 13 12
-
+
I/P
0-10V
DC
www.multispanindia.com
RELAY-1
NO C NC
5 6 7 8 9
11
+
I/P
0/4-20
mA DC
10
